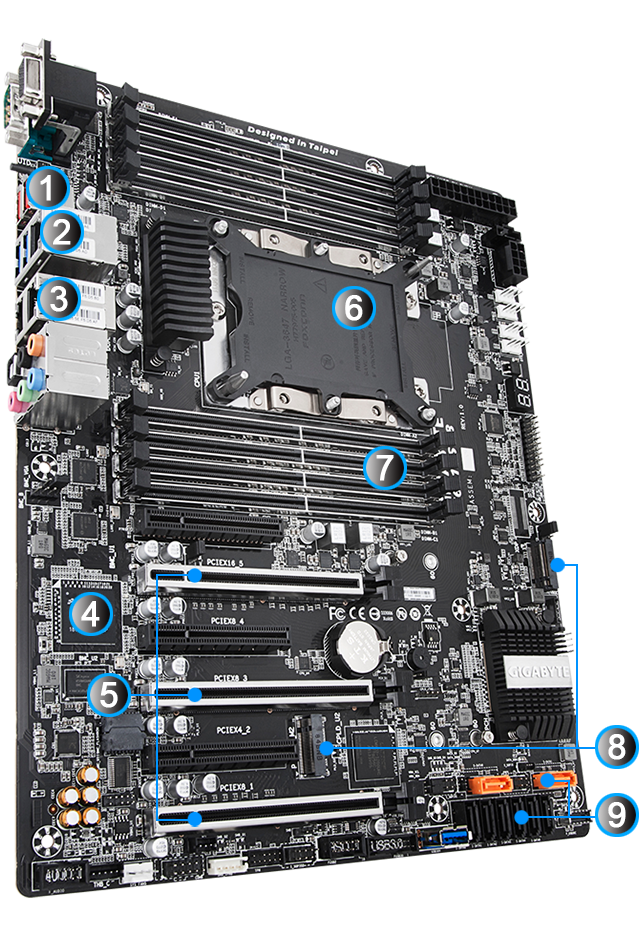

1

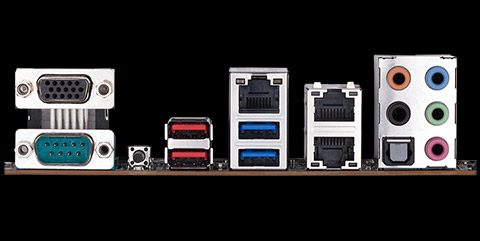

2 x USB3.1 Gen2
2
Dedicated Management Port
3
Dual Intel® Server GbE LAN
4
AST2500 BMC
5

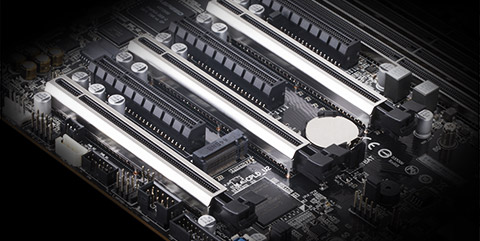

3 x PCIe x16 Slots For Multi Cards
6

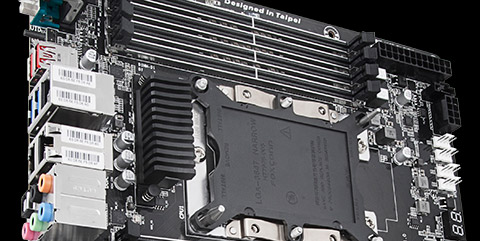

Intel® Xeon® Scalable Processors LGA 3647 Socket P
7
6-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
8
2 x M.2 Connectors, Up To 2280
9
8 x SATA3 Ports (2 x SATA DOM Ports)
PERFORMANCE
New Processor Architecture

Intel® Xeon® Scalable processors are designed for the performance demands of complex, data-demanding workloads such as in-memory databases, and real-time business analytics.


3-Way SLI™ / 3-Way CrossFireX™ Multi-Graphics

Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.


Large storage capacity: 8 SATA3 Ports

Sufficient SATA Ports for the mass storage requirement.

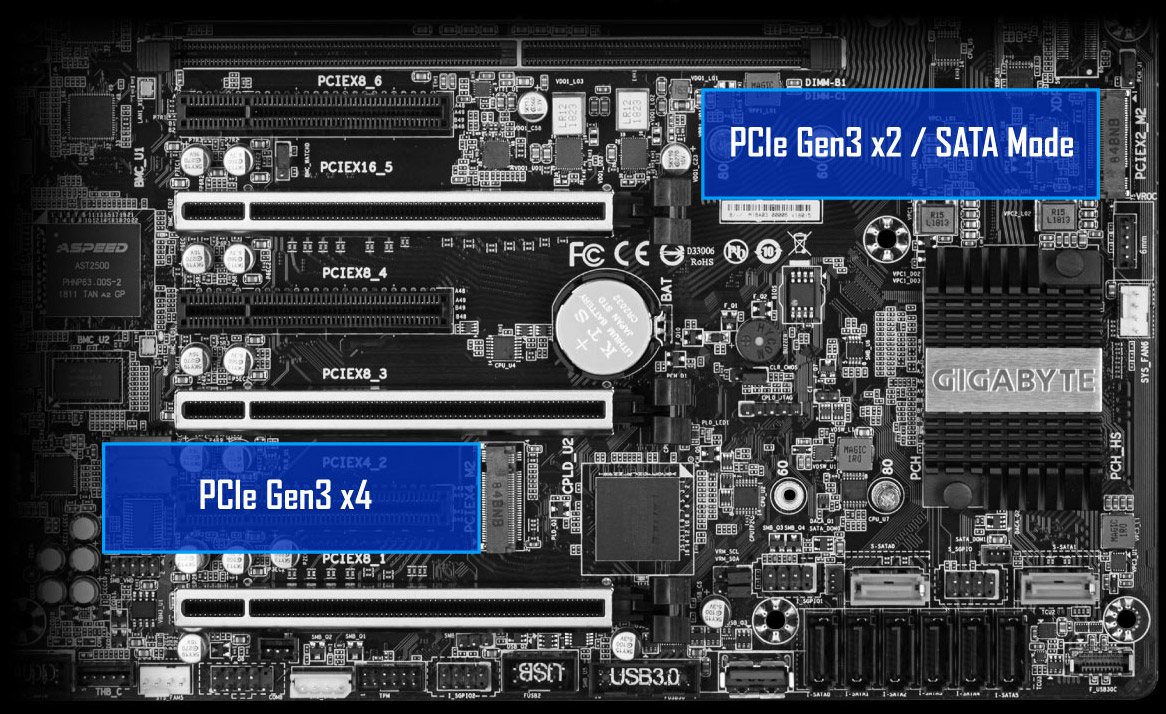

Dual-Mode M.2 Slot Design

Support both PCIe NVMe + SATA SSDs
GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design, users can build a system with two NVMe M.2 SSDs or SATA Mode M.2 SSDs. This configuration is designed for flexibility and adaptation to fit most users’ requests.

Dual NVME M.2 SSDs PCIe / SATA Dual Mode Support

Carefully Selected Components

GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

CONNECTIVITY
PURE SPEED
GIGABYTE Extreme USB 3.1 Motherboards

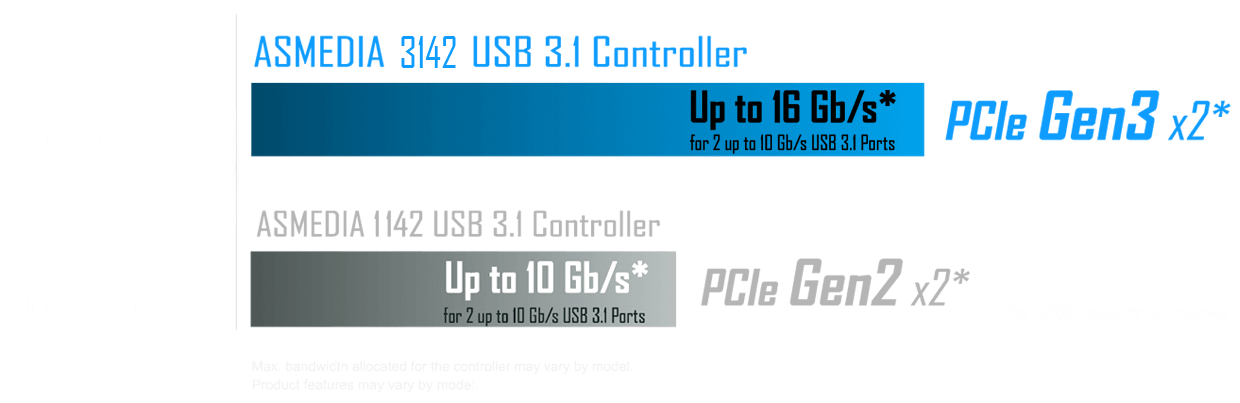

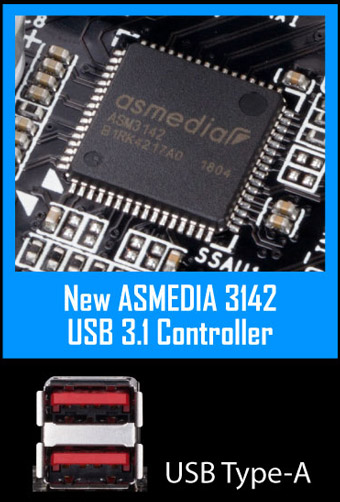

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol USB Type-A connector for better compatibility over a wider range of devices.

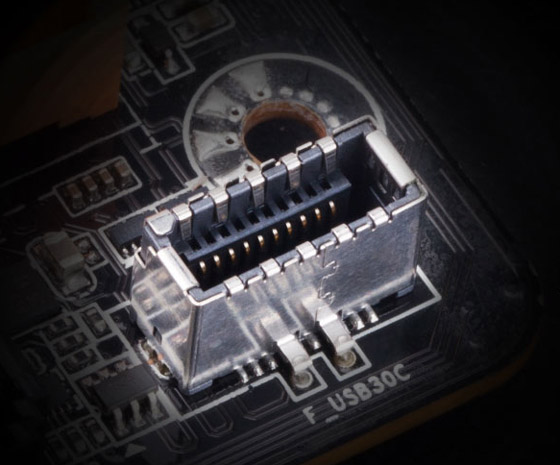

USB Type-C™ Front Panel Connector

The onboard USB Type-C™ header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

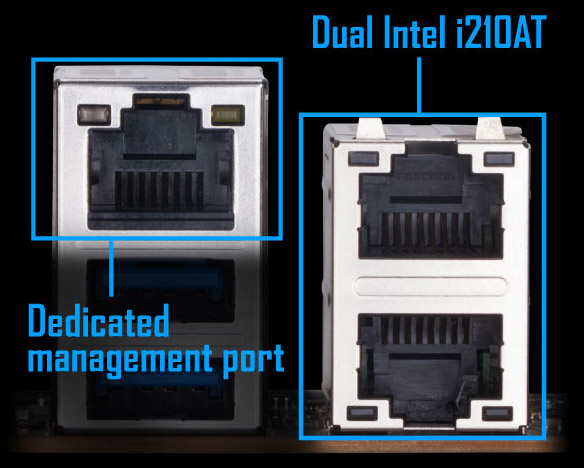

Dual Intel® Server GbE LAN and dedicated management port

* Support Windows Server O/S
* Teaming Features
   - Fault Tolerance
   - Link Aggregation
   - Load Balancing
* Dedicated management port improves security level and the BMC can be accessed by specific IPs or subnet.

GIGABYTE Remote Management
GIGABYTE Remote Management

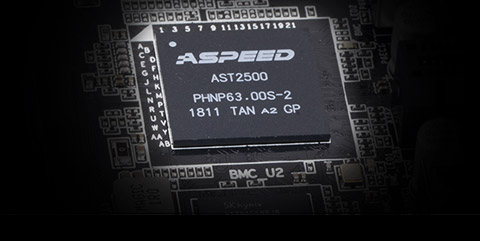

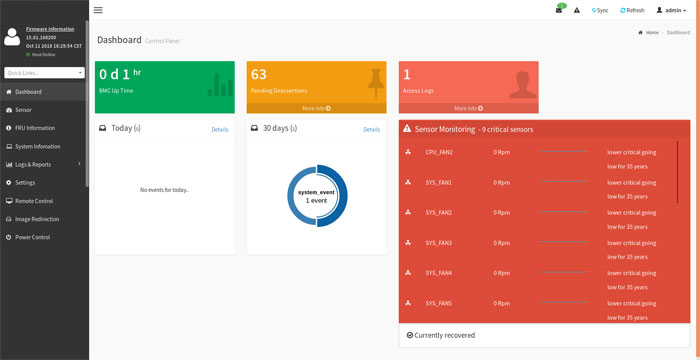

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:

  1. IPMI 2.0 implementation
  2. Full configuration via web interface
  3. Hardware status monitor
  4. Remote power control
  5. Remote firmware update
  6. Remote KVM with image redirection
  7. Event log and reporting
  8. Easy and convenient user management

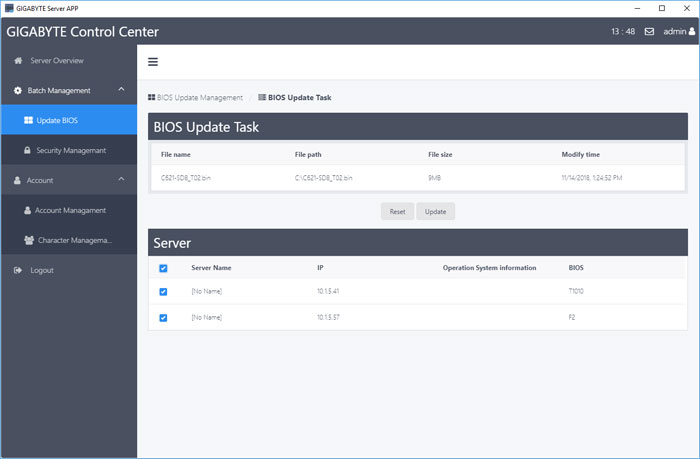

GIGABYTE Control Center

GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:

  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management

AUDIO
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
ALC 1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.


True High-Fidelity Music
Audiophile Grade Capacitors

True High-Fidelity Music (Realtek ALC1220-VB)
Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
Audiophile Grade Capacitors (Nichicon Fine Gold)

To ensure a studio-quality experience, Nichicon Fine Gold capacitors are used to provide power to the overall system.

ULTRA DURABLE

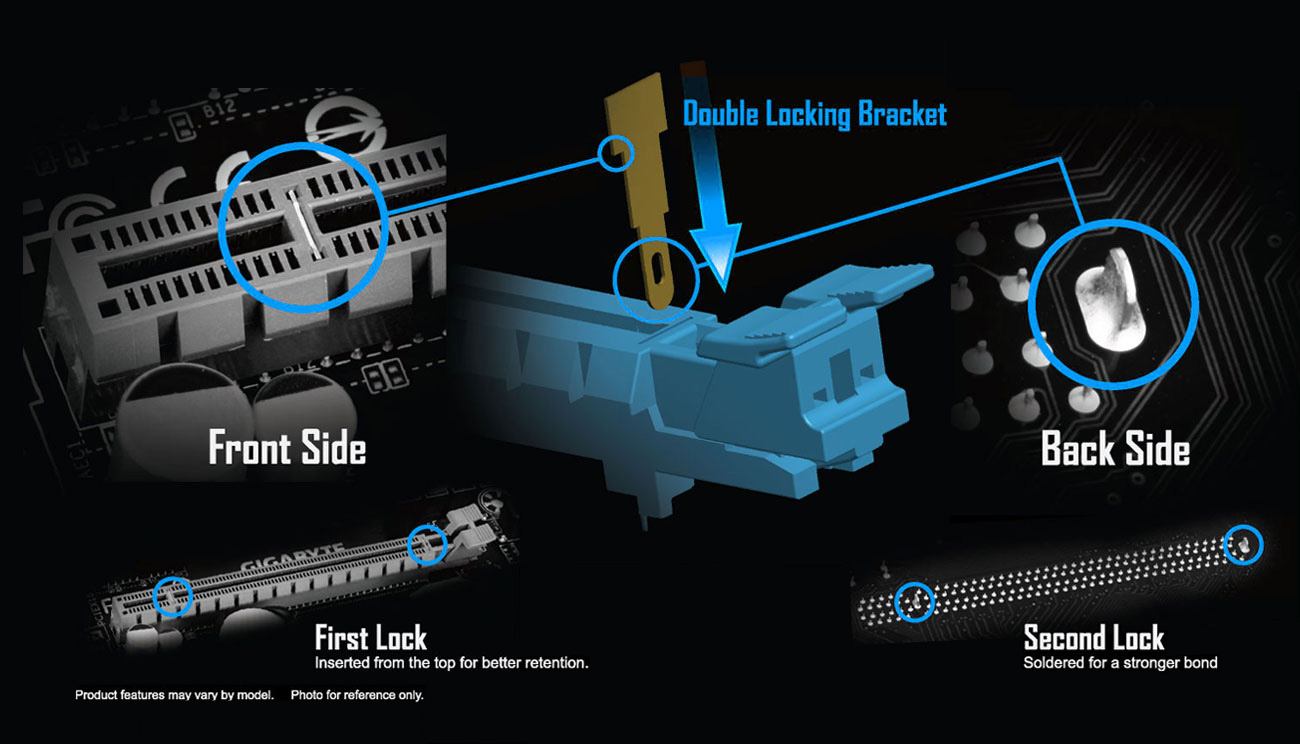

GIGABYTE Patented Double Locking Bracket

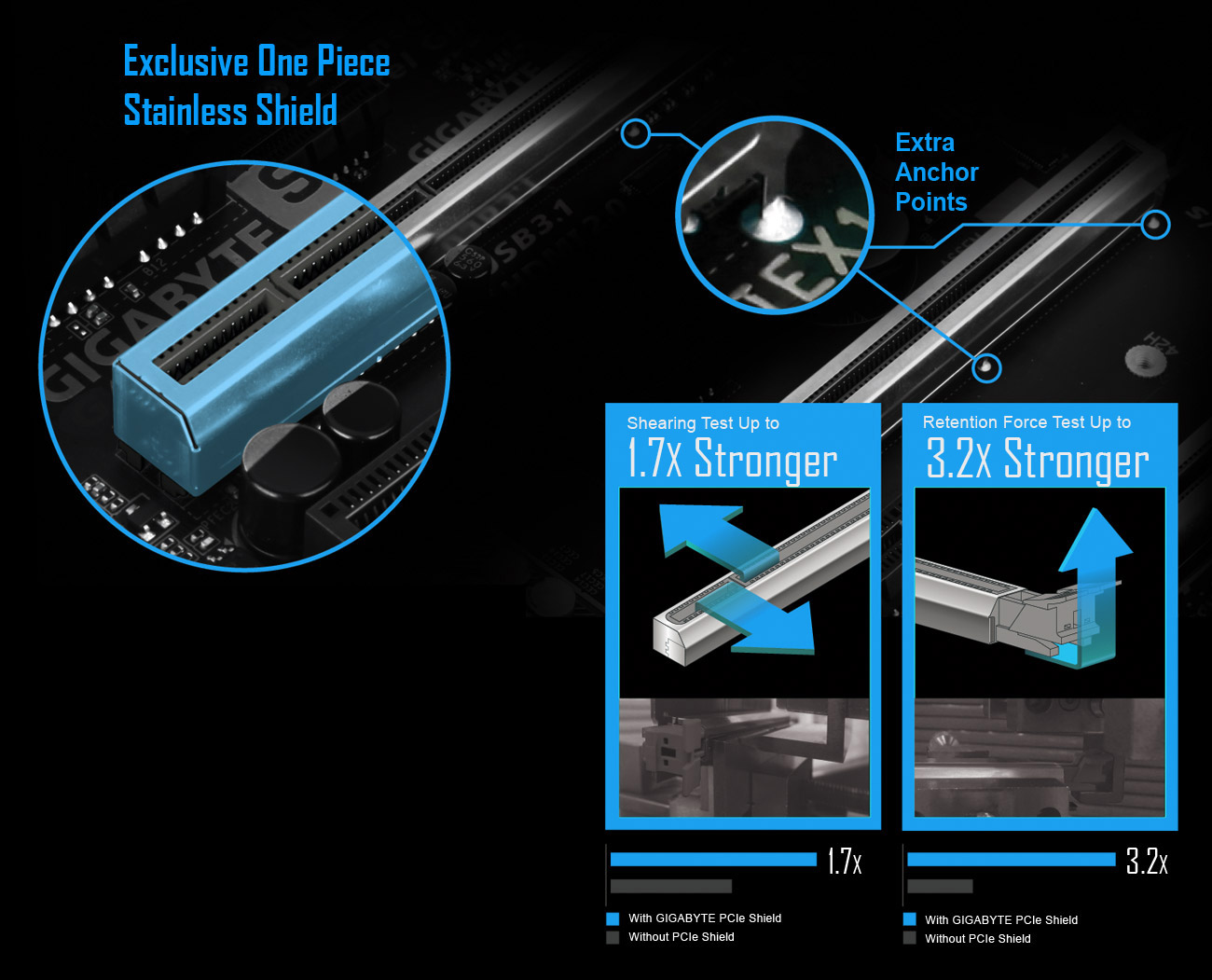

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

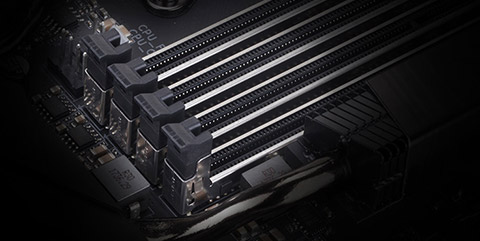

Ultra Durable™ Memory Armor

GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

* Product features may vary by model. Photo for reference only.
