SPEC OVERVIEW
PERFORMANCE
GIGABYTE REMOTE MANAGEMENT
CONNECTIVITY
SPEC OVERVIEW
PERFORMANCE
GIGABYTE REMOTE MANAGEMENT
CONNECTIVITY

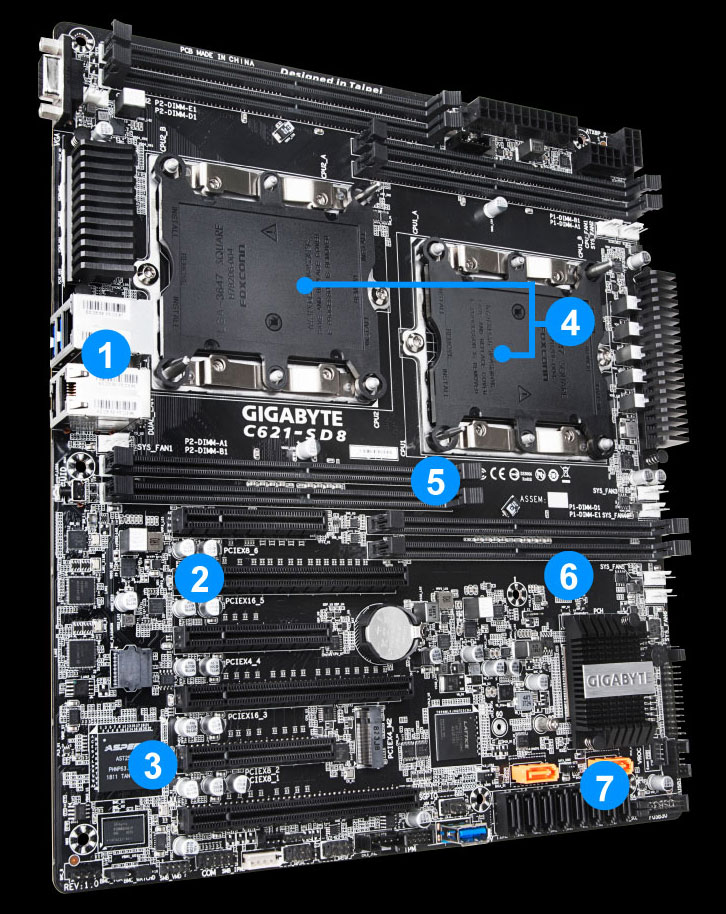

1
Dual Intel® Server Gb LAN
2
3 x PCIe x16 slots for multi cards
3
AST2500 BMC and dedicated management port for remote management
4
Intel® Xeon® Scalable Processors Dual LGA 3647 Socket P
5
Quad-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
6
CEB form Factor
7
10 x SATA3 Ports (2 x SATA DOM Ports)
PERFORMANCE
3 PCIe x16 slots and 3 PCIe x8 slots for Multi Cards
Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.

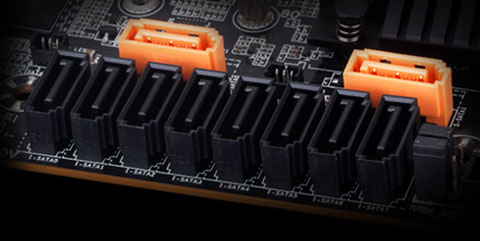

Large storage capacity: 10 SATA3 Ports
Sufficient SATA Ports for the mass storage requirement.
Carefully Selected Components
GIGABYTE's passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years' company-wide experience in motherboard design to attain the highest reliability levels.
GIGABYTE REMOTE MANAGEMENT
GIGABYTE Remote Management

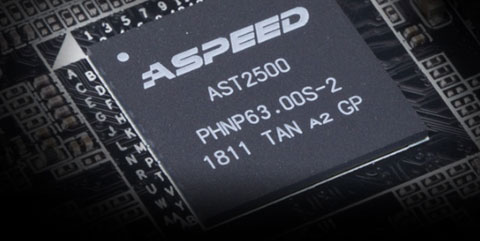

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:
  1. IPMI 2.0 implementation
  2. Full configuration via web interface
  3. Hardware status monitor
  4. Remote power control
  5. Remote firmware update
  6. Remote KVM with image redirection
  7. Event log and reporting
  8. Easy and convenient user management
GIGABYTE Control Center
GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:
  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management
CONNECTIVITY

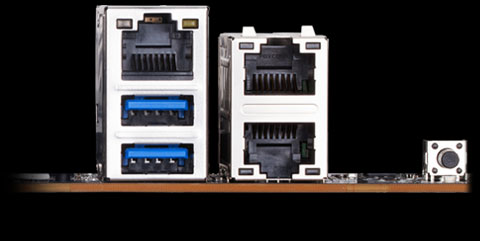

Dual Intel® Server GbE LAN and dedicated management port
  1. Support Windows Server O/S
  2. Teaming Features
    - Fault Tolerance
    - Link Aggregation
    - Load Balancing
  3. Dedicated management port improves security level and the BMC can be accessed by specific IPs or subnet.
