Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. Z390 AORUS XTREME is the new definition of a flagship motherboard.
1
16 Phases IR Digital VRM Solution with PowIRstage
• 8 Layer PCB
• 2x Copper PCB
2
Intel® CNVi 802.11ac 2x2 Wave 2 WIFI & BT 5
3
Intel® i219v GbE LAN
• cFosSpeed Internet Accelerator
4
AQUANTIA® 10GbE Base-T LAN
5
Intel® Thunderbolt™ 3
6
Advanced Thermal Design
• Fins-Array Heatsink
• 4X Direct Touch Heatpipes
• 5 W/mK LAIRD thermal conductivity pad
• NanoCarbon Baseplate
Supports 9th Gen and 8th Gen Intel® Core™ Processors

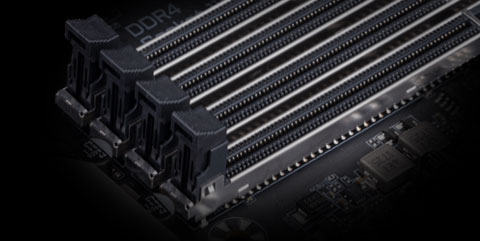

• Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
• XMP Support
11

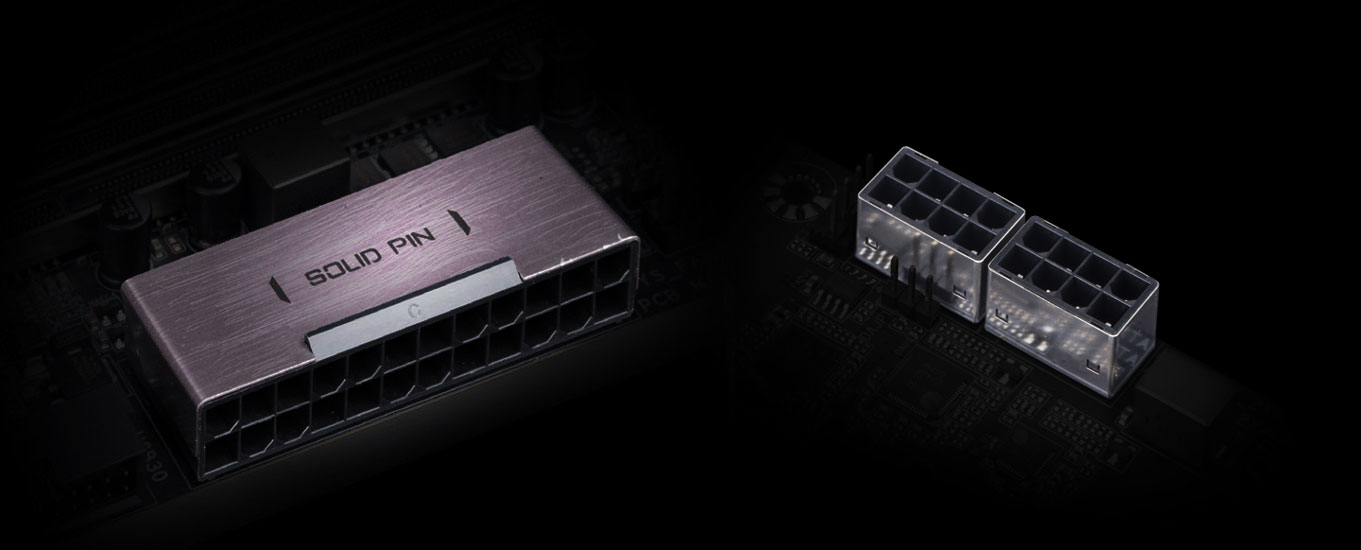

Solid Pin Power Connectors
• 24 pin ATX power Connector
• 8+8 pin CPU power Connector
• 6 pin PCIe power Connector
12
USB TurboCharger
13
Front USB 3.1 Gen2 Type-C™
14
Ultra Durable PCIe Armor
15
DualBIOS™ with Socketed BIOS
16
OC Touch Connector
Extreme Power Design
To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.
Extreme Power Design
16 Phases Digital Power
37% Larger Power Plane
2X Copper PCB

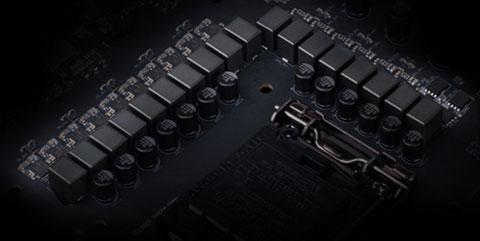

16 Phase Digital Power Design
60A IR PowIRstage for each vCore Phase
High current capacity MOSFET
Lower temperature
Server level reliability

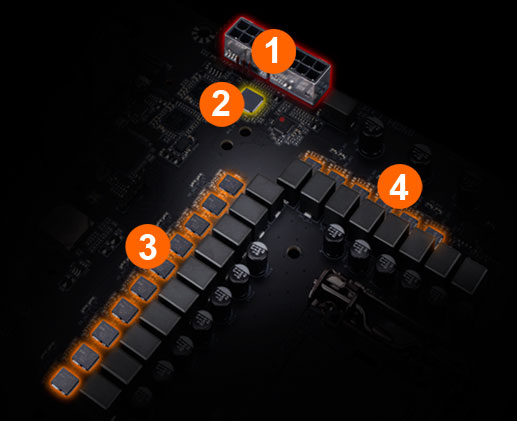

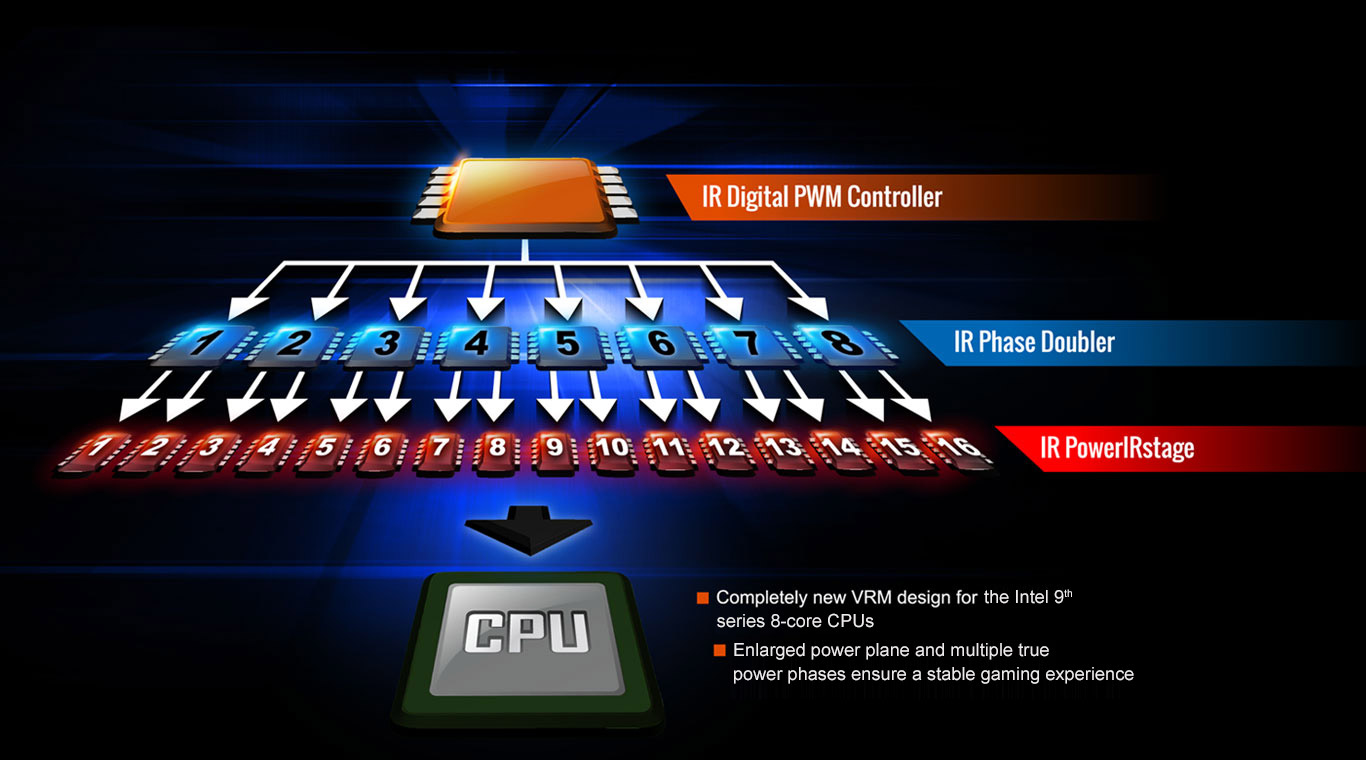

Z390 AORUS XTREME motherboard uses an all IR digital CPU power design which includes a digital PWM Controller with PowlRstage MOSFET and is capable of providing at least 60A of power from each phase, for a total of 960A. This 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.
1. 8+8 Solid Pin CPU Power Connectors with Metal Shielding
2. IR Digital PWM Controller
3. 16 Phase Digital Power Design
4. IR PowIRstage
True 16 Phase Power Design

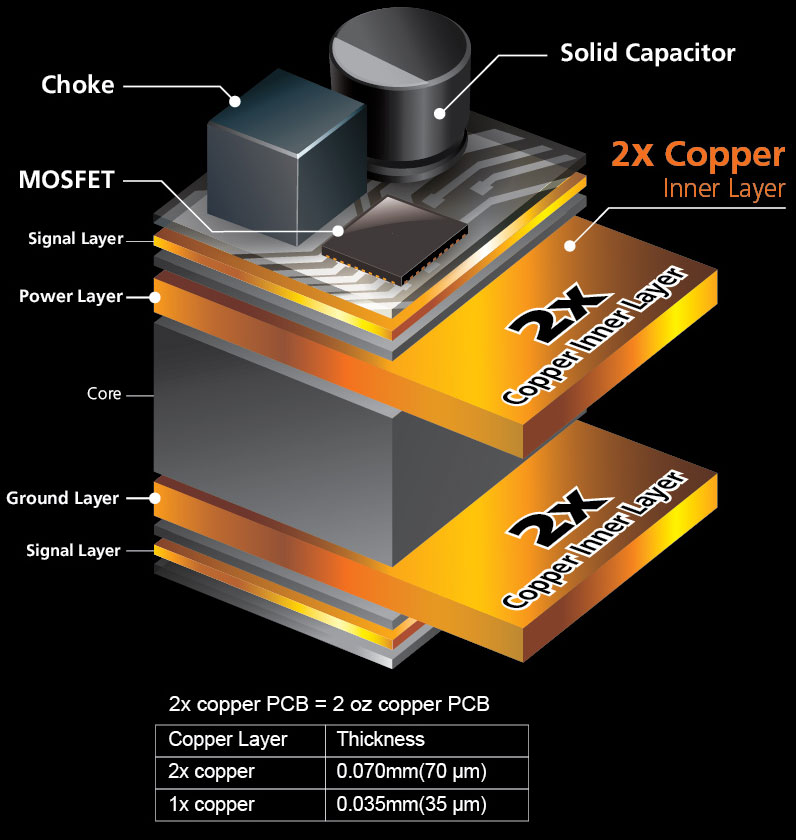

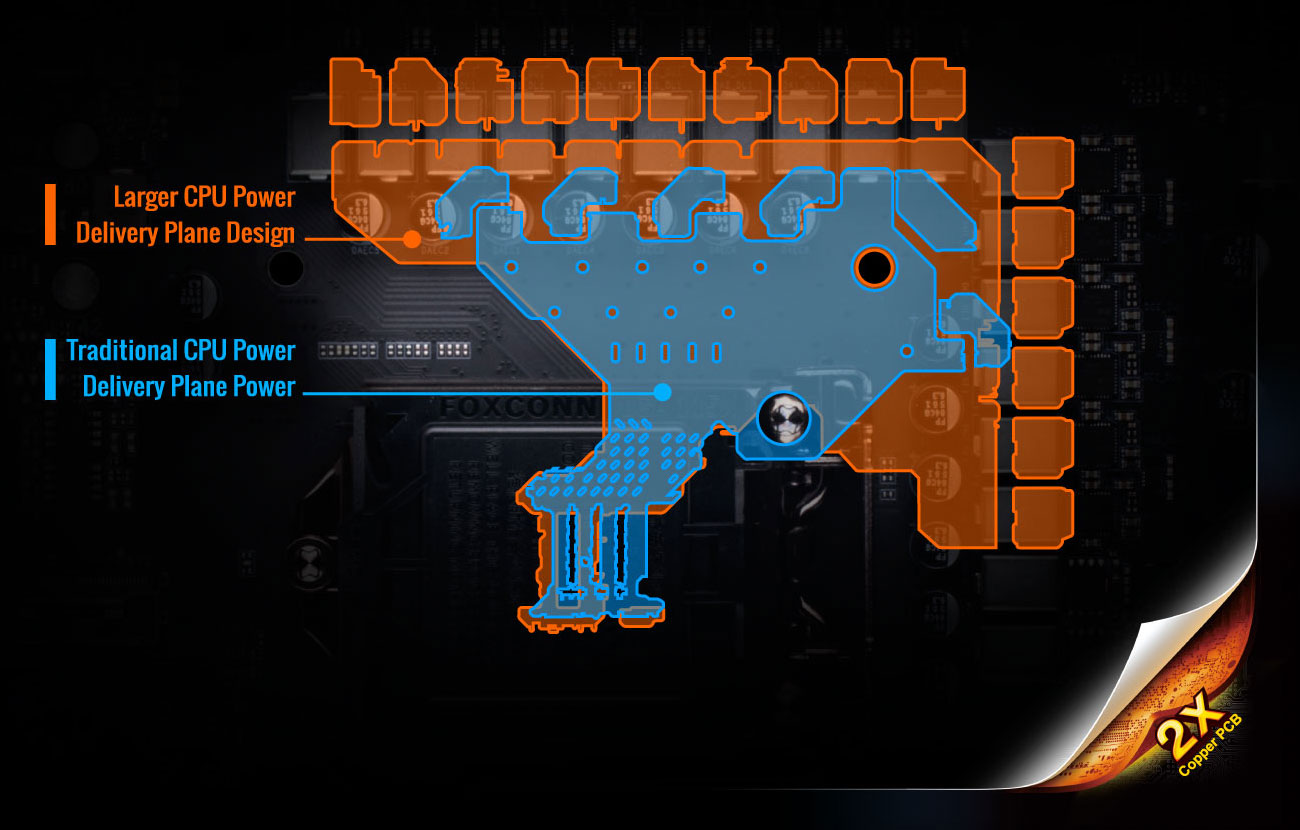

Optimized CPU Power Delivery Plane with 2x Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that is
necessary when overclocking.

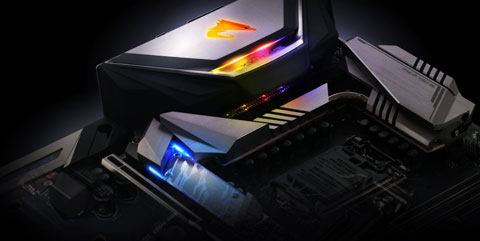

EXTREME Thermal Design
Z390 AORUS XTREME use some unprecedented and innovative thermal design to ensure stability and low temperature under full loading application and gaming.
EXTREME Thermal Design
Fins-Array heatsink
NanoCarbon Baseplate
16X Hybrid Fan Header
Thermal Design Exploded View
Heatpipe Internal View
Heatpipe Heat transfer

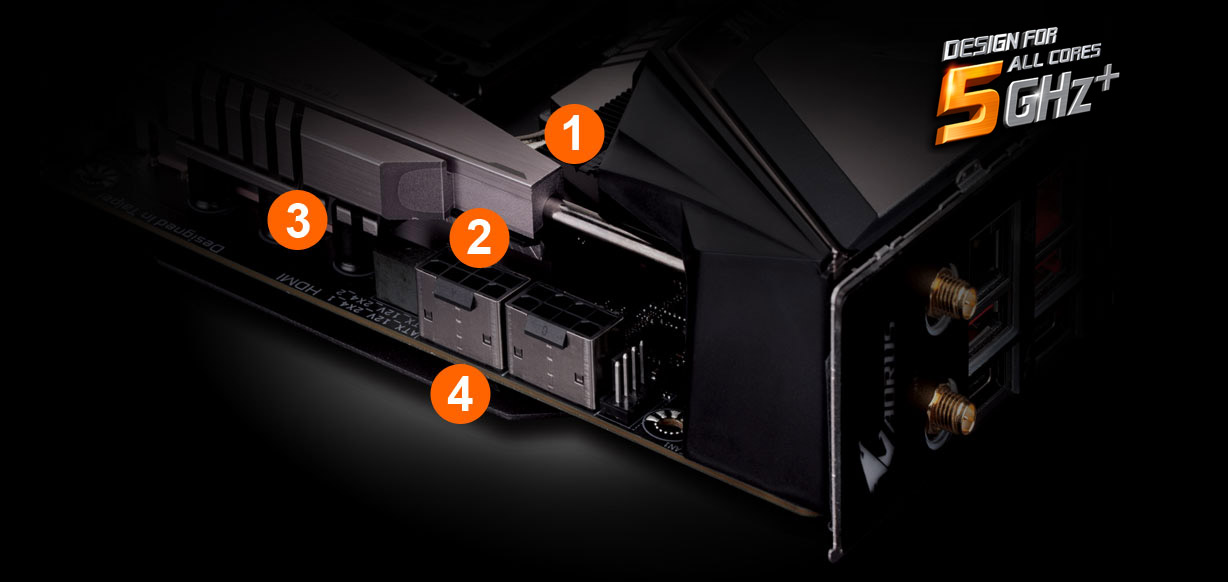

1. Fins-Array
Increases heat dissipation area by 300% compared to traditional heatsinks of the same size.
2. High Thermal Conductivity pad
By using 1.5mm thick, 5 W/mK LAIRD thermal conductivity pad, it can transfer 2.7x more heat than usual thermal pad in
the same time.
3. 4X Direct Touch Heatpipes
4 heatpipes directly contact PowIRstage, Inductors, PCB and connect to Baseplate, this highly complicated thermal design can
dissipate all heat from PWM component efficiently.
4. NanoCarbon Baseplate
High tech aluminum baseplate transfer heat from connected heatpipe and PCB back side thermal pad, it can use large nanocarbon
coating surface to dissipate heat passively.
Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to
enhance thermal radiation capability.
Combining with the back side thermal pad and heatpipe, it can transfer heat from the back side PCB and front side heatsink to the base plate so the NanoCarbon base plate can dissipate heat passively.
Effectively lowers backside PWM component temperature by 10%.
NanoCarbon Coating
This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal
sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard
more liquid cooling friendly.
Fan Pin Headers
FAN / Water Pump Pin Headers
Internal Temperature Sensors
External Temperature Sensors
Temperature Sensors
Hybrid Fan Headers
Temperature Sensor Cable x 2
■ 8 Fan / Water Pump Connectors
■ 8 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Support GPU temperature as source
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control
Bundled RGB FAN COMMANDER provide additional 8 hybrid fan headers
* Different models have a different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures
drop below a specified threshold. Which fan stops, based on readings from which sensor, and at
what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design

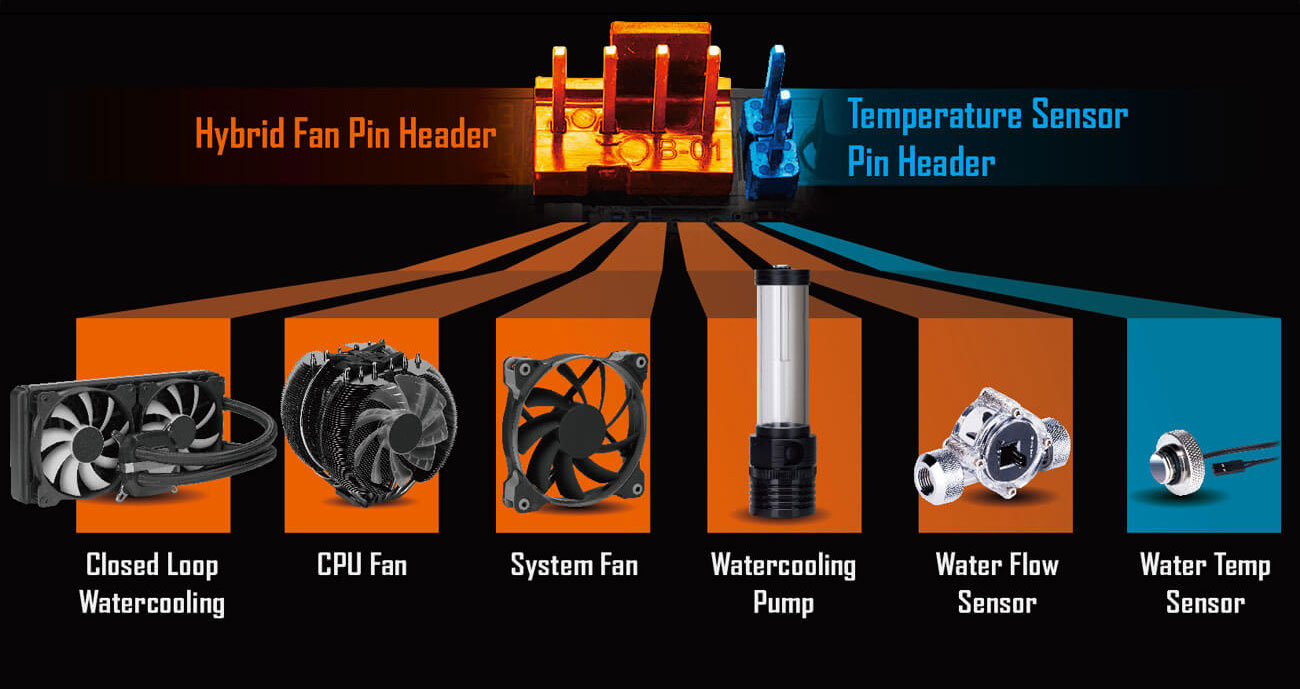

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information
on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan
or pump with different PWM or Voltage mode.

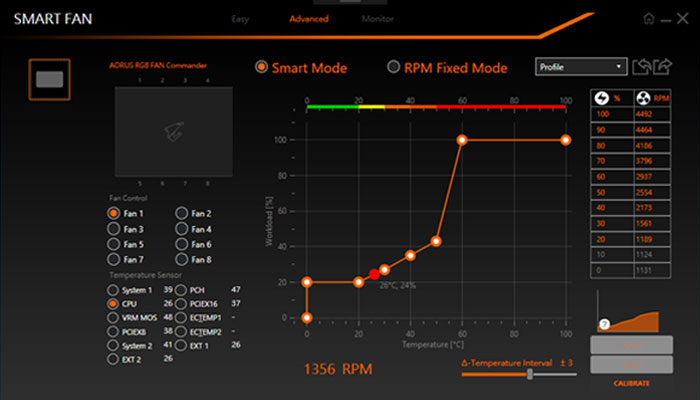

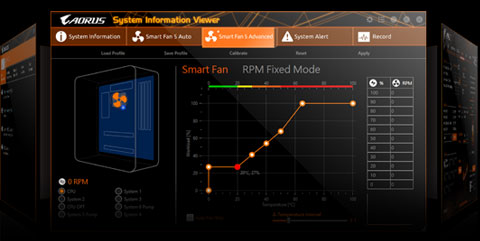

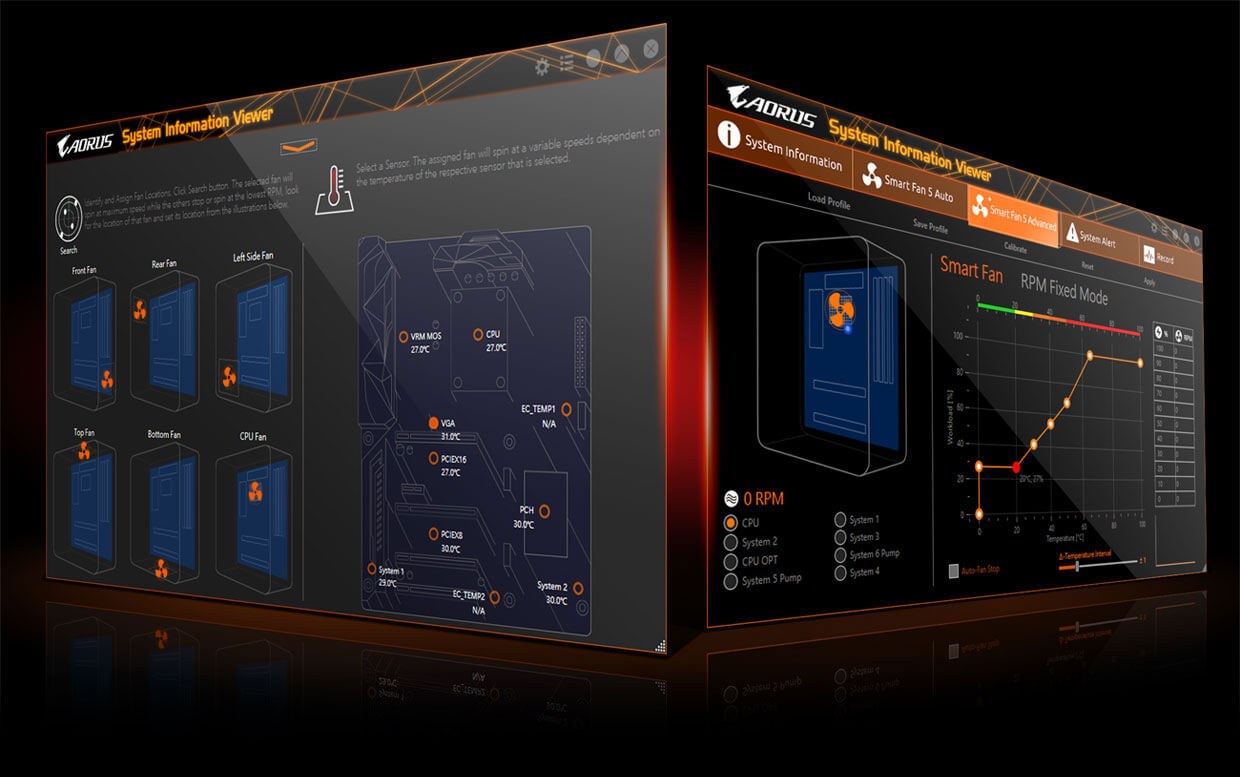

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding
fan speeds.
Unparalleled Performance

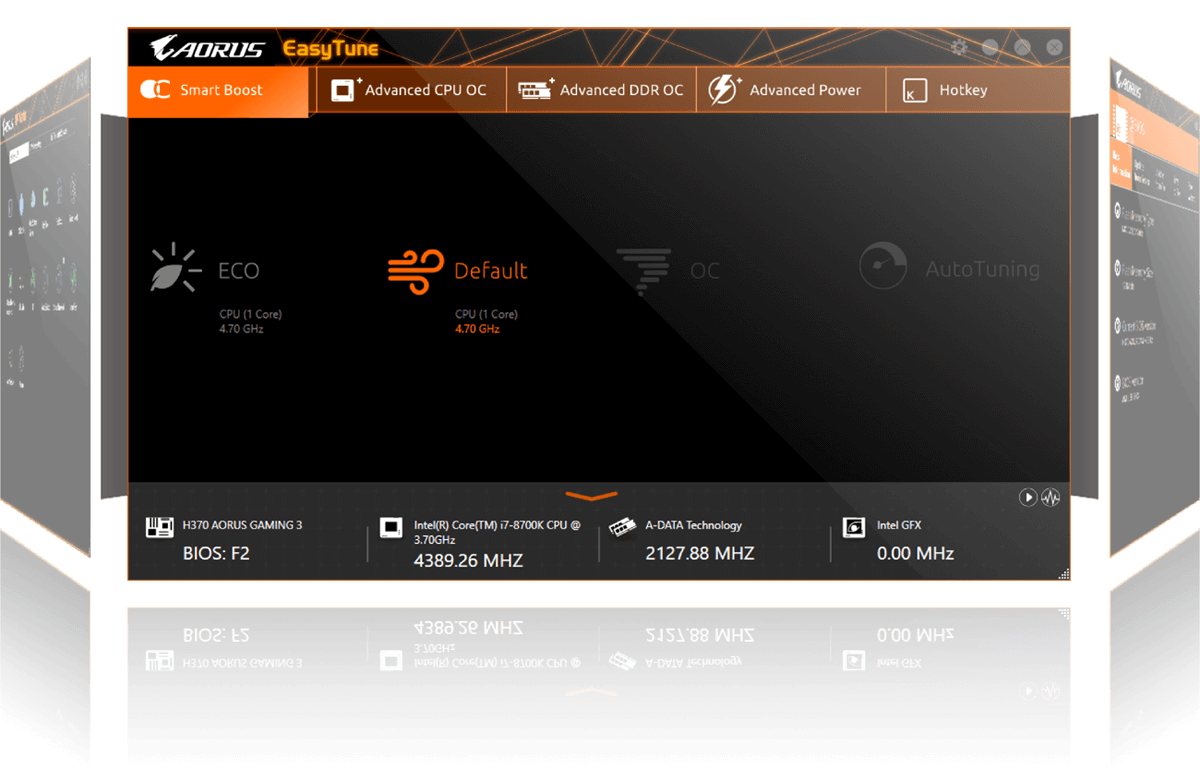

Hungry for better performance? Z390 AORUS XTREME bundles exclusive OC Touch Panel, supports high frequency XMP memory, and full SSD thermal guard to make sure you get the maximum full system performance.
Unparalleled Performance
OC Touch
4400+
3X M.2 PCIe x4
3X M.2 Thermal Guards

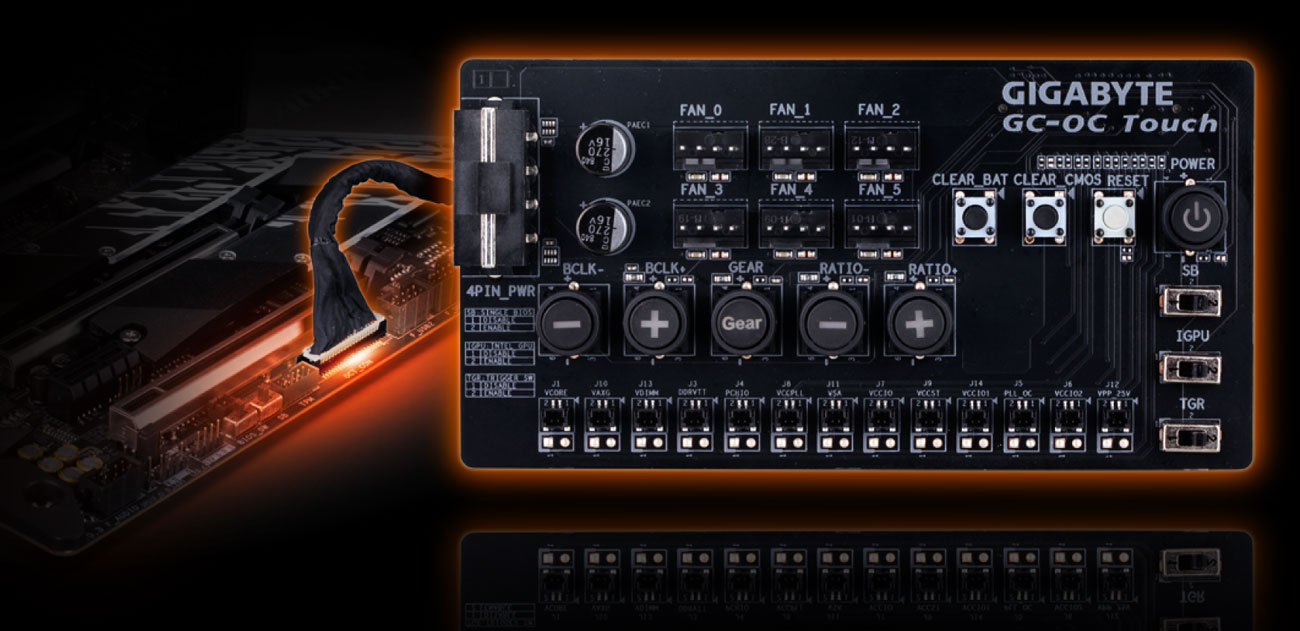

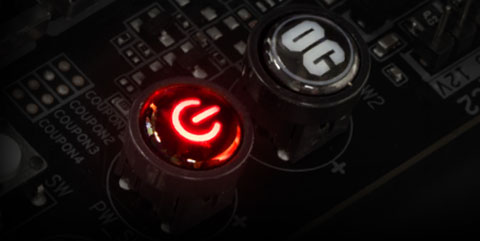

OC Touch Panel
Overclocking Made Easy GIGABYTE OC Touch provides an array of physical buttons and switches to bring access to overclocking
features at your fingertips—making overclocking on the fly extremely fast and easy.
Support for DDR4 to 4400MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility to 4400MHz and beyond.
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！
AORUS partners very closely with memory vendors from around the world to ensure that modules offered
by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different
modules to ensure performance in a AORUS built system.
Triple PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with Gen3 x4 NVMe PCIe SSDs
Z390 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users
who demand high capacity and seek the best performance. AORUS' unique design can be configured
in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice
for the ultimate PC.

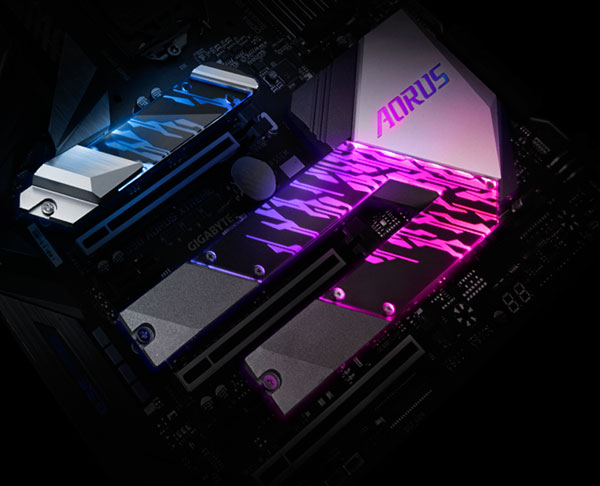

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling
and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Next Generation Connectivity
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. Z390 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Connectivity
10GbE Base-T LAN
Intel® Thunderbolt™ 3
Intel® WIFI
AORUS Antenna
USB TurboCharger

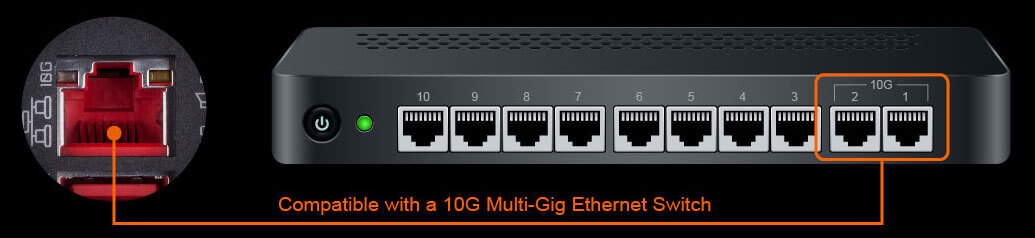

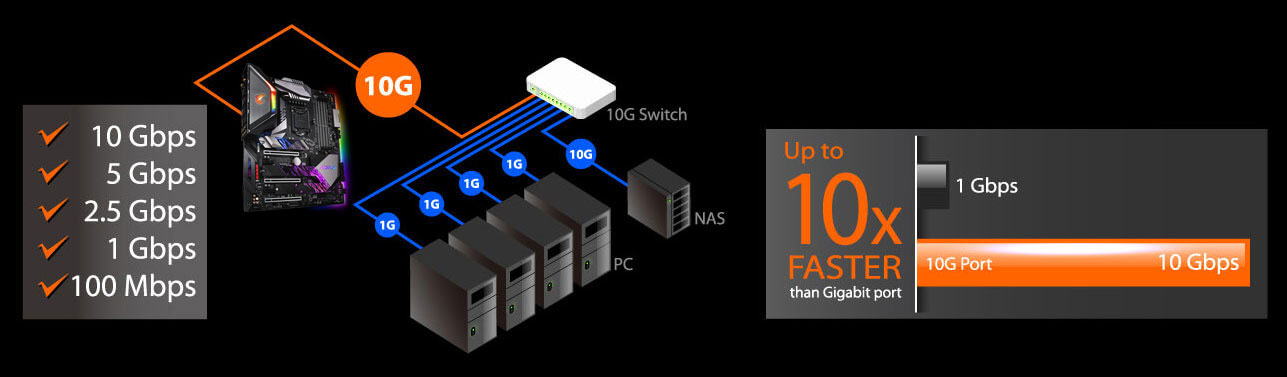

AQUANTIA® 10GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA
® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/
1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity,
with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for
media centers, workstations and gamers.
Multi-Gigabit Support
• Ultimate online gaming experience with faster connection speed
• Backward compatible with 5/2.5/1Gbps network
• No re-wiring needed
Next Generation 40 Gb/s Thunderbolt™ 3
Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available
over two USB Type-C™ connectors on the back I/O of the GIGABYTE Z390 AORUS XTREME, brings an unprecedented
single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt!
This incredible increase in bandwidth is also accompanied with support for different protocols such
as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up
a world of new possibilities.

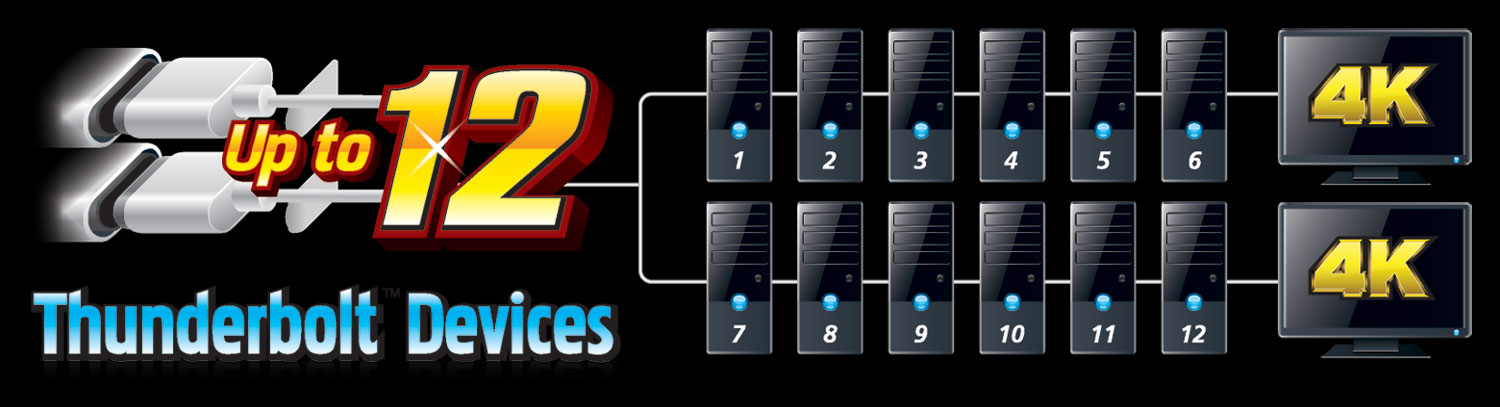

Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z390 AORUS XTREME is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In
addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power
Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z390 AORUS XTREME's dual
USB Type-C™ ports.
Compatibility may vary according to system configuration and device specifications.
Smashes the GbE Barrier!
Integrated Intel® 802.11ac Wave2 CNVi WIFI + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth
video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to
the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.
Completed configuration with installed Intel WIFI module on chassis' rear as shown.

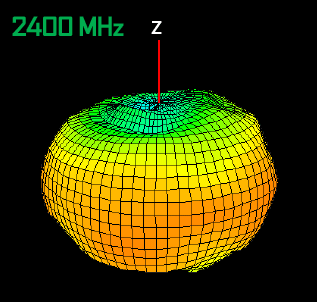

All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain
2x signal strength compared to traditional antenna design
Two antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and location

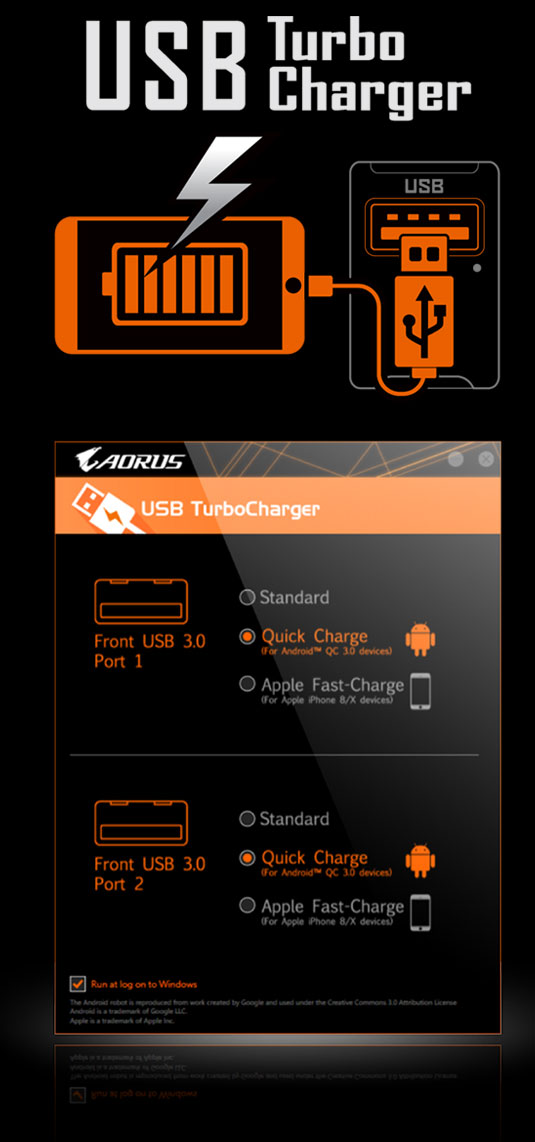

USB TurboCharger

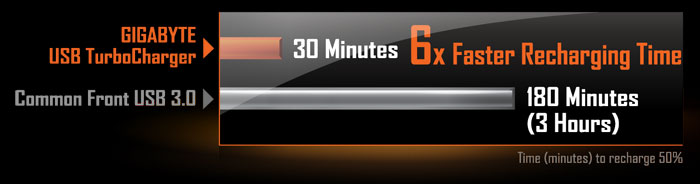

GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up
to 50% in less than 30 minutes*. By connecting Front USB 3.0 Type-A cable of chassis to our motherboard,
USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge
function.
*Charge time varies with devices' hardware design, battery size, front USB 3.0 cable
quality of chassis and environmental factors, actual results will vary.

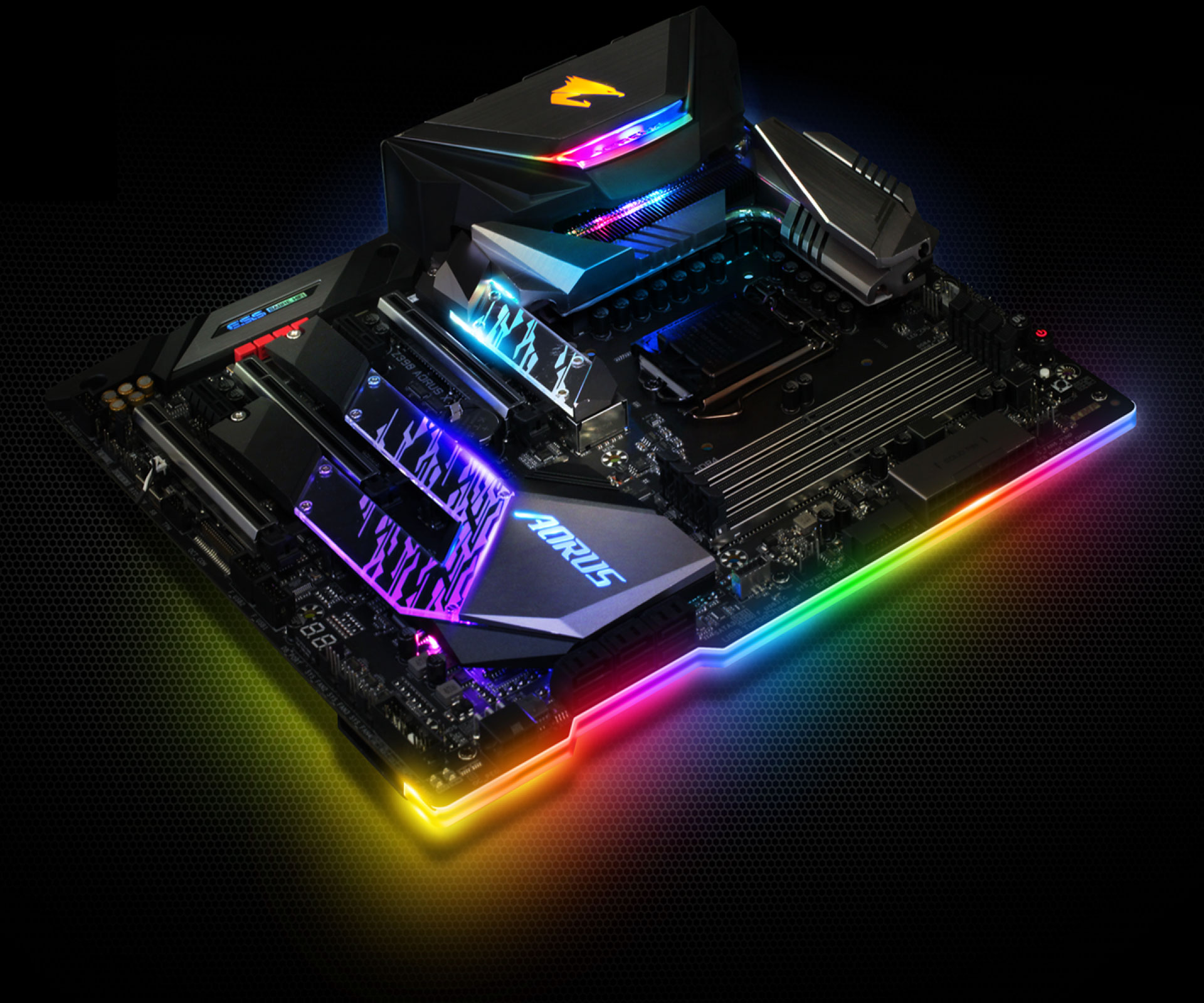

Definitive Aesthetics
GIGABYTE ID team designs Z390 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.
Definitive Aesthetics
RGB FUSION 2.0
AORUS RGB FAN COMMANDER

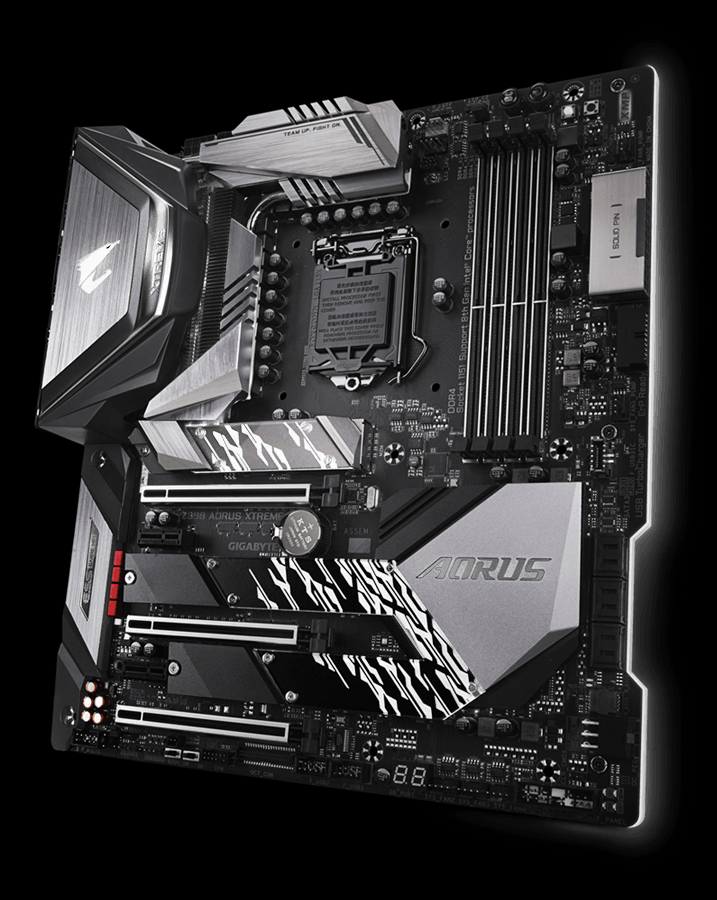

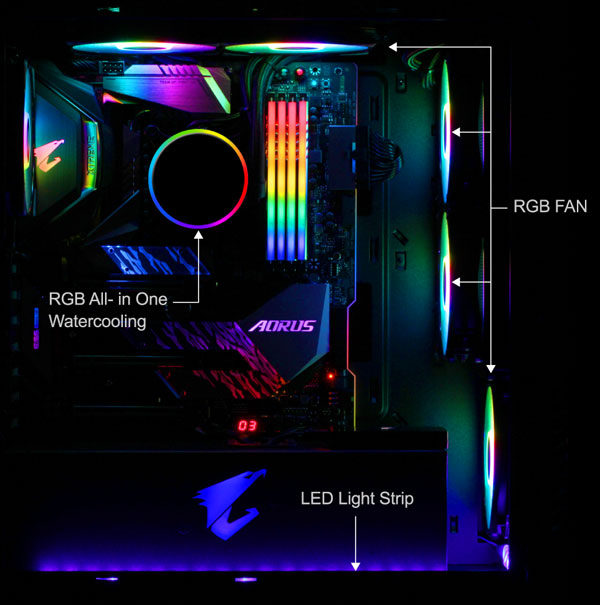

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround
the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

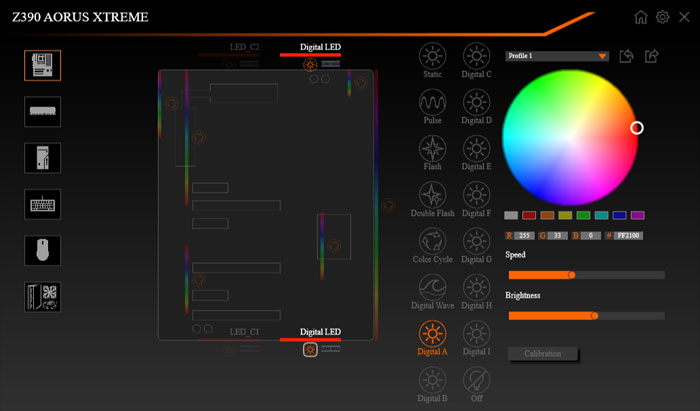

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

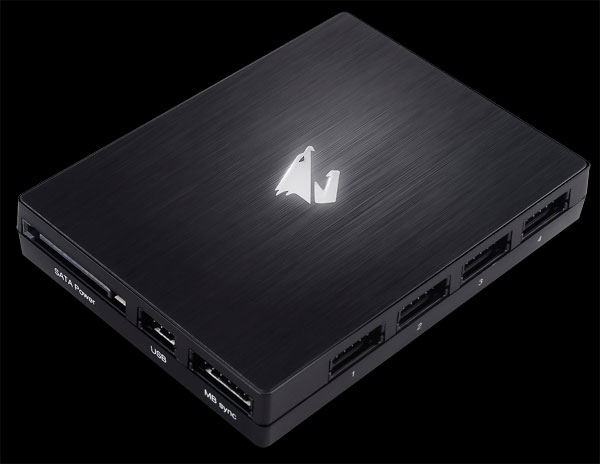

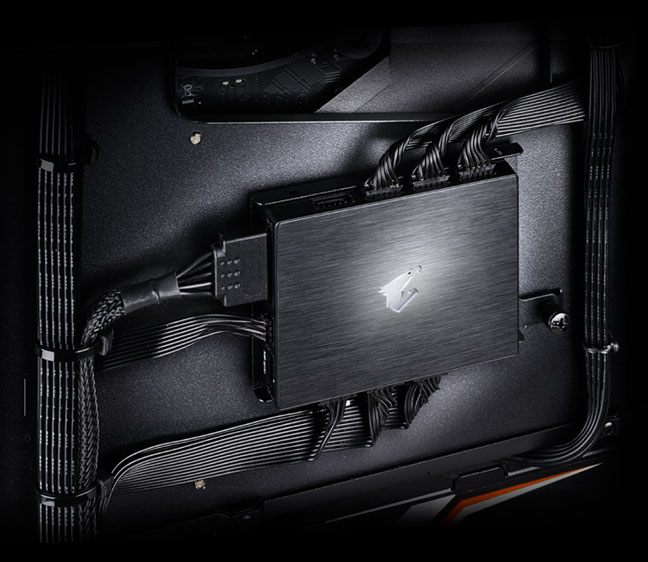

Exclusive bundled accessory for professional casemodders
8 Hybrid Fan Headers
8 RGB LED Headers
8 Addressable LED Headers
2 external temperature sensors
2 USB 2.0 header for additional USB RGB devices
All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns
Easy to install inside the chassis with its compact size and magnetic base

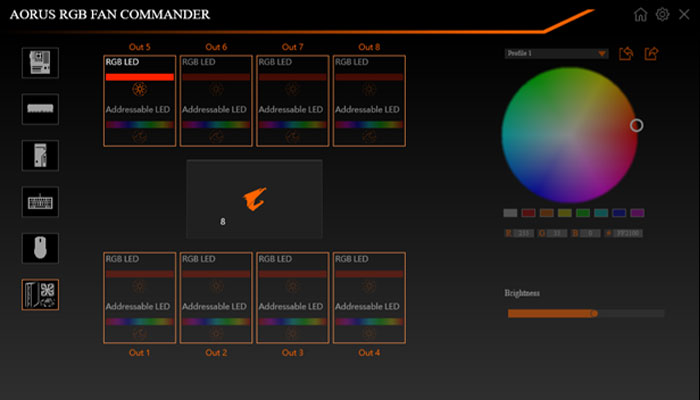

Perfectly control the devices connected to the AORUS RGB FAN COMMANDER via RGB FUSION 2.0 and Smart FAN software.
Manage 8x Fan speeds individually to your requirements. It can also ensure your system maintains its performance while staying cool.
Synchronize up to 16 lighting devices with RGB FUSION 2.0.

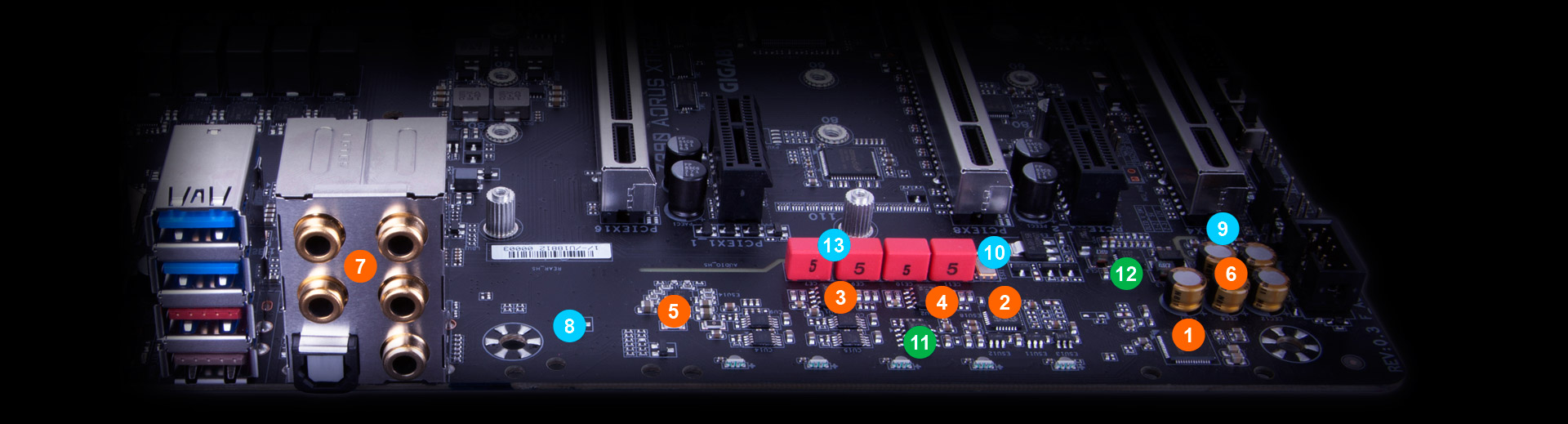

Hi-Fi Audio System
Still think motherboard audio is just "basic sound output"? We put a 100% full Hi-Fi sound card into Z390 AORUS XTREME with all audio-grade components, to ensure the best and crystal sound quality.
Hi-Fi Audio System
Audio Signal Process
Digital Audio
True Hi-Fidelity Music
Provides surround sound audio and enables DSD music playback
Digital / Analog Convert

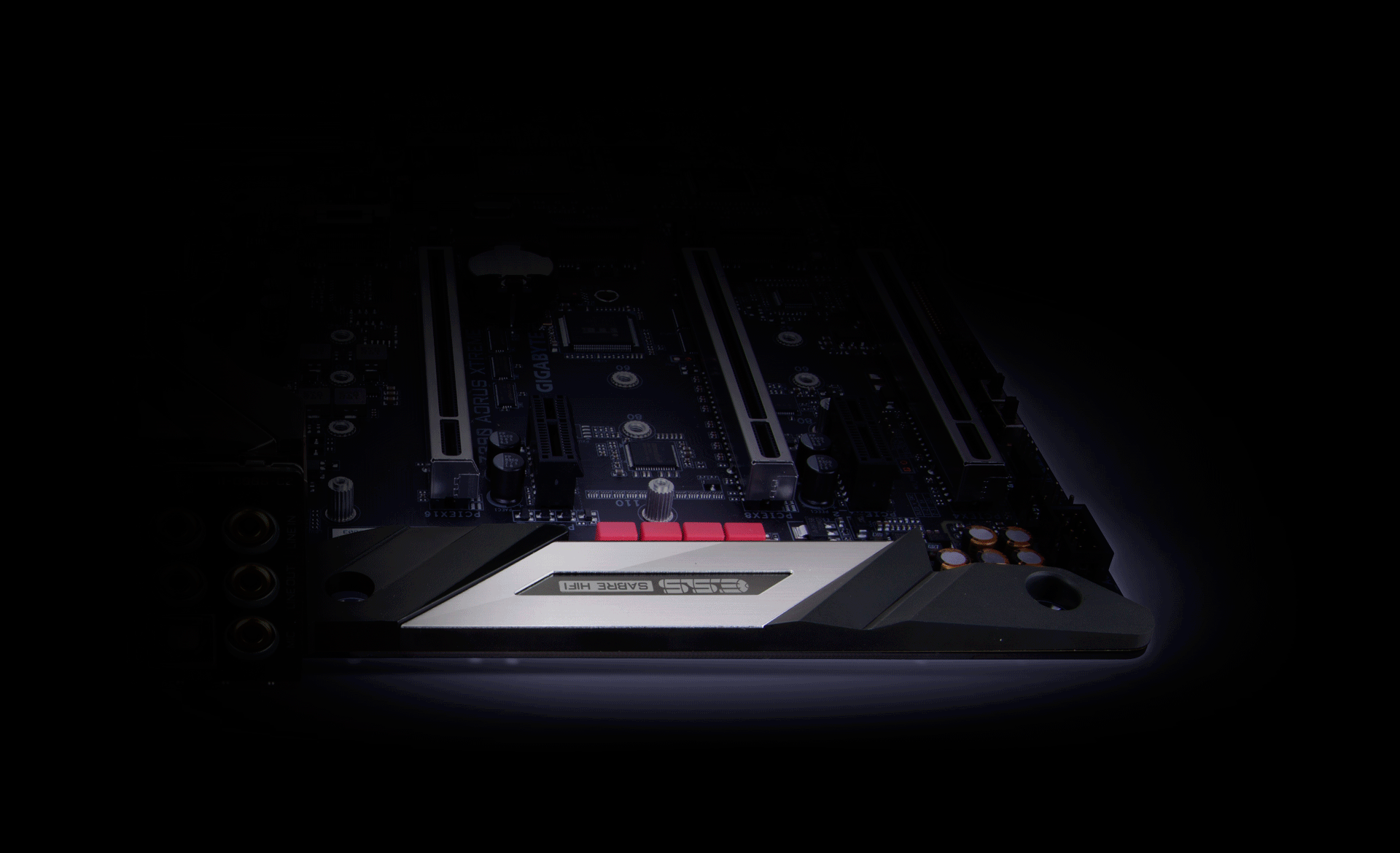

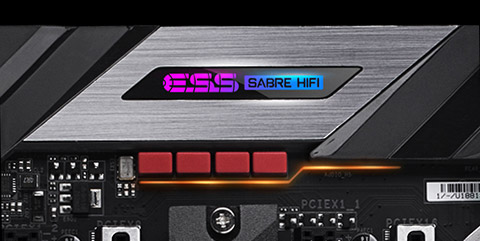

ESS SABRE reference DAC
Hyperstream Dynamic Range (DNR 127dB) High-Res music (32bit, 192KHz PCM) World's best THD+N (THD+N -120db)
L/R Channel Signal Processing
L / R separation analog signal processing with internally balanced audio design
For maximum stereo sound quality and high-quality signal transmission
Audio Signal Amplification
TI Burr-Brown Audio OP Amps
Low stereo cross talk, high operational power output
Audiophile Grade Capacitors
Deliver true acoustic sound
Crystal Sound Output
Gold Plated Audio Jacks
High resistance to corrosion and oxidation
Audio Signal Optimization
Anti-pop Circuit Design
Prevents popping noise when plugging in and removing the audio jack
Auto Impedance Sensing
Auto detects headphone coils from 6 to 600 Ω and automatically adjusts proper output power
Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
Clean Audio Power
Independent Analog Power
Drives clean analog power for audio components to ensure minimal noise.
Power Purifier
Supplies undisturbed power to the Digital-Analog Converters
Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the Z390 AORUS XTREME and reinforce every slot to make each of them solid and durable.
Ultra Durable

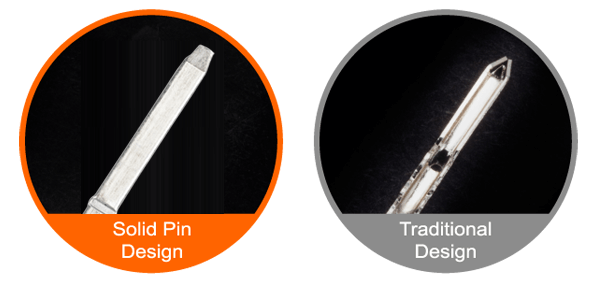

Solid Pin
3XPCIE Armor
4XMemory Armor
Q-Flash Plus

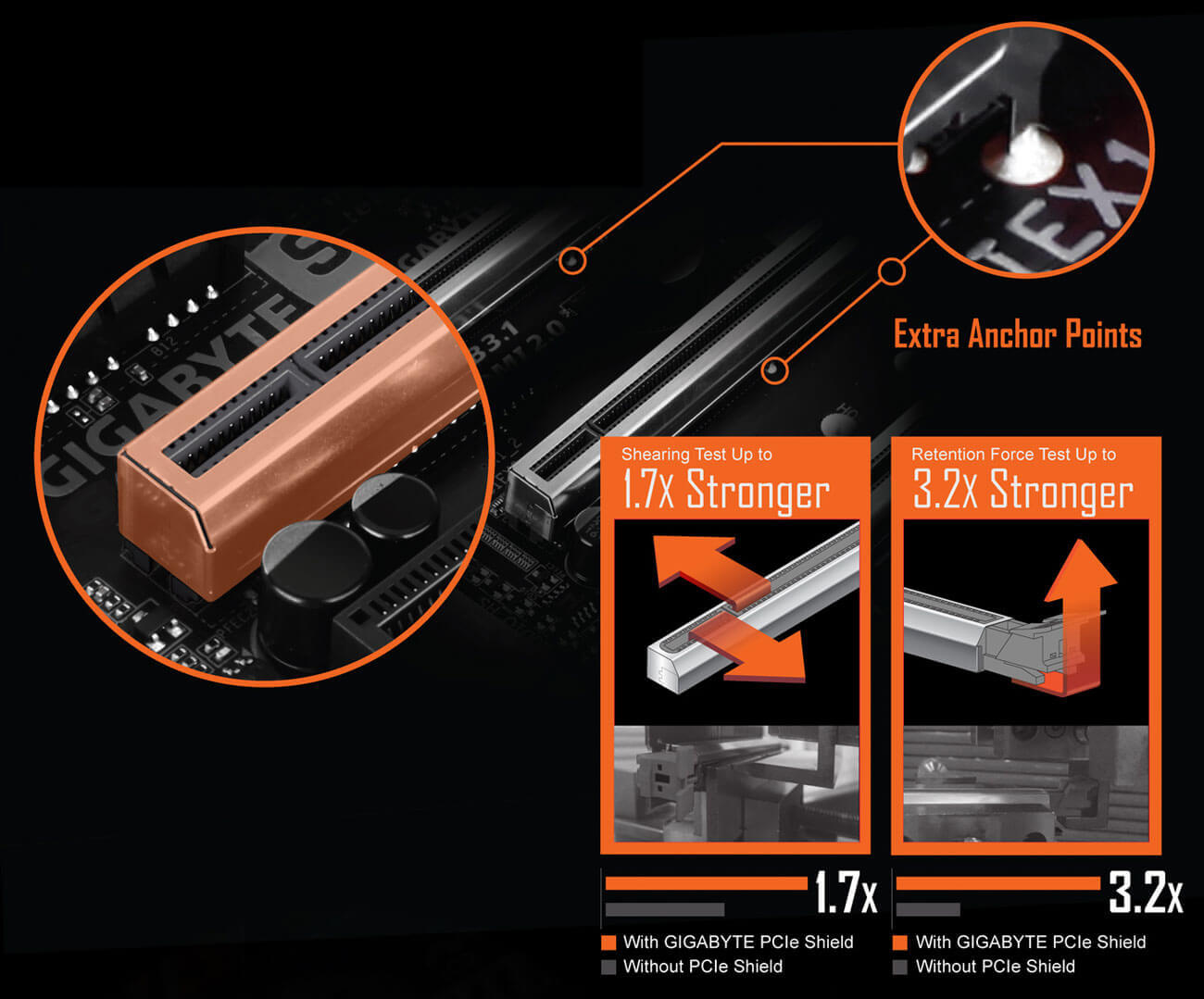

Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces
the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting
and plate bending, in addition to preventing any possible ESD interference
Solid Pin Power Connectors
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply
during CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
CPU-Free USB BIOS Updates
AORUS
Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or
Memory needing to be installed.
Updating your BIOS on your AORUS motherboard
can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS
on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to
boot. A LED next to the EC controller will notify you once the procedure is complete and you are
ready to boot your system normally.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. Z390 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.
GIGABYTE BIOS & APP CENTER
BIOS
APP CENTER
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click
is all it takes to automatically overclock your system, giving an added performance boost when
you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your system's behavior; these are the possibilities of the System Information
Viewer.
Fan Pin Headers
FAN / Water Pump Pin Headers
Internal Temperature Sensors
External Temperature Sensors
OC Touch Panel
AORUS
Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or
Memory needing to be installed.
