Performance . Stability
GIGABYTE M.2 PCIe SSD
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10.
Breaking the barriers of SATA limitations (512GB)
Outstanding performance

  1. GIGABYTE M.2 PCIe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
    1. Sequential read speeds up to 1550 MB/s.
    2. Sequential write speeds up to 850 MB/s.
  2. GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

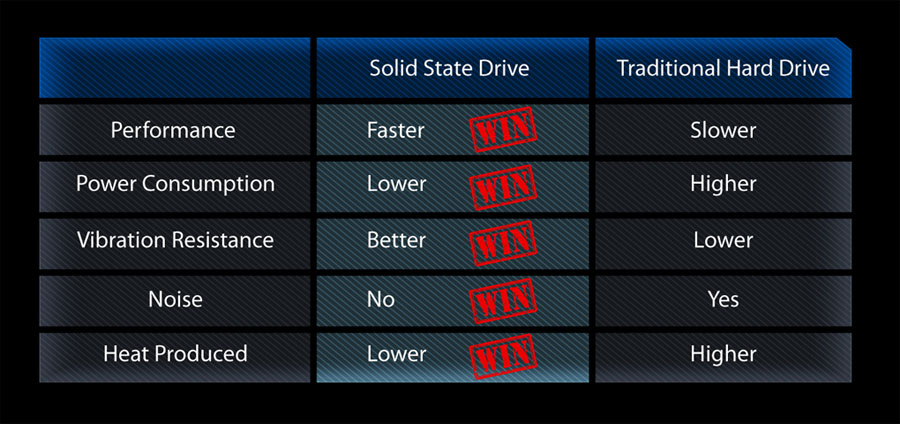

Solid State Drive VS. Traditional Hard Drive
  1.
  2. Performance
  3. Power Consumption
  4. Vibration Resistance
  5. Noise
  6. Heat Produced
  1. Solid State Drive
  2. Faster
  3. Lower
  4. Better
  5. No
  6. Lower
  1. Traditional Hard Drive
  2. Slower
  3. Higher
  4. Lower
  5. Yes
  6. Higher

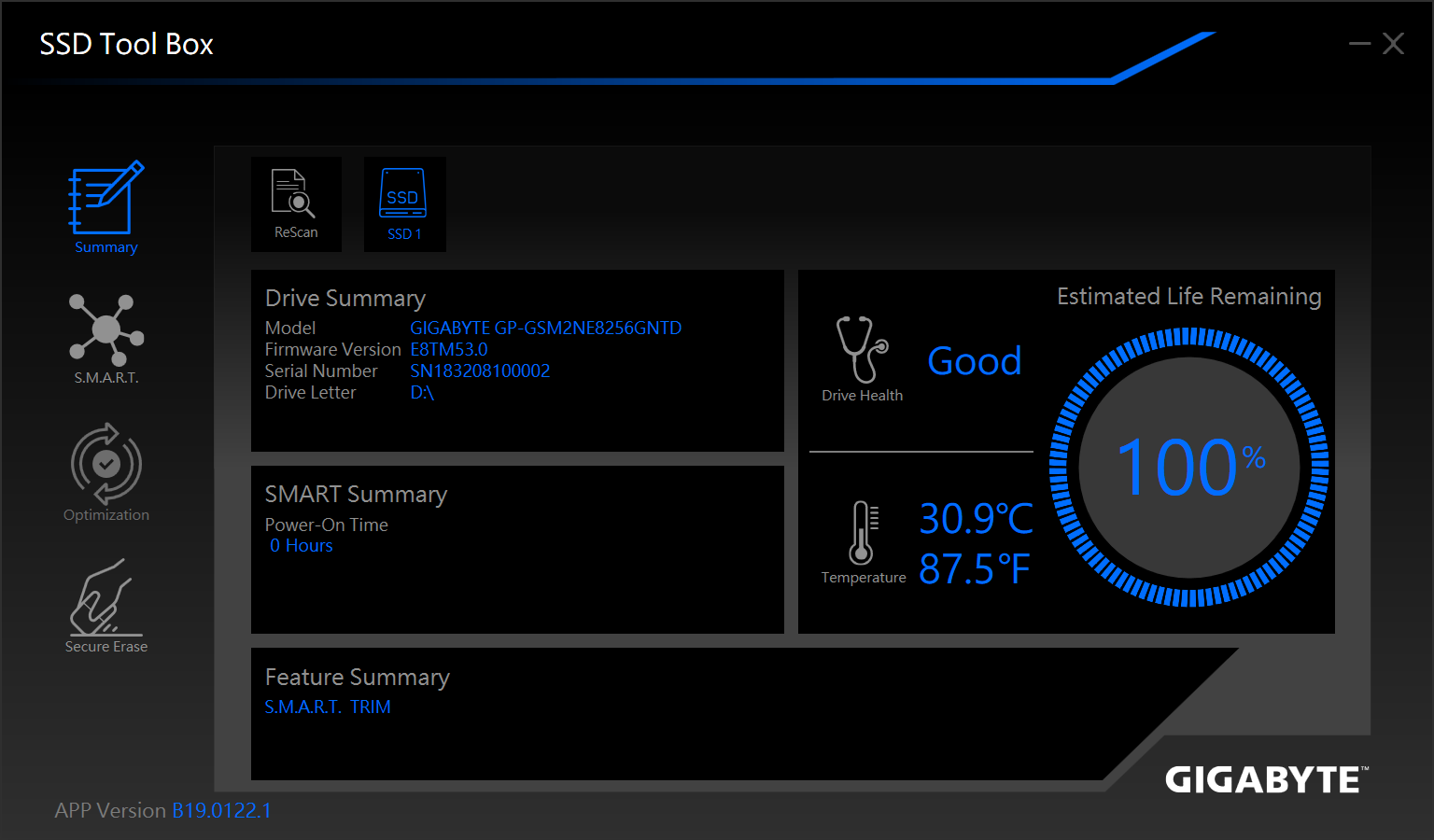

SSD Tool Box

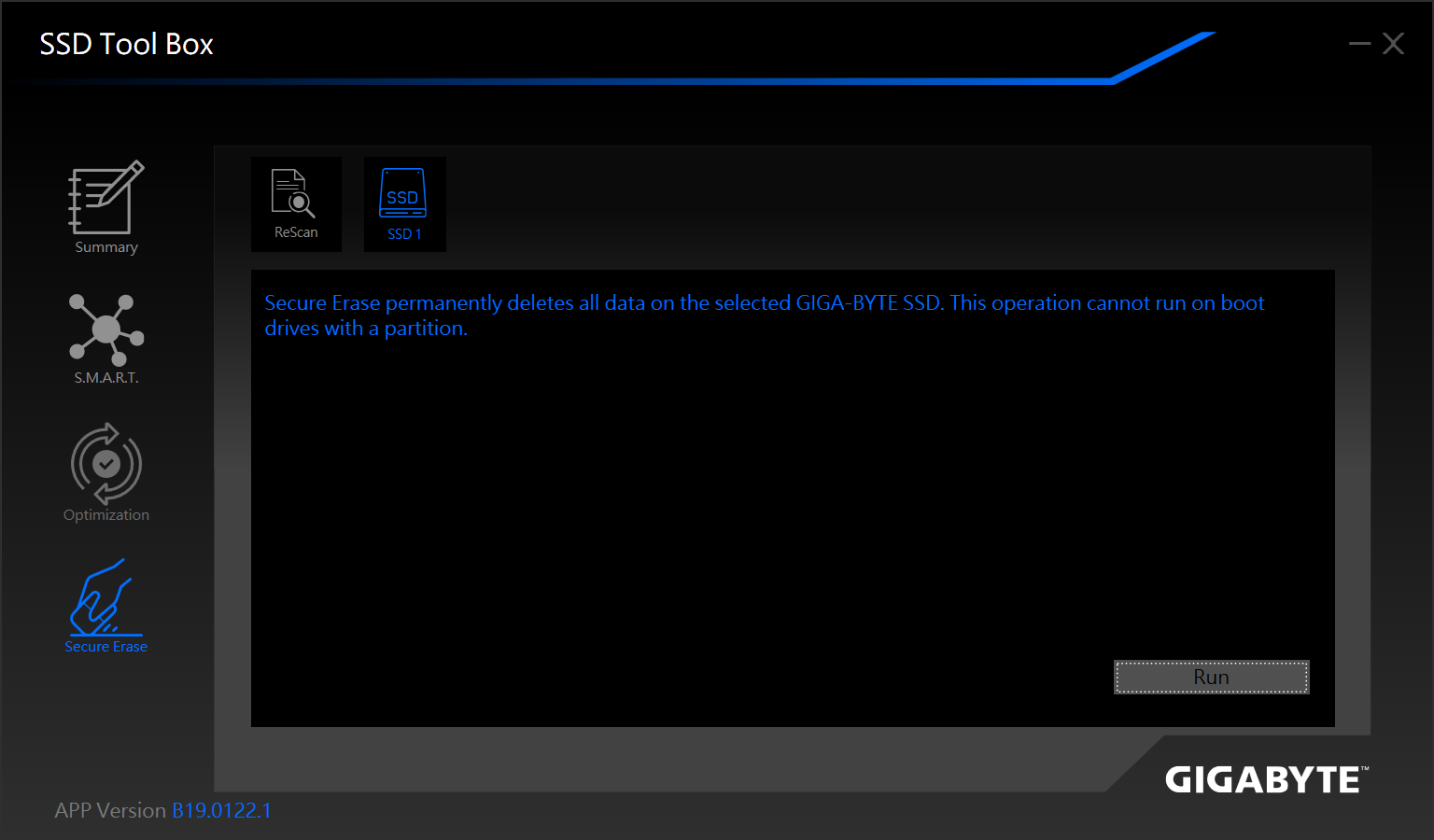

The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
SSD tool box function may vary by model
Reliability You Can Trust - 3 Years Limited Warranty
GIGABYTE SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 3 years or 400 TBW** limited warranty***.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.
** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
*** 3 years or 400 TBW, whichever comes first.
**** TBW is evaluated by JEDEC workload standard.
GIGABYTE M.2 PCIe SSD

Capacity* Model Sequential Read MB/s**
(Up to)		 Sequential Write MB/s**
(Up to)		 Random Read IOPS**
(Up to)		 Random Write IOPS**
(Up to)
128GB GP-GSM2NE8128GNTD 1100 500 90K 100K
256GB GP-GSM2NE8256GNTD 1200 800 80K 150K
512GB GP-GSM2NE8512GNTD 1550 850 120K 160K
* Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
** Speeds based on internal testing. Actual performance may vary.
