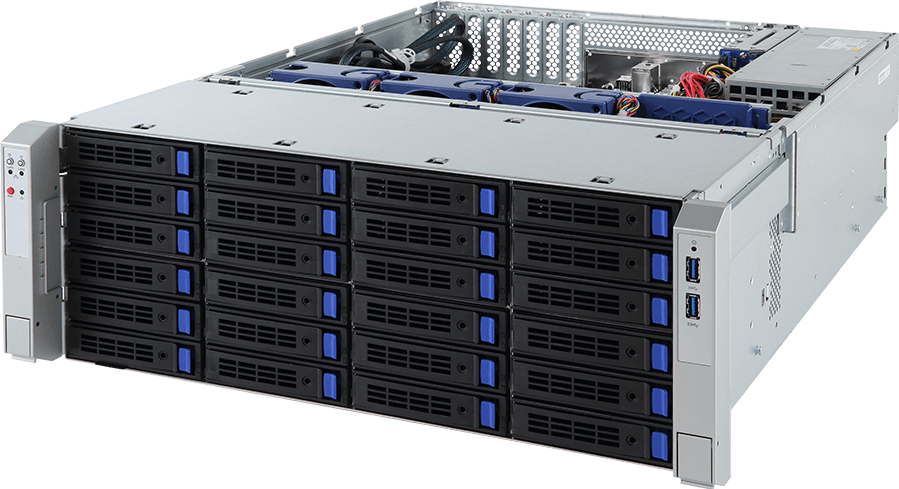

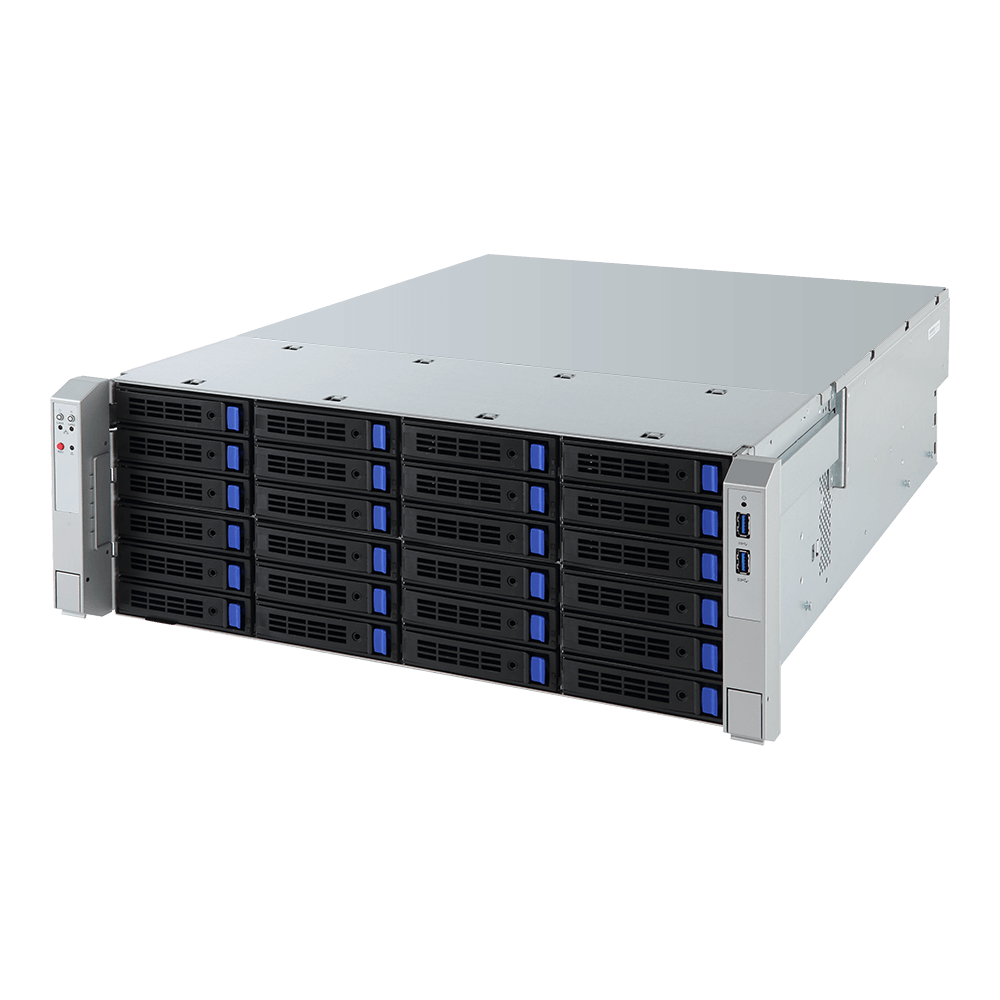

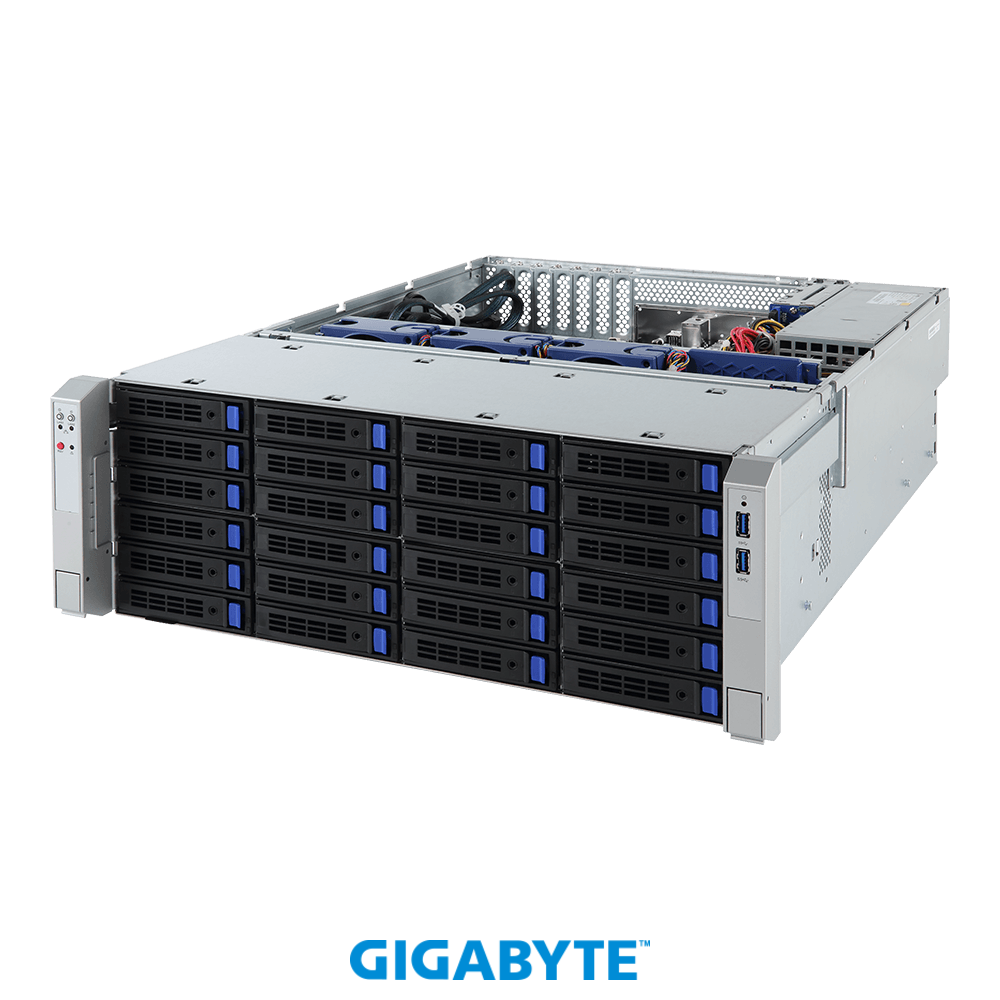

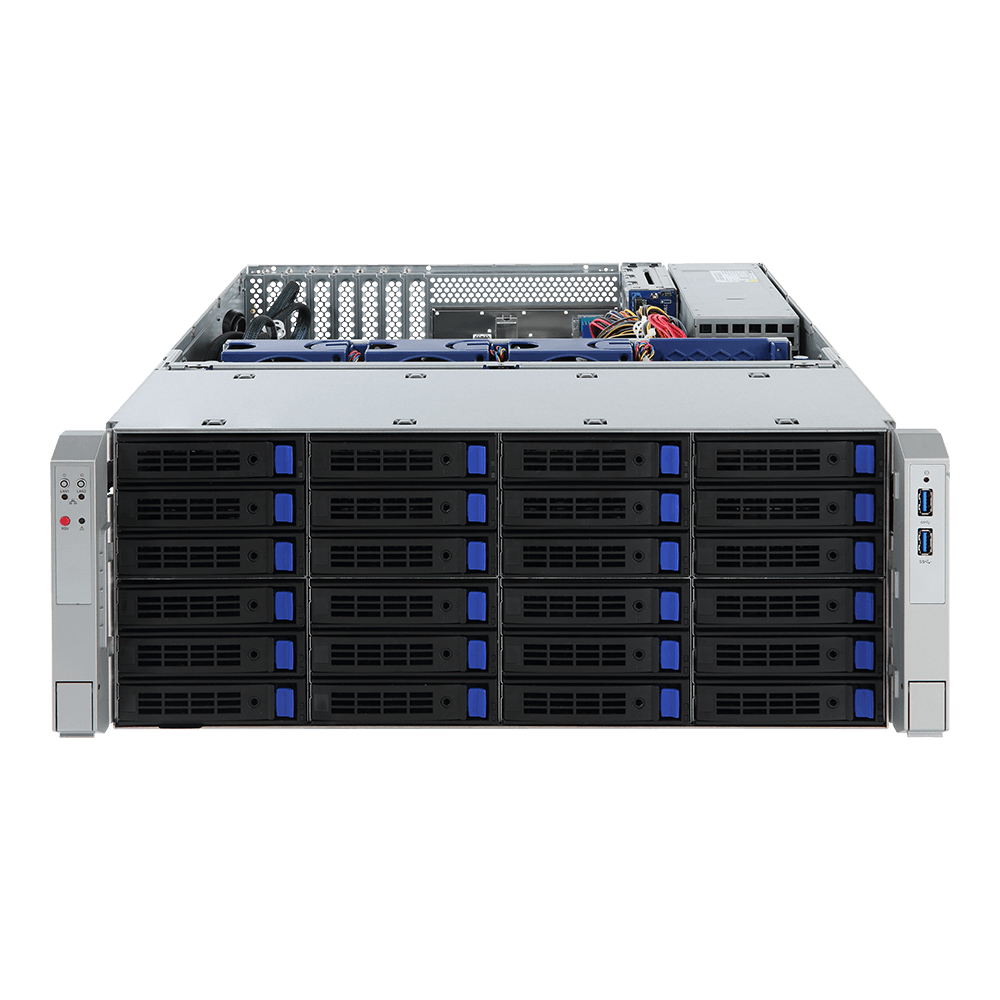

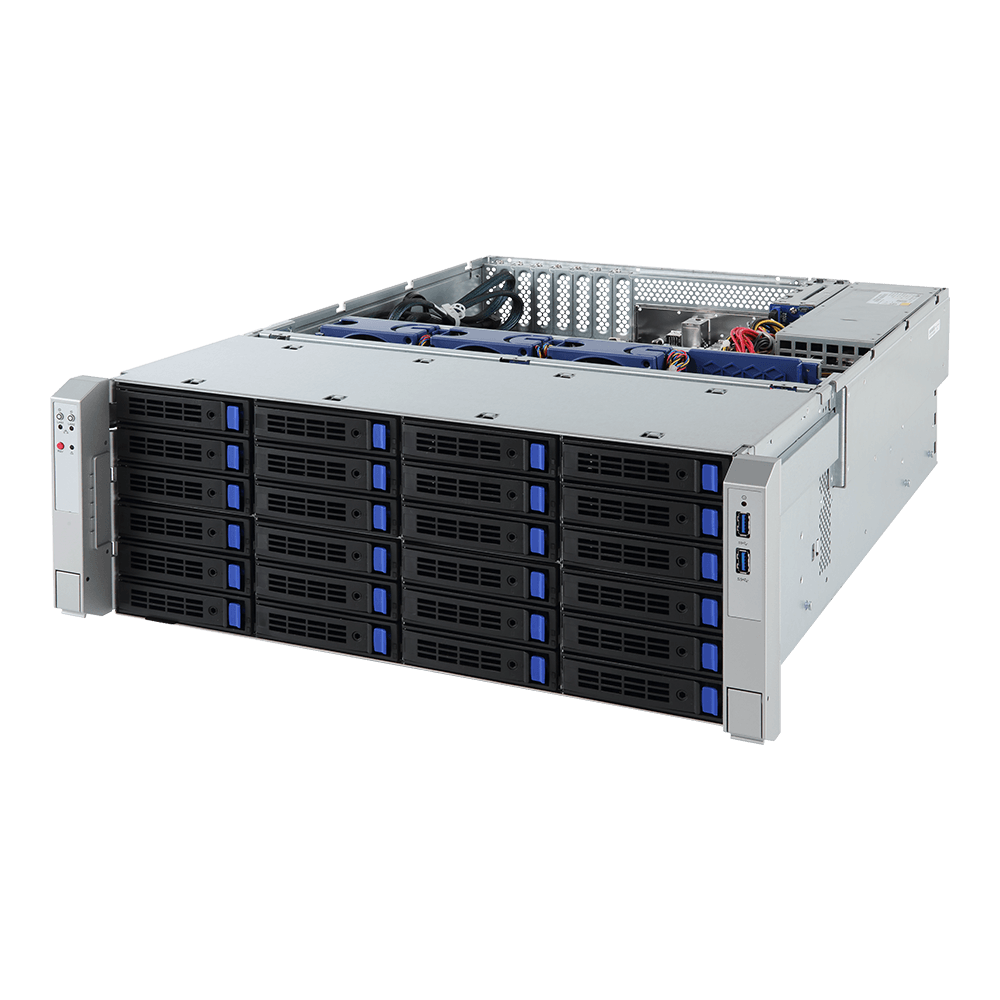

- S451-Z30
- AMD EPYC™ 7003 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
- 1 x dedicated management port
- 36 x 3.5" SATA/SAS hot-swap HDD/SSD bays
- 2 x 2.5" SATA hot-swap SSD for booting device
- SAS expander with 12Gb/s transfer speed
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
- Aspeed® AST2500 remote management controller
- Dual 1200W 80 PLUS Platinum redundant power supply
- Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
482.6 x 177 x 625
482.6 x 177 x 625

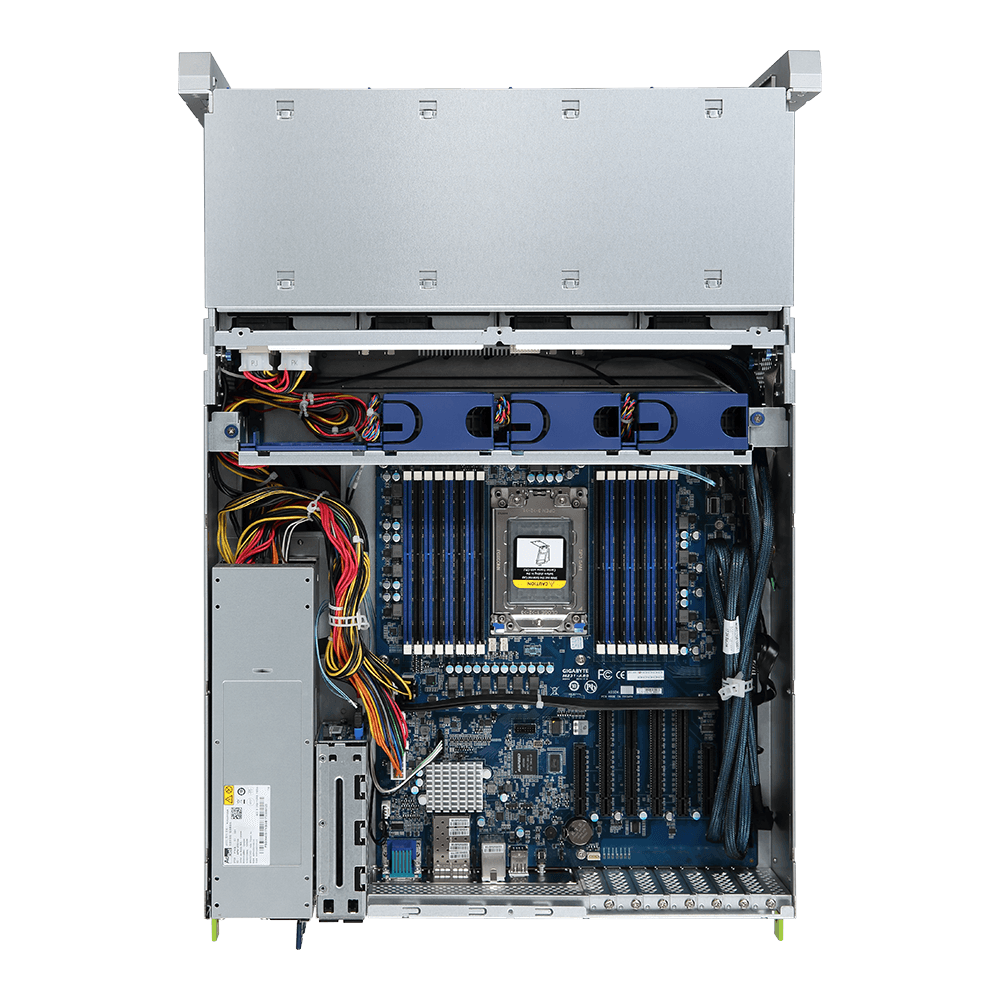

Motherboard
MZ31-AR0 Rev. 3.0
CPU
AMD EPYC™ 7003 series processor family
Single processor, 7nm
Up to 32-core, 64 threads
TDP up to 155W
Compatible with AMD EPYC™ 7002 series processor family
Single processor, 7nm
Up to 32-core, 64 threads
TDP up to 155W
Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
Front side: 24 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side: 12 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side booting device bay: 2 x 2.5" hot-swappable SSD bays*
NOTE:
* For rear side 2.5" bays support Solid State Drives only due to thermal consideration
2 x Broadcom SAS3x36R expanders
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
2 x SAS/SATA drives on rear side
SAS card is required to enable the drive bays
Suggested 12Gb/s SAS cards:
CRA4648
CSA4648
Rear side: 12 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side booting device bay: 2 x 2.5" hot-swappable SSD bays*
NOTE:
* For rear side 2.5" bays support Solid State Drives only due to thermal consideration
2 x Broadcom SAS3x36R expanders
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
2 x SAS/SATA drives on rear side
SAS card is required to enable the drive bays
Suggested 12Gb/s SAS cards:
CRA4648
CSA4648
SAS
Depends on SAS add-on Card
RAID
Depends on SAS add-on Card
Peripheral Drives
N/A
Expansion Slots
Slot_7: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen3 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
2 x SFP+
2 x RJ45
1 x MLAN
1 x ID button with LED
2 x LAN activity LEDs
1 x VGA
2 x SFP+
2 x RJ45
1 x MLAN
1 x ID button with LED
2 x LAN activity LEDs
Backplane Board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ + 12V/ 80.5A + 12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc Input + 12V/ 97A + 12Vsb/ 3A
DC Input: - 240Vdc/ 6A DC Output: - Max 1000W/ 100-240V~ + 12V/ 80.5A + 12Vsb/ 3A - Max 1200W/ 200-240V~ or 240Vdc Input + 12V/ 97A + 12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
7 x 80x80x38mm (9,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
843 x 610 x 290 mm
Packaging Content
1 x S451-Z30
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
- Barebone package: 6NS451Z30MR-00 Rev. B00
- Motherboard: 9MZ31AR0NR-00 Rev. 3.0
- Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_Front_24-port: 25FBZ-RS4240-I1R
- Back plane board_Rear_12-port: 25FBZ-RS2121-I1R
- Back plane board_Rear_2*2.5"-port: 25FBZ-RA1020-I1R
- Fan module: 25ST2-88382C-D0R
- 1200W Power supply: 25EP0-212007-F3S
- Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_Front_24-port: 25FBZ-RS4240-I1R
- Back plane board_Rear_12-port: 25FBZ-RS2121-I1R
- Back plane board_Rear_2*2.5"-port: 25FBZ-RA1020-I1R
- Fan module: 25ST2-88382C-D0R
- 1200W Power supply: 25EP0-212007-F3S
