D120-C20
Discontinued
1U 16-bay Storage Rackmount Server
Storage Rackmount Server
- Intel® Xeon® processor D-1541
- 4 x DIMM slots, Dual channel, DDR4 2400/2133/1866/1600MHz
- 16 x 3.5" HDD slots
- Supports SATA III 6Gb/s via PMC PM8069 controller
- Supports software RAID 0,1,10,5
- 2 x 10GbE SFP+ LAN ports (Intel® X552)
- 2 x GbE LAN ports (Intel® I210)
- Aspeed® AST2400 management controller
- 1 x 400W 80 PLUS Gold 100~240V AC PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 867 (mm)
Motherboard
MC20-S10
CPU
Intel® Xeon® D-1541 processor 2.1GHz
Up to 2.7GHz with Intel® Turbo Boost Technology
8 cores, 16 threads 12MB cache 45W TDP
8 cores, 16 threads 12MB cache 45W TDP
Socket
1 x FCBGA 1667
Chipset
SoC
Memory
4 x DIMM slots
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC UDIMM modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
2400/2133/1866/1600 MHz
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC UDIMM modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
2400/2133/1866/1600 MHz
LAN
2 x 10GbE SFP+ LAN ports (Intel® X552)
2 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage

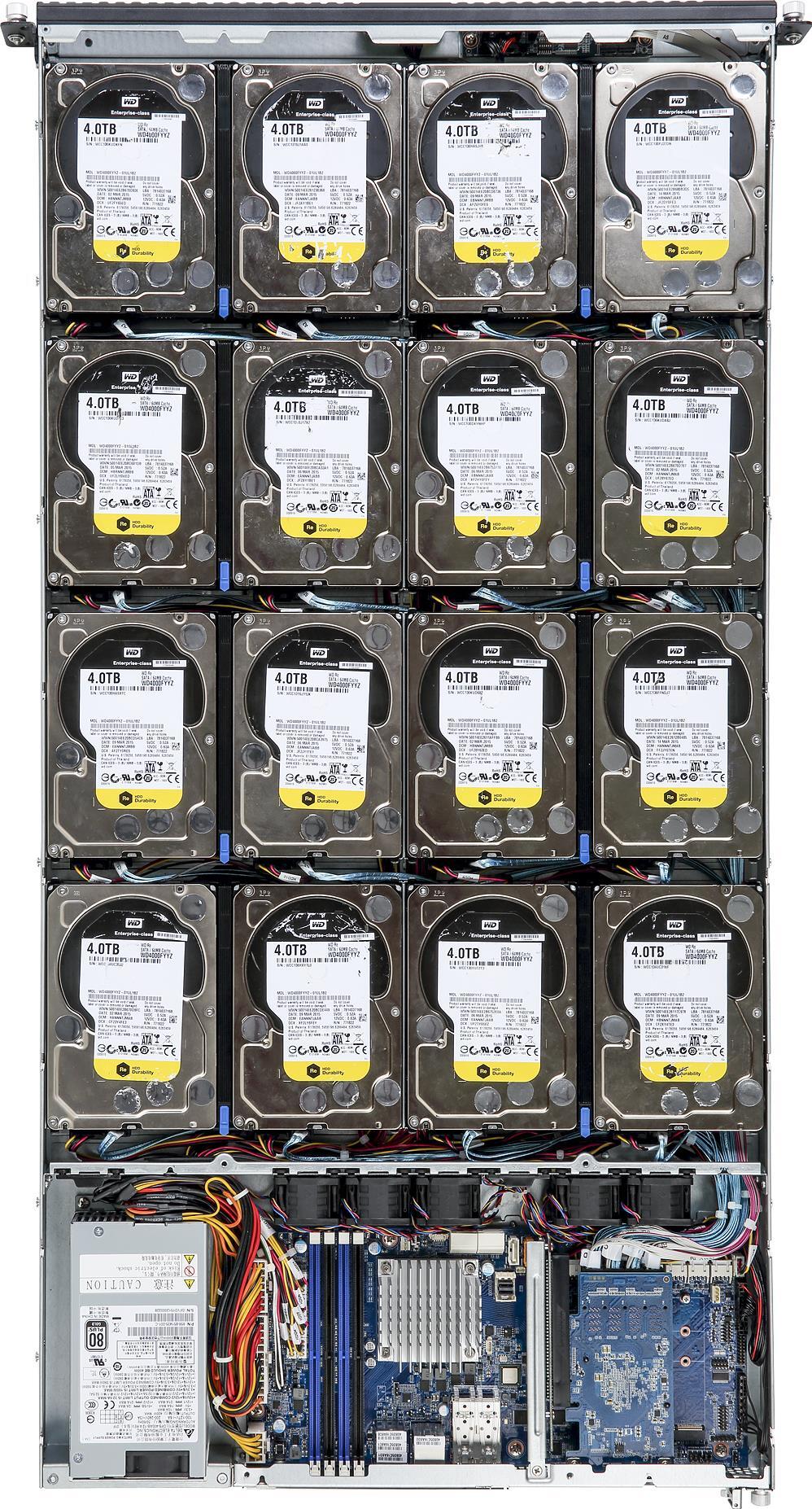

16 x 3.5" SATA drives
RAID
-
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) connector
Half-length low-profile type
The slot is occupied by CSA313-G (PMC PM8069 16-port 12Gb/s)
1 x M.2 slot:
- M-key
- PCIe 3.0 x4 signal
- Supports NGFF-2280/2260/2242 cards
Half-length low-profile type
The slot is occupied by CSA313-G (PMC PM8069 16-port 12Gb/s)
1 x M.2 slot:
- M-key
- PCIe 3.0 x4 signal
- Supports NGFF-2280/2260/2242 cards

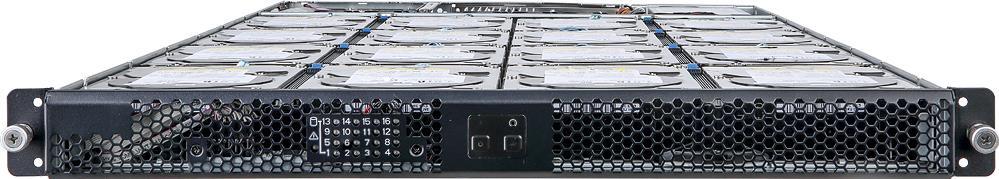

Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED

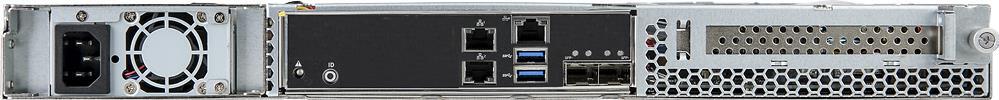

Rear I/O
2 x SFP+
3 x RJ45
2 x USB 3.0
1 x Power button with LED
1 x System status LED
3 x RJ45
2 x USB 3.0
1 x Power button with LED
1 x System status LED
Power Supply
1 x 400W PSU
80 PLUS Gold
100~240V AC
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2
Windows Server 2012 R2
Windows Server 2016
Red Hat Enterprise Linux 7.1 (x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1
Windows Server 2012 R2
Windows Server 2016
Red Hat Enterprise Linux 7.1 (x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Part Numbers
Barebone with rail kit package: 6ND120C20MR-00
Spare parts:
- Motherboard: 9MC20S10NR-00
- Hard Driver HBA: 9CSA313GNR-00
- Power Supply: 25EP0-20400H-D0S
- Rail Kit: 25HB2-3A0201-C0R
- VGA Cable: 25CRG-1K1600-B0R in option
Spare parts:
- Motherboard: 9MC20S10NR-00
- Hard Driver HBA: 9CSA313GNR-00
- Power Supply: 25EP0-20400H-D0S
- Rail Kit: 25HB2-3A0201-C0R
- VGA Cable: 25CRG-1K1600-B0R in option
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- VMware 6.0 U2
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Apr 01, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 10.0
1.9 MB
Apr 01, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver for Linux
Version : 4.2.1
0.41 MB
Aug 09, 2016
OS: Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 21.1
303.94 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
SAS
SAS
Version
Size
Date
PMC Smart Storage PM8069 Driver
Version : 20160412
21.08 MB
Jul 04, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64,VMware 6.0 U2,Windows Server 2016 64bit
PMC Smart Storage Administrator
Version : 2.50.14.5
28.45 MB
Mar 22, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64,Windows Server 2016 64bit
Adaptec maxView Strorage Manager
Version : B22270
786.14 MB
Mar 22, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64,Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
BIOS
Description
Version
Size
Date
1.Security update for 2019.2 Intel Platform Update (IPU)
[1] Update V-1 Microcode 0000001C
[2] Update V-2 Microcode 07000019
[3] Update Y-0 Microcode 0F000017
[4] Update SPS FW 03.00.03.059.0
[5] Update ACM SINIT v1.3.21
[1] Update V-1 Microcode 0000001C
[2] Update V-2 Microcode 07000019
[3] Update Y-0 Microcode 0F000017
[4] Update SPS FW 03.00.03.059.0
[5] Update ACM SINIT v1.3.21
Version : F08
12.9 MB
Nov 29, 2019
1. Upgrade AST2400 VBIOS v1.09.00
2. Update V-1 Microcode 0000001A
3. Update V-2 Microcode 07000017
4. Update Y-0 Microcode 0F000015
2. Update V-1 Microcode 0000001A
3. Update V-2 Microcode 07000017
4. Update Y-0 Microcode 0F000015
Version : F07
12.91 MB
Aug 16, 2019
1. Update V-1 Microcode 00000017
2. Update V-2 Microcode 07000013
3. Update Y-0 Microcode 0F000012
2. Update V-2 Microcode 07000013
3. Update Y-0 Microcode 0F000012
Version : F06
12.99 MB
Jul 20, 2018
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Aug 01, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Ubuntu,Windows Server 2016 64bit
