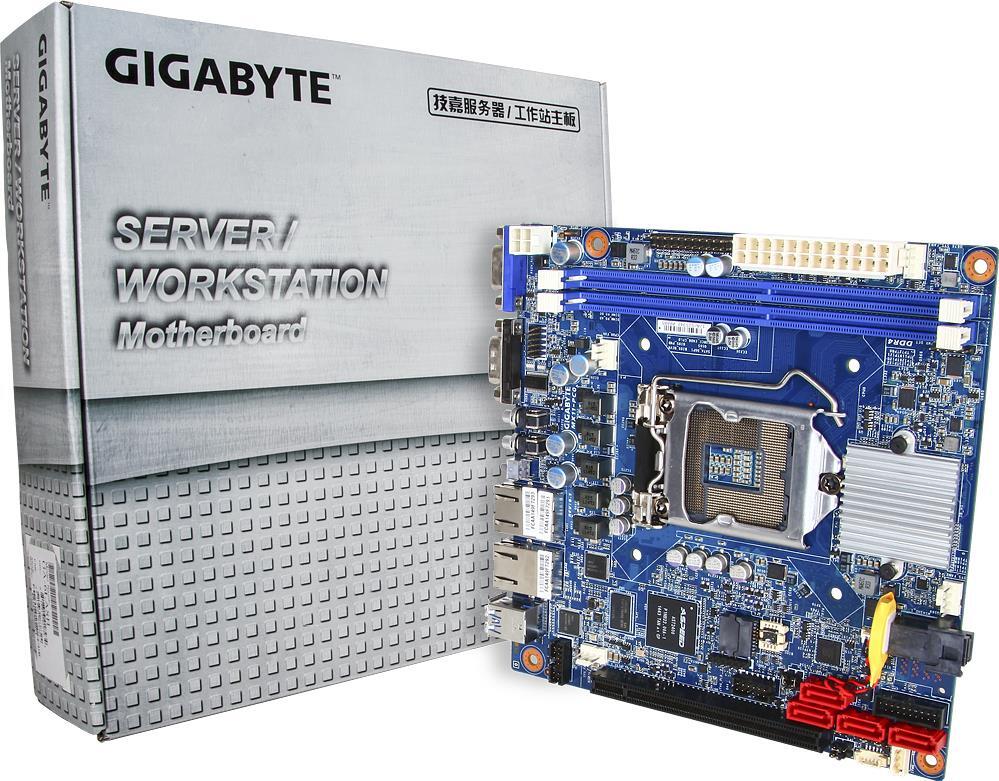

- MX11-PC0
MX11-PC0
Discontinued
Intel® C232 chipset
- Mini-ITX form factor
- Intel® Xeon® processors E3-1200 V6/V5 product family
- Intel® C232
- 2 x UDIMM slots, DDR4 2400MHz
- 2 x GbE LAN ports (Intel® I210)
- 1 x NVMe port
- 4 x SATA III 6Gb/s
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V6/V5 product family
Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors
Socket
1 x LGA 1151
Chipset
Intel® C232
Memory
2 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 32GB
Supported speeds: 2400/2133 MHz
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 32GB
Supported speeds: 2400/2133 MHz
LAN
2 x GbE LAN ports (Intel® I210)
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
NVMe
1 x Mini-SAS HD connector (for 1 x NVMe device)
PCIe Gen3 x4 bus
SAS
-
SATA
4 x SATA III 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) connector
1 x Mini-SAS HD connector
1 x Mini-SAS HD connector
Internal I/O
1 x 24-pin ATX main power connector
1 x 4-pin power connector
4 x SATA III 6Gb/s ports
1 x Mini-SAS HD port
1 x CPU fan header
3 x System fan headers
1 x USB 3.0 header
1 x Front VGA header
1 x TPM header
1 x Front panel header
1 x JTAG PLD header
1 x Chassis intrusion header
1 x Power DET header
1 x IPMB connector
1 x 4-pin power connector
4 x SATA III 6Gb/s ports
1 x Mini-SAS HD port
1 x CPU fan header
3 x System fan headers
1 x USB 3.0 header
1 x Front VGA header
1 x TPM header
1 x Front panel header
1 x JTAG PLD header
1 x Chassis intrusion header
1 x Power DET header
1 x IPMB connector
Rear I/O
1 x Serial
1 x VGA
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button
2 x RJ45
2 x USB 3.0
1 x VGA
1 x ID button with LED
1 x Power button with LED
1 x Reset button
1 x NMI button
2 x RJ45
2 x USB 3.0
TPM
1 x TPM header
OS Compatibility
Windows Server 2012 R2
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Windows Server 2016
RHEL 7.2 (x64)
Ubuntu 12.04 LTS x64
Ubuntu 14.04 LTS x64
SUSE Linux Enterprise Server 11.4 x64
SUSE Linux Enterprise Server 12 x64
VMware 5.5 U3 (x64)
VMware 6.0 U1 (x64)
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 4-pin power connector
1 x 4-pin power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MX11-PC0
1 x I/O shield
1 x Quick start guide
2 x SATA III 6Gb/s cables
Box dimensions: 233 x 214 x 62 mm
1 x I/O shield
1 x Quick start guide
2 x SATA III 6Gb/s cables
Box dimensions: 233 x 214 x 62 mm
Bulk Packaging Content
10 x MX11-PC0
10 x I/O shields
10 x I/O shields
Reference Numbers
Retail: 9MX11PC0MR-00
Bulk: 9MX11PC0NR-00
