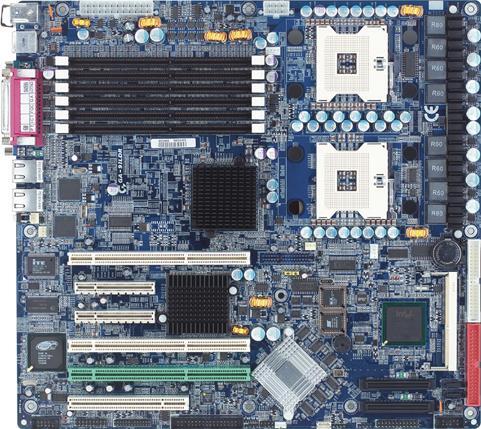

GA-9ILDR
Discontinued
- Intel® E7520 MCH, Intel® ICH5R IO controller hub, Intel® 6700 PXH 64Bit PCI-X Hub
- Intel®new dual Xeon™(Nocona) processor with front side bus 800MHz and Hyper Threading technology
- ECC/registered DDR-266/333 memory in 6 DIMMs
- 2 x PCI-E slot by 4 x 1 and by 4 x 1, 1x PCI-X 64bit/133MHz, 2 x PCI-X 64bit/100MHz (Green one support LSI ZCR), 2 x PCI 32bit/33MHz
- LSI®1030 chipset supports RAID 1, RAID 1E
- Support for Zero-Channel RAID with LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
- Dual Broadcom® BCM5721 Gigabit Ethernet
- ITE® IT8712F-A Super I/O
- ATX 12”x13” ETAX form factor
SPECIFICATIONS
CPU
- Supports Dual New Intel® Xeon™(Nocona) CPUs up to 4.0 GHz
- Supports 800 Mhz FSB
- Socket 604
Chipset
- Intel® E7520 MCH
- Intel® ICH5R IO controller hub
- Intel ®6700PXH 64 bit PCI-X hub
LAN
- Dual Broadcom® BSM5721 Gigabit Ethernet
Video
- Build in ATI® Rage XL with 8M SDRAM on board
IDE / SCSI
- Inte® ICH5R chipset
- LSI® 1030 chipset
RAID
- LSI®1030 chipset supports RAID 1, RAID 1E
- Support for Zero-Channel RAID w/ LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
Expansion Slots
- 2 x PCI-X slot supports 64/100M H z (3.3V)
- 1 x PCI-X slot supports 64/133M H z (3.3V)
- 2 x PCI-E slot by 4 x 1 and by 4 x 1
- 1 x PCI slot support 32/33M H z
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
OS
QVL
- All
- All
- Windows XP 32bit
- Windows Server 2003 32bit
- Windows Me
- Windows 98
- Windows 2000
Chipset Update Patch
Chipset Update Patch
Version
Size
Date
- Intel E7520/ICH5R/6700 PXH Chipset Dirver
- Windows 64 bit OS Dirver
- USB 2.0 Driver
Version : 6.2.0.1003
17.62 MB
Nov 10, 2004
OS: Windows 98,Windows Me,Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
Host RAID
Host RAID
Version
Size
Date
- SCSI Host RAID Driver
Version : 3.5.0.2568
0.33 MB
Nov 24, 2005
OS: Windows Server 2003 32bit
SCSI
SCSI
Version
Size
Date
- LSI 1030 SCSI Device Drivers
- For 32 bit and 64 bit OS
Version : 1.10.00
0.24 MB
Nov 10, 2004
OS: Windows Server 2003 32bit
- LSI 1030 SCSI Device Drivers
- For 32 bit and 64 bit OS
Version : 1.10.00
0.25 MB
Nov 10, 2004
OS: Windows XP 32bit
BIOS
Description
Version
Size
Date
- Base on 9ILDRNAS.F8
- Remove NAS string
- Add backboard HWM function
Version : F9
0.43 MB
May 04, 2009
- Fixed OS cannot be installed from LSI Mega SCSI card on 1st PCI Express slot
- Fixed system will halt at 25h if insert IBM 133 PCI-X Bridge RAID card in 3rd PCIX slot
- Fixed system sometimes reboot failed with IPMI module
- Fixed if connect low speed FAN to FAN3/4 connector, its speed will not be displayed in setup
Version : F6
0.34 MB
Aug 18, 2005
- Fixed memory information lost issue
- Fixed IPMI flage error caused of bluse screen issue
- Modify memory speed to DDR266 if DIMM number is over than 4
- ADD show backplane Fan Speed in BIOS setup
Version : F5a
0.32 MB
Aug 12, 2005
- Fix hang on RedHat-64bit 9.0 installation issue.
- Fix setup menu order wrong issue.
- Fix re-boot issue when using dual Nocona E-stepping CPU.
Version : F4
0.32 MB
Jul 27, 2005
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
