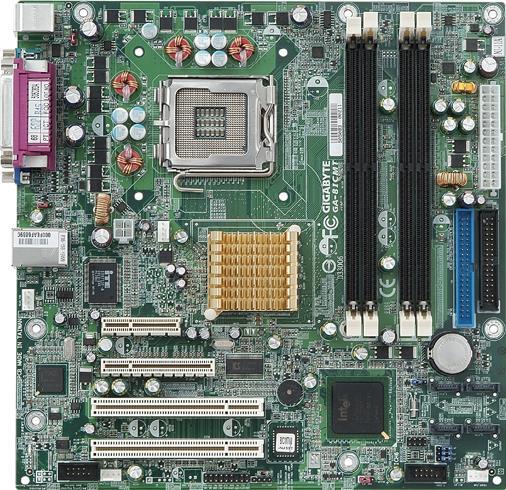

GA-8ICMT
Discontinued
- Intel® E7221, ICH6R chipsets
- Intel® Pentium Prescott Processor (LGA775, 800MHz FSB)
- Max. 4GB Dual Channel Un-Buffered (ECC) DDRII-400/533 MHz Memory in 4 DIMM Slots
- 1 PCI-Express X1, 1 PCI-Express X8, and 2 PCI 32Bit/33MHz
- Intel® 82541PI Taboriii GbE x 1(PCI)
- ITE®8712 Super I/O
- SATA x 4, ATA100 x 1
- MATX 9.6”Wx9.6”D, Power (24-Pin, 4-Pin 12V. Auxiliary), VRD 10.1
SPECIFICATIONS
CPU
- Single Intel® Pentium Prescott LGA 775 processor with L2 cache
- Supports 800MHz/LGA 775
Chipset
- Intel® MCH E7221
- Intel® ICH6R
LAN
- Built-in single Intel®82541PI Taboriii GbE (PCI)
Video
- Built-In Intel®MCH E7221 chipset
RAID
- Supports RAID 0,1
Expansion Slots
- 1 PCI-Express X1 Slot
- 1 PCI-Express X8 Slot
- 2 PCI 32bit/33MHz Slots
Rear I/O
- 2 x PS/2
- 1 x Parallel Port
- 2 x USB
- 1 x COM
- 1 x VGA
- 1 x LAN RJ45
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
OS
QVL
- All
- All
- Windows XP 64bit
- Windows XP 32bit
- Windows Server 2003 64bit
- Windows Server 2003 32bit
- Windows 2000
- SuSE Enterprise Server 9 64bit
- SuSE Enterprise Server 9 32bit
- RedHat Enterprise Linux 3
- RedHat AS2.1
- Default
Chipset Update Patch
Chipset Update Patch
Version
Size
Date
- Intel Chipset Driver
Version : 6.3.1007
2.53 MB
Jul 08, 2005
OS: Windows 2000,Windows XP 32bit
Host RAID
Host RAID
Version
Size
Date
- Adaptec Host RAID Driver
- For Windows 2000/XP/2003 operating system
Version : 6.00.075
0.18 MB
Jul 08, 2005
OS: Windows 2000,Windows XP 32bit
- Adaptec Host RAID Driver
- For Linux Red Hat AS2.1 operating system
Version : 6.0.0.075
1.41 MB
Jul 08, 2005
OS: RedHat AS2.1
- Adaptec Host RAID Driver
- For Red Hat Enterprise Linux ES3 Update 3 operating system
Version : 6.0.0.075
1.41 MB
Jul 08, 2005
OS: Default
- Adaptec Host RAID Driver
- For SuSE Enterprise Server 9 32 bit operating system
Version : 6.0.0.075
1.41 MB
Jul 08, 2005
OS: SuSE Enterprise Server 9 32bit
- Adaptec Host RAID Driver
- For SuSE Enterprise Server 9 64 bit operating system
Version : 6.0.0.075
1.41 MB
Jul 08, 2005
OS: SuSE Enterprise Server 9 64bit
- Adaptec ICH6R HotRAID Driver
- For SuSE Enterprise Server 9 EM64T operating system
Version : 6.00.075
1.41 MB
Oct 04, 2005
OS: SuSE Enterprise Server 9 64bit
- Adaptec ICH6R HostRAID Driver
- For RedHat Enterprise Linux 3 EM64T update3 operating system
Version : 6.00.075
1.41 MB
Oct 04, 2005
OS: RedHat Enterprise Linux 3
LAN
LAN
Version
Size
Date
- Intel LAN Driver
- For Windows 64bit operating system
Version : 8.1.8.0
9.91 MB
Jul 08, 2005
OS: Windows 2000,Windows XP 64bit,Windows Server 2003 64bit
- Intel LAN Driver
- For Windows 32bit operating system
Version : 8.1.8.0
93.81 MB
Jul 08, 2005
OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
VGA
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows XP 32bit
- Windows Server 2003 32bit
- Windows 2000
- Default
Utility
Description
Version
Size
Date
- RAID Utility for Windows 64bit operating system
Version : b863
30.96 MB
Jul 12, 2005
OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
- Adaptec Storage Manager
- For Windows 2003/XP/2000 operating system
Version : 2.12.00(863)
30.96 MB
Jul 07, 2005
OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit
- Adaptec Storage Manager
- For Linux 32bit operating system
Version : b863
37.14 MB
Jun 30, 2005
OS: Default
Manual
Description
Version
Size
Date
Description
Version
Size
Date
Description
Version
Size
Date
