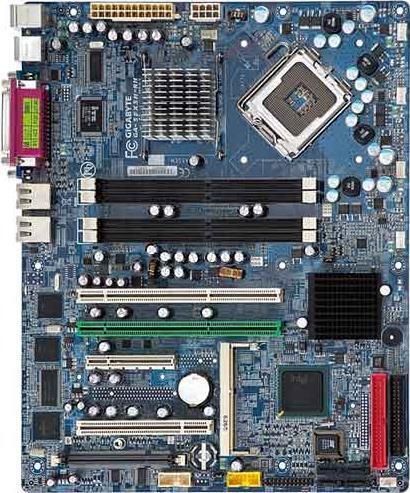

GA-5EXSH-RH
Discontinued
- Fully integrate with Mukilteo-2 + ICH7R + PXH-V chip
- Support single Intel® Pentium 4/Pentium D process with Intel® 3000 chipset
- Maximum 8GB ECC un-buffered DDR2 533/667
- One PCI-E x 8 ,two PCI-X 100MHz and one PCI 33MHz slot
- Full-Length PCI card support
- Intel® software RAID 0,1,10,5(Windows only)
- Dual Intel® 82573 GbE controls
- Optional IPMI 2.0 module with GSMT
- Support on board four SATA connector
- VIA daughter card GC-SAS01-RH(LSI SAS 1068) for SAS function
- Standard FDD x 1 and IDE x 1 connector
- Box-Header x 2 for USB port extension
SPECIFICATIONS
CPU
- Supports Intel® Pentium®4/D (Smithfield,Cedra Mill,Presler,Conroe,Kentsfield,Xeon) Processors
- Socket LGA775
- Supports 800/1066MHz FSB
Chipset
- Intel® 3000
- Intel® ICH7R
- Intel® PXH-V
Video
- XGI® Volari Z7 with 16MB VRAM
RAID
- Built in Intel®ICH7R with Software RAID 0,1,10, 5
Expansion Slots
- 1x PCI-E x8
- 2 x PC-X 64/100~133MHz
- 1 x PCI 32/33MHz
Rear I/O
- 2 x PS/2
- 3 x USB 2.0 (1 by cable)
- 1 x Parallel
- 2 x COM (1 by cable)
- 1 x VGA
- 2 x LAN RJ45
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
OS
QVL
- All
- All
- Windows XP 64bit
- Windows XP 32bit
- Windows Server 2003 64bit
- Windows Server 2003 32bit
- SuSE Enterprise Server 9 SP3 64bit
- SuSE Enterprise Server 9 SP3 32bit
- RedHat Enterprise Linux 4
Default
Default
Version
Size
Date
- Intel LAN Driver
- Windows Sever 2003 R2 32/64bit
- RedHat Enterprise Linux ES4 Update 3
Version : 16.8.1
109.09 MB
Feb 14, 2012
OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,RedHat Enterprise Linux 4,SuSE Enterprise Server 9 SP3 32bit,SuSE Enterprise Server 9 SP3 64bit,Windows Server 2003 64bit
Chipset Update Patch
Chipset Update Patch
Version
Size
Date
- Intel INF Driver
- For Windows Sever 2003 R2 32/64bit operating system
Version : 8.1.1.1001
0.97 MB
Sep 20, 2006
OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
- Intel ICH7R SATA RAID Driver
- Windows Sever 2003 R2 32/64bit
Version : 5.5.0.1019
18.7 MB
Sep 20, 2006
OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
VGA
VGA
Version
Size
Date
- XGI VGA Driver
Version : 1.03
4.14 MB
Sep 20, 2006
OS: Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
