GA-2DASL

Discontinued

Rev. 1.0

AMD Opteron 4000 Series

Support single AMD Opteron 4000 Series processors
One Intel 82574L GbE controller
4 DIMMs of unbuffered ECC DDR3 memory, up to 32Gb
Rich expansion platform, with one high speed PCIe 2.0 x16, one PCIe x8, one PCIe x4 and one PCIe x1 slots
6 x SATA 3Gb/s connectors
Micro-ATX form factor for a wide choice of chassis

SPECIFICATIONS

Form Factor

171 x 171 mm

CPU

1 x AMD Opteron 4000 Series (socket C32)

Chipset

AMD SR5670 + AMD SP5100

Memory

4 x 2 channels DDR3 slots
Supports ECC UDIMM
1333/ 1066MHz

LAN

1 x GbE controller (Intel 82574L)

Video

ASPEED 1300 128MB DDR3

SATA

6 x SATA 3Gbp/s

RAID

Intel SW RAID 0/ 1/ 10

Expansion Slots

1 x PCIe 2.0 x16
1 x PCIe 2.0 x8 (x8 mechanical)
1 x PCIe 2.0 x4 (x4 mechancial)
1 x PCIe 2.0 x4 (x1 mechancial)

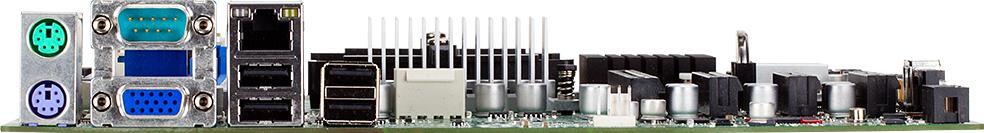

Rear I/O

1 x COM
1 x VGA
4 x USB 2.0
1 x RJ45
2 x PS/2

Board Management

HW Monitor

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
