XV23-ZX0-AAJ1

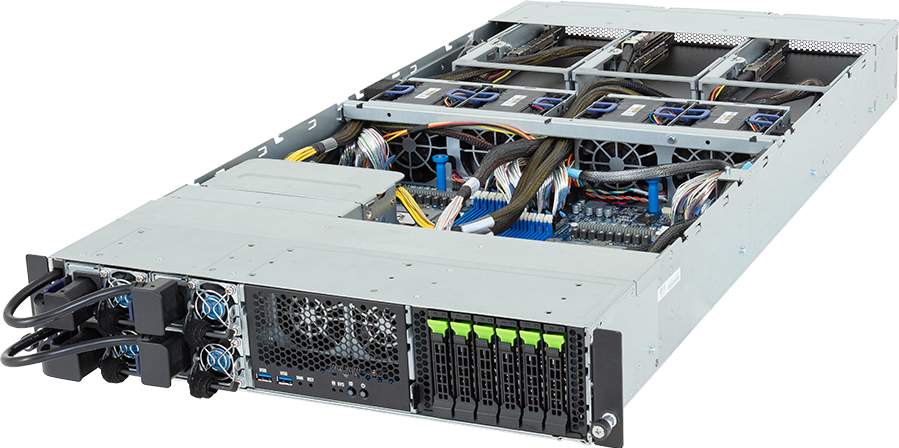

NVIDIA MGX™ Server - AMD EPYC™ 9005/9004 - 2U DP NVIDIA OVX™ 4 x PCIe Gen5 GPUs
- Optimized for NVIDIA OVX™ L40S Server with 4 GPUs configuration
- NVIDIA MGX™ modular server design
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 6 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 3 x M.2 slots with PCIe Gen3 x2 and x1 interface
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 3 x FHFL PCIe Gen5 x16 slots
- 4 x 2000W 80 PLUS Titanium redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 900
438 x 87 x 900
Motherboard
MZX3-MG0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Rear (I/O board - CFPX141):
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
6 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 2 x NVMe from CPU_1)
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
Internal M.2 (I/O board - CFPX141):
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
[1] Storage card is required to support SATA and SAS drives.
6 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 2 x NVMe from CPU_1)
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
Internal M.2 (I/O board - CFPX141):
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
[1] Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
PCIe Cable x 7:
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_0
- 1 x FHFL x16 (Gen5 x16), from CPU_1
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_0
- 1 x FHFL x16 (Gen5 x16), from CPU_1
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
I/O board - CFPX141:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
4 x 2000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Control
- LDAP / AD Support
- Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x80mm (15,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
TBD
Packaging Content
1 x XV23-ZX0-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 620mm)
2 x GPU power cables (12VHPWR, 750mm)
1 x 3-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 620mm)
2 x GPU power cables (12VHPWR, 750mm)
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NXV23ZX0HR000ACJ1*
- Motherboard: 9MZX3MG0IR-000*
- 3-Section Rail kit (CMA not supported): TBD
- CPU heatsink: 25ST1-15320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBPX060: 9CBPX060NR-00*
- Fan module: 25ST2-888024-D0R/25ST2-888027-S1R
- I/O board with M.2 slots - CFPX141: 9CFPX141NR-00*
- DC-SCM board (A)+(B):
A) CDCX101: 9CDCX101NR-00*
B) CSC401: 9CSC401IR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 450mm): 25CRI-4500B0-Y4R
- GPU power cable (12VHPWR, 620mm): 25CRI-6200B0-Y4R
- GPU power cable (12VHPWR, 750mm): 25CRI-7500B0-Y4R
- Power supply: 25EP0-22000P-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-T76100-K0R
- Cable Management Arm: 25HB2-2AA700-K0R
- Motherboard: 9MZX3MG0IR-000*
- 3-Section Rail kit (CMA not supported): TBD
- CPU heatsink: 25ST1-15320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00*
- Backplane board - CBPX060: 9CBPX060NR-00*
- Fan module: 25ST2-888024-D0R/25ST2-888027-S1R
- I/O board with M.2 slots - CFPX141: 9CFPX141NR-00*
- DC-SCM board (A)+(B):
A) CDCX101: 9CDCX101NR-00*
B) CSC401: 9CSC401IR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 450mm): 25CRI-4500B0-Y4R
- GPU power cable (12VHPWR, 620mm): 25CRI-6200B0-Y4R
- GPU power cable (12VHPWR, 750mm): 25CRI-7500B0-Y4R
- Power supply: 25EP0-22000P-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-T76100-K0R
- Cable Management Arm: 25HB2-2AA700-K0R
