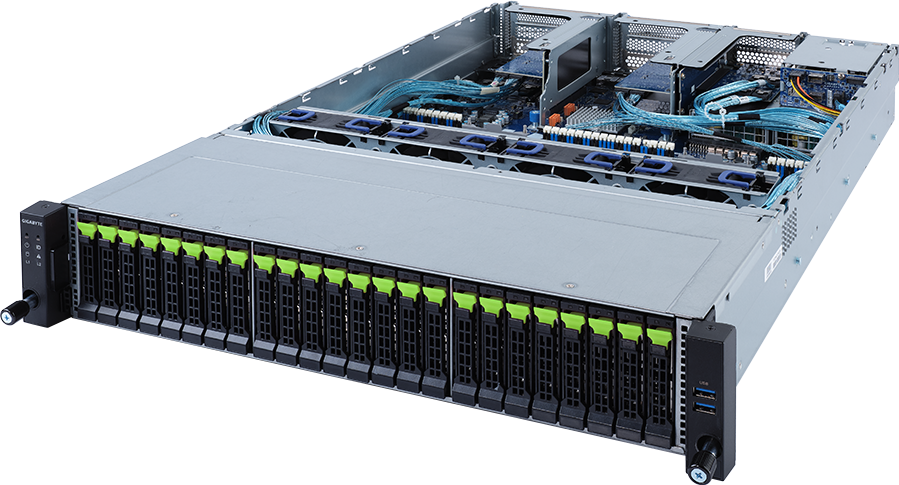

R282-NO0
Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- Dual 3rd Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 24 x 2.5" Gen4 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable on the rear side
- 2 x FHHL PCIe Gen4 x16 slots
- 1+1 1600W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
438 x 87.5 x 730
Motherboard
MR92-FS1
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 10nm technology
TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
24 x 2.5" Gen4 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1
Expansion Slots
Riser Card CRS2026 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4 x NVMe PCIe HBA
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, shared with OCP 2.0, occupied by CNV3134 - 4 x NVMe PCIe HBA
Riser Card CRS2015:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, occupied by CNV3134 - 4 x NVMe PCIe HBA
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134, 4 x NVMe PCIe HBA
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1, Disabled
Supports NCSI function
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4 x NVMe PCIe HBA
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, shared with OCP 2.0, occupied by CNV3134 - 4 x NVMe PCIe HBA
Riser Card CRS2015:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, occupied by CNV3134 - 4 x NVMe PCIe HBA
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134, 4 x NVMe PCIe HBA
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1, Disabled
Supports NCSI function
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O7: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O7: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1600W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later or later
Ubuntu 22.04 LTS or later or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later or later
Ubuntu 22.04 LTS or later or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R282-NO0
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR282NO0MR-00-1*
- Motherboard: 9MR92FS1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-343102-M1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O7: 9CBP20O7NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2026: 9CRS2026NR-00
- Riser card - CRS2015: 9CRS2015NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
c) SupremeRAID License: 25FC1-SRBUN4-AFR (32-native Gen4 NVMe RAID)
- RMA packaging: 6NR282NO0SR-RMA-A100
- Motherboard: 9MR92FS1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-343102-M1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O7: 9CBP20O7NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2026: 9CRS2026NR-00
- Riser card - CRS2015: 9CRS2015NR-00
- Power supply: 25EP0-216008-L0S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
c) SupremeRAID License: 25FC1-SRBUN4-AFR (32-native Gen4 NVMe RAID)
- RMA packaging: 6NR282NO0SR-RMA-A100
