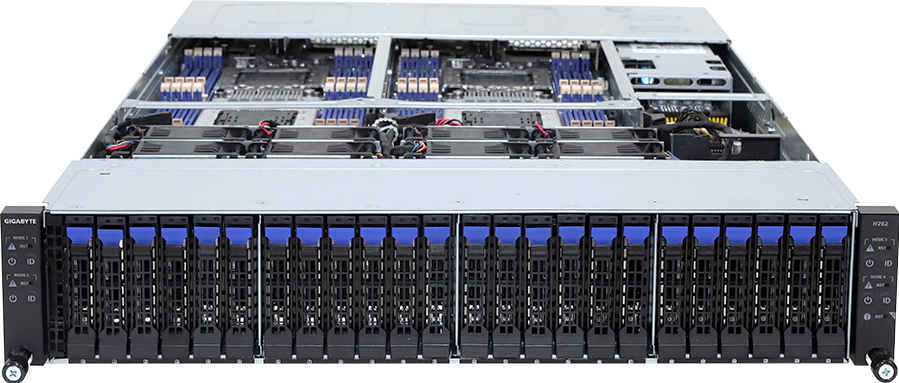

H262-P60

High Density Arm Server - Ampere® Altra® Max - 2U 4-Node 24-Bay SATA
  • 2U-4 nodes rear access server system
  • Hardware-level root of trust support
  • Ampere® Altra® Max or Altra® Processors
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs
  • Dual ROM Architecture
  • 8 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 4 x Dedicated management ports
  • 1 x CMC port
  • 24 x 2.5" SATA hot-swappable bays
  • 4 x M.2 slots with PCIe Gen4 x4 interface
  • 8 x LP PCIe Gen4 x16 slots
  • 4 x OCP 3.0 Gen4 x16 and x8 slots
  • Dual 2200W (240V) 80 PLUS Platinum redundant power supply
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 840
Motherboard

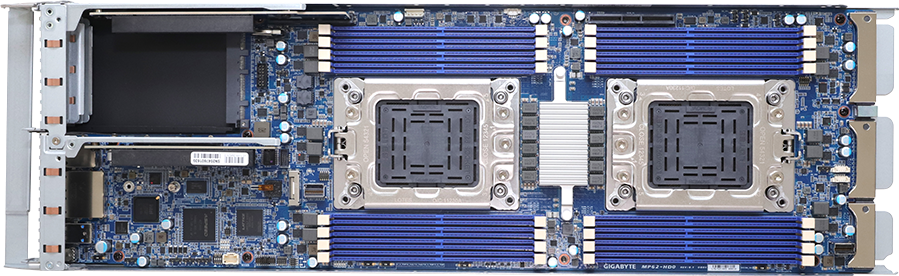

MP62-HD0
CPU
Ampere® Altra® Max or Altra® Processor
Dual processor, 7nm technology
Up to 128-core per processor, TDP up to 190W

NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Per Node:
2 x LGA 4926

Total:
8 x LGA 4926
Chipset
System on Chip
Memory
Per node:
16 x DIMM slots

Total:
64 x DIMM slots

DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
LAN
Per node:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port

Total:
8 x 1GbE LAN ports (4 x Intel® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port

*CMC: Chassis Management Controller, to monitor all status of computing nodes
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
6 x 2.5" SATA hot-swappable bays

Total:
24 x 2.5" SATA hot-swappable bays
SAS
N/A
RAID
N/A
Expansion Slots
Per node:
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

1 x OCP 3.0 slot with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Total:
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

4 x OCP 3.0 slots with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0

4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

NOTE: Gen4 x16 available for Ampere Altra Max processor only
Internal I/O
Per node:
1 x M.2 slot
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED

*Only one CMC status LED per system

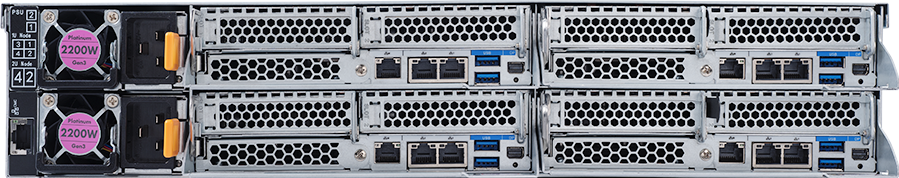

Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN

Total:
8 x USB 3.2 Gen1
4 x Mini DP
8 x RJ45
4 x RJ45 MLAN
*1 x CMC port

*Only one CMC port per system
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: System power supply requires C19 power cord
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later

SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later

Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later

Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later

OracleLinux R8 U2
OracleLinux R8 U5

Debian 10.9 (Buster)
Debian 11.1
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-P60
8 x CPU heatsinks
1 x 3-Section Rail Kit
Part Numbers
- Barebone package: 6NH262P60MR-00-1*
- Motherboard: 9MP62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-45320B-A3R/25ST1-45320C-C1R
- Backplane board - CBPH700: 9CBPH700NR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
- Fan module: 25ST2-88382A-D0R/25ST2-883828-D0R
- Power Supply: 25EP0-222003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Ring topology kit: 6NH262Z65SR-00-100
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
