G492-Z50

Discontinued

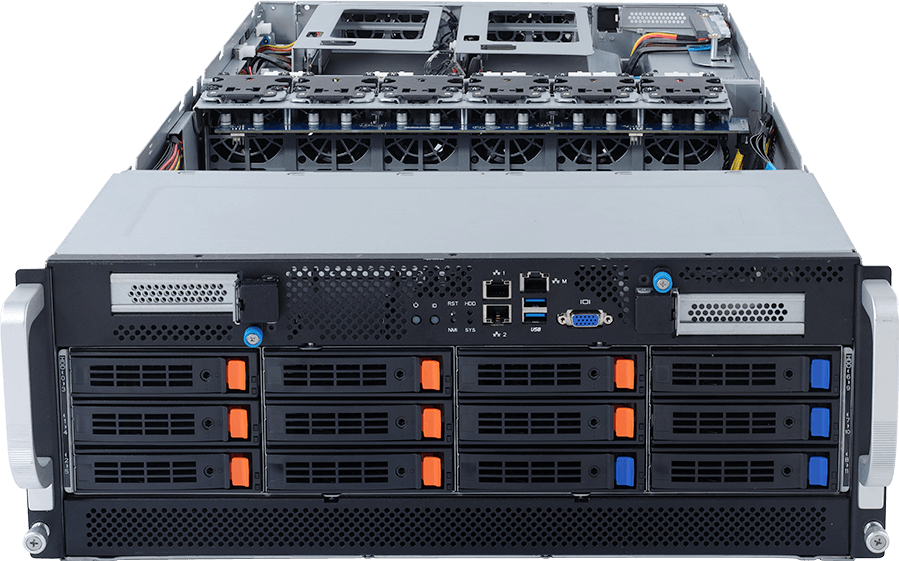

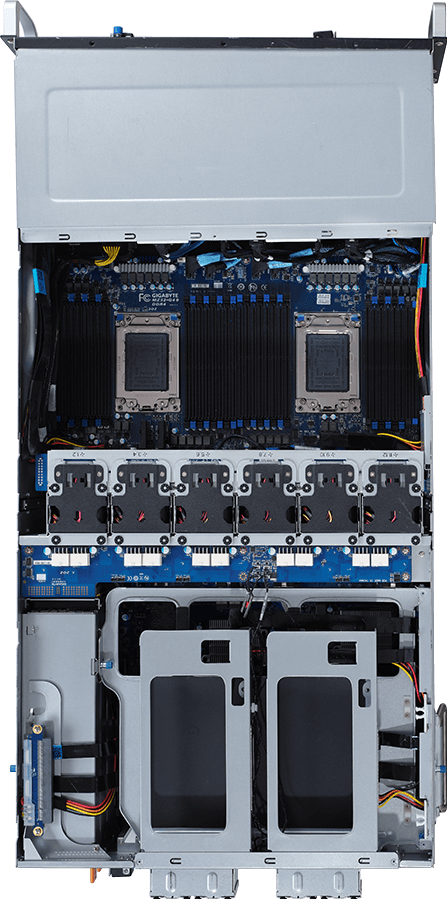

HPC Server - 4U DP 10 x Gen4 GPU Server (Microchip solution)
  • Up to 10 x PCIe GPGPU cards
  • Dual AMD EPYC™ 7003 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 1 x dedicated management port
  • 8 x 3.5" NVMe/SATA, 4 x SATA/SAS 3.5" hot-swappable HDD/SSD bays
  • 10 x FHFL Gen4 expansion slots for GPU cards
  • 3 x low profile PCIe Gen4 expansion slots
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot on rear side
  • AST2500 Graphics & Remote Management controller
  • 3 x 80 PLUS Platinum 2200W (240V) redundant PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
4U
448 x 176 x 880
Motherboard
MZ52-G40 Rev. 3.0
CPU
AMD EPYC™ 7003 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Front Side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
12 x 3.5" hot-swappable HDD/SSD bays
- 8 x amber HDD trays compatible with NVMe or SATA/SAS devices
- 4 x blue HDD trays compatible with SATA/SAS devices only

SAS card is required for SAS devices support
SAS
Supported
RAID
Optional
Peripheral Drives
N/A
Expansion Slots
10 x PCIe x16 slots (Gen4 x16 bus) for GPUs (Microchip solution)
2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots on front side
1 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slot on rear side#

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 on rear side

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane Board
12 x 3.5" ports
Speed and bandwidth: PCIe Gen3 or SAS 12Gb/s or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
3 x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 ( x64) or later
Red Hat Enterprise Linux 9.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later
System Fans
4 x 40x40x28mm (25,000rpm)
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G492-Z50
2 x CPU fan-sinks
1 x Rail kit
Part Numbers
- Barebone with rail kit: 6NG492Z50MR-00 Rev. A00
- Motherboard: 9MZ52G40NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fan-sink: 12SF2-01A067-00R
- Back plane board_12-port: 9CBP20C2NR-00
- Front panel board: 9CFPG015NR-00
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- C19 type power cord 250V/15A (US): 25CP1-018300-Q0R (optional)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
