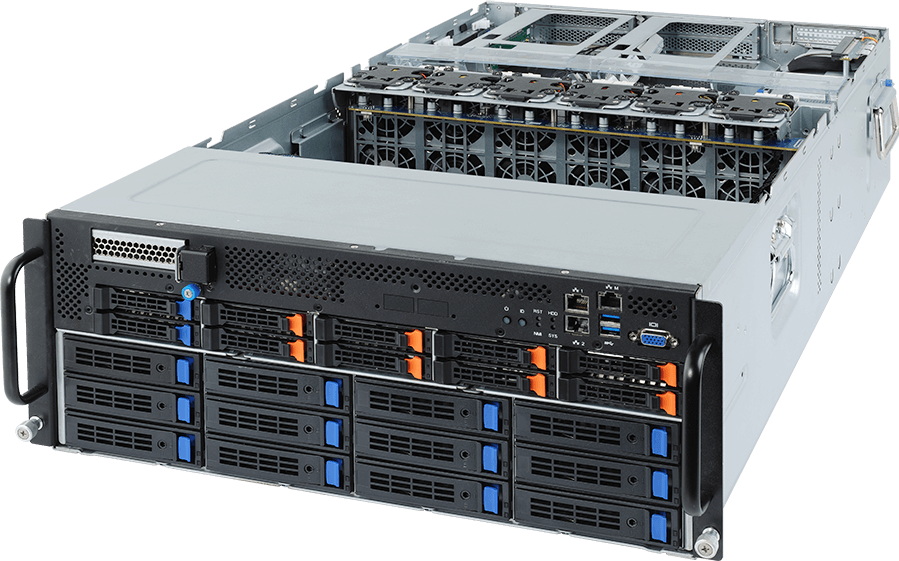

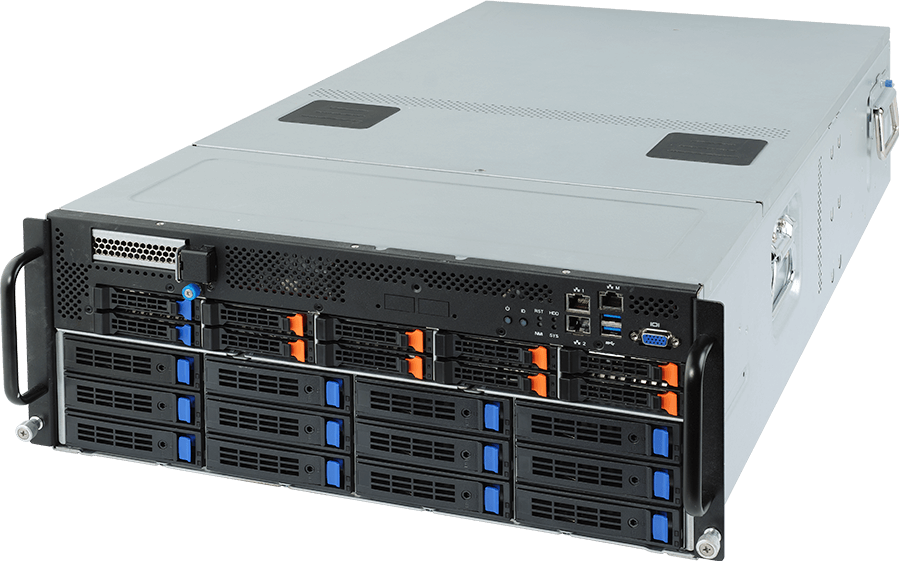

G482-Z50

Discontinued

HPC/AI Server - AMD EPYC™ 7002 - 4U DP 10 x PCIe Gen3 GPUs
  • Up to 10 x Dual slot Gen3 GPGPU cards
  • AMD EPYC™ 7002 Series processors
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 12 x 3.5" SATA/SAS hot-swappable bays
  • 8 x 2.5" NVMe/SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays
  • 10 x FHFL PCIe Gen3 x16 slots for GPUs
  • 1 x LP PCIe Gen3 x16 slot on rear side
  • Aspeed® AST2500 remote management controller
  • Triple 2200W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
4U
448 x 176 x 880
Motherboard
MZ52-G40
CPU
AMD EPYC™ 7002 Series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7001 Series processors (Single processor only)
Socket
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1 x 10/100/1000 management LAN

Front side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
12 x 3.5" SATA/SAS hot-swappable bays
8 x 2.5" NVMe/SATA/SAS hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays

Preinstalled with Broadcom SAS3008 storage adapter with IR mode and expander board
SAS
Supported via preinstalled SAS add-on card
RAID
Preinstalled Broadcom SAS3008 SAS card
Software RAID, IR mode, RAID 0/1/1E/10
Expansion Slots
10 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs
1 x PCIe x16 (Gen3 x8) low-profile slot, occupied by CRA3338 HBA
1 x PCIe x16 (Gen3 x16) low-profile slot on rear side*

*SAS card not supported with internal cable due to cable routing limitation.

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN (Reserved, enabled by jumper switch)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED

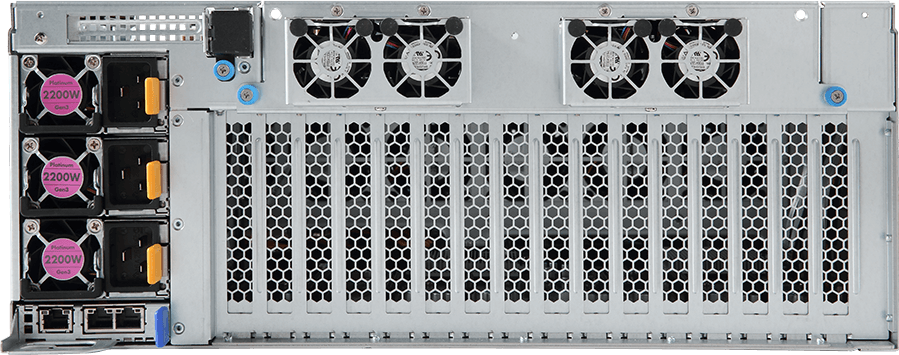

Rear I/O
2 x RJ45
1 x MLAN (Primary port)
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
Triple 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

Note: The system power supply requires C19 power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later
System Fans
4 x 40x40x28mm (25,000rpm)
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note: Please contact Technical Support for more information about optimized GPU operating temperature
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G482-Z50
2 x CPU fansinks
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG482Z50MR-00-1*
- Motherboard: 9MZ52G40NR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- SAS Expander module - CEP26O0: 9CEP26O0NR-00
- Storage adapter - CRA3338: 9CRA3338NR-00
- LAN adapter - CLNP222: 9CLNP222NR-00
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG482Z50SR-RMA-A100
