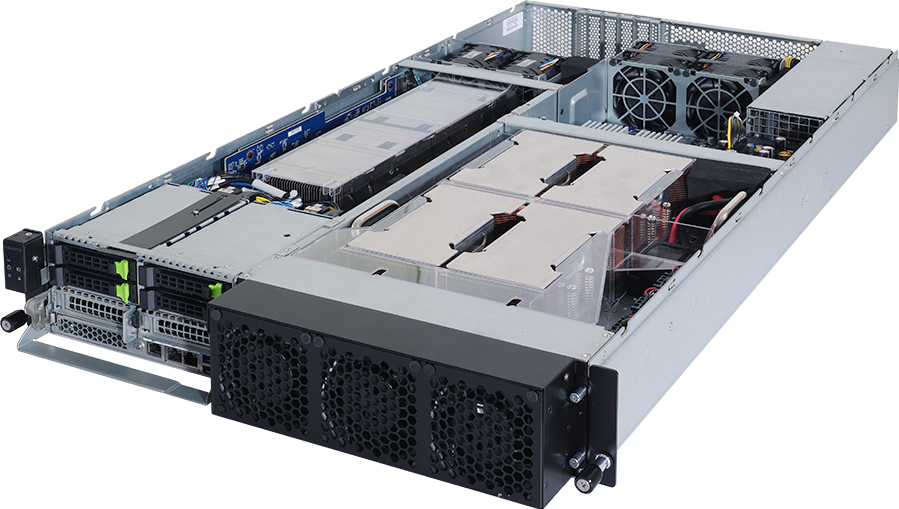

HPC/AI Server - AMD EPYC™ 7003 - 2U DP HGX™ A100 40GB 4-GPU
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA HGX™ A100 40GB with 4 x SXM4 GPUs
- NVIDIA® NVLink® technology
- Up to 600GB/s GPU to GPU interconnection
- AMD EPYC™ 7003 Series processors
- AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x Dedicated management port
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 3 x M.2 slots with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- Dual 3000W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 86.8 x 800
448 x 86.8 x 800
Motherboard
MZ62-HD5 Rev. 3.0
CPU
AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/2933 MHz
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200/2933 MHz
LAN
Front side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from PEX88096, SATA from CPU_0)
SAS card is required for SAS devices support
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from PEX88096, SATA from CPU_0)
SAS card is required for SAS devices support
SAS
Depends on SAS add-on card
RAID
N/A
Expansion Slots
NVIDIA HGX™ A100 40GB with 4 x SXM4 GPUs
Front side:
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1
Rear side:
4 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW
1 x M.2 slot (Onboard):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
2 x M.2 slots (CMTP072):
- M-key
- PCIe Gen4 x4, from CPU_1
- Support 2242/2260/2280/22110 cards
Front side:
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1
Rear side:
4 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW
1 x M.2 slot (Onboard):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
2 x M.2 slots (CMTP072):
- M-key
- PCIe Gen4 x4, from CPU_1
- Support 2242/2260/2280/22110 cards
Internal I/O
3 x M.2 slots
1 x TPM header
1 x Front panel header
1 x TPM header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Platinum redundant power supply
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Gross Weight: 43.5 kg
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G262-ZR0
2 x CPU fansinks
1 x L-shape Rail kit
2 x CPU fansinks
1 x L-shape Rail kit
Part Numbers
- Barebone w/ 40GB module: 6NG262ZR0MR-00-A*
- Motherboard: 9MZ62HD5NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- GPU heatsink: 25ST1-2532G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG262ZR0SR-RMA-A100
- Motherboard: 9MZ62HD5NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- GPU heatsink: 25ST1-2532G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG262ZR0SR-RMA-A100
