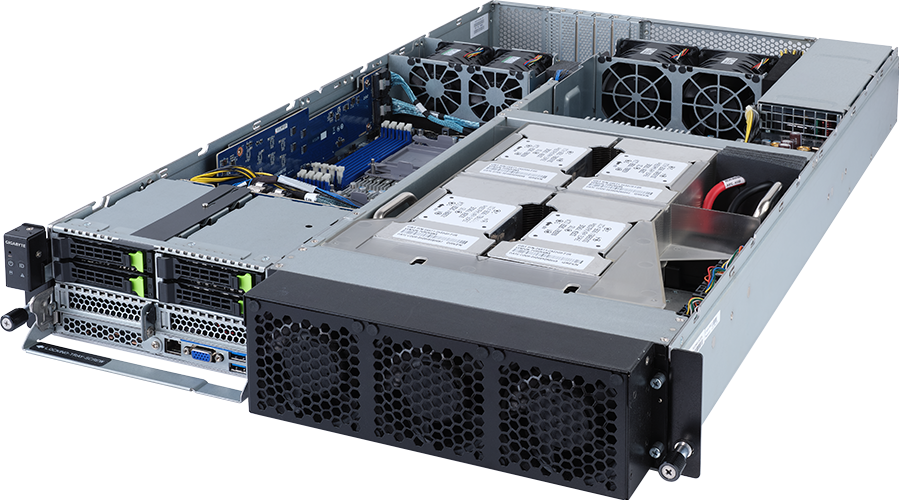

HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 2U DP HGX™ A100 80GB 4-GPU
- NVIDIA HGX™ A100 80GB with 4 x SXM4 GPUs
- NVIDIA® NVLink® technology
- Up to 600GB/s GPU to GPU interconnection
- 3rd Gen Intel® Xeon® Scalable Processors
- Dual processor, 10nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- Intel® C621A Chipset
- Dual ROM Architecture
- 1 x Dedicated management port
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 6 x LP PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- Dual 3000W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 86.8 x 800
448 x 86.8 x 800
Motherboard
MH62-HD2
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processor, 10nm technology
CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A Chipset
Memory
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
Front side:
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from PEX88096
SAS card is required for SAS devices support
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from PEX88096
SAS card is required for SAS devices support
SAS
Depends on SAS add-on card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
NVIDIA HGX™ A100 80GB with 4 x SXM4 GPUs
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
4 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
4 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW
Internal I/O
1 x TPM header
1 x Front panel header
1 x OCP 3.0 slot
1 x Front panel header
1 x OCP 3.0 slot
Front I/O
2 x USB 3.0
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Platinum redundant power supply
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A + 12Vsb/ 3.5A
NOTE: The system power supply requires C19 power cord
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
Citrix Hypervisor 8.2.0 or later
System Fans
2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 25 kg
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G262-IR0
2 x CPU fansinks
1 x L-shape Rail kit
2 x CPU fansinks
1 x L-shape Rail kit
Part Numbers
- Barebone w/ 80GB module: 6NG262IR0DR-00-8*
- Motherboard: 9MH62HD2NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-453100-M1R/25ST1-453101-M1R
- GPU heatsink: 25ST1-2532G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Riser card - CRSG230: 9CRSG230NR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- PCIe extension board - CPBG740: 9CPBG740NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG262IR0SR-RMA-A100
- Motherboard: 9MH62HD2NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-453100-M1R/25ST1-453101-M1R
- GPU heatsink: 25ST1-2532G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Riser card - CRSG230: 9CRSG230NR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- PCIe extension board - CPBG740: 9CPBG740NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG262IR0SR-RMA-A100
