G250-G50
Discontinued
HPC Server - 8 x GPGPU Card Slots
- Supports up to 8 x double slot GPU cards
- NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
- Compatible with Intel® Visual Compute Accelerator
- Intel® Xeon® processor E5-2600 V3 / V4 product family
- 24 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN ports (Intel® I350-AM2)
- 8 x 2.5" hot-swappable HDD/SSD bays
- 80 PLUS Platinum 1600W redundant PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
448 x 87.5 x 800
Motherboard
MG50-G21
CPU
Intel® Xeon® E5-2600 V3 processors supported
Intel® Xeon® E5-2600 V4 processors supported
NOTE: If only 1 CPU is installed, some PCIe, memory, I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors supported
NOTE: If only 1 CPU is installed, some PCIe, memory, I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
8 x 2.5" hot-swappable HDD/SSD bays
SATA
10 x SATA III 6Gb/s ports
SAS
GC-MSLZ1 expansion card in option:
- 2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
- LSI® SAS2208 controller
- Hardware RAID 0/1/5/6/10/50/60
- Hardware RAID 5/6 XOR Engine (single pass)
- Low profile PCIe 2.0 x8 mezzanine connector
- 76.8 x 98 mm
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
8 x PCIe x16 (Gen3 x16 bus)
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- GIGABYTE carries out comprehensive validation to ensure support for Intel® Xeon Phi, Nvidia® and AMD® adapters.
- Note: each system is validated for population with a uniform GPU model. Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.
1 x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot
1 x Proprietary PCIe x8 (Gen3 x8 bus) mezzanine connector
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- GIGABYTE carries out comprehensive validation to ensure support for Intel® Xeon Phi, Nvidia® and AMD® adapters.
- Note: each system is validated for population with a uniform GPU model. Support is not provided for mixed GPU populations.
- For the latest QVL, please contact your GIGABYTE representative.
1 x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot
1 x Proprietary PCIe x8 (Gen3 x8 bus) mezzanine connector
Internal I/O
1 x 18-pin power connector
1 x 14-pin power connector
2 x 8-pin power connectors
2 x 4-pin power connectors
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x HDD back plane board header
1 x 12-pin front panel header
1 x 23-pin front panel header
1 x JTAG header
2 x SATA SGPIO headers
1 x Front VGA header
1 x Serial header
1 x IPMB connector
1 x P12V standby connector
1 x PMBus selection jumper
1 x Clear CMOS jumper
1 x LT debug jumper
1 x 14-pin power connector
2 x 8-pin power connectors
2 x 4-pin power connectors
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x HDD back plane board header
1 x 12-pin front panel header
1 x 23-pin front panel header
1 x JTAG header
2 x SATA SGPIO headers
1 x Front VGA header
1 x Serial header
1 x IPMB connector
1 x P12V standby connector
1 x PMBus selection jumper
1 x Clear CMOS jumper
1 x LT debug jumper

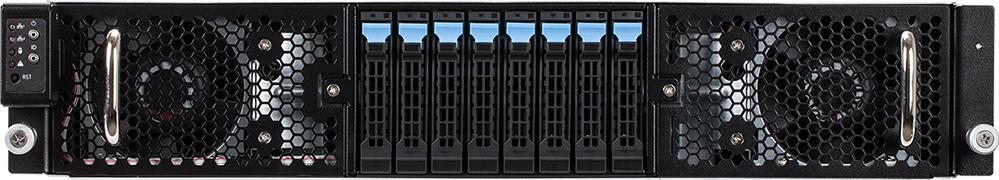

Front I/O
1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

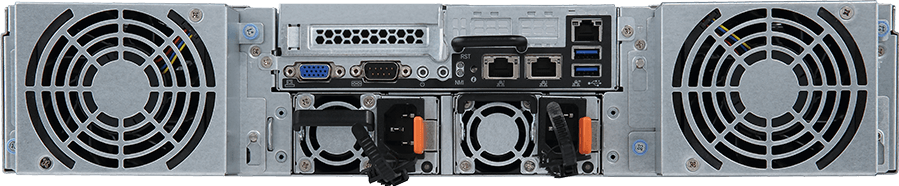

Rear I/O
2 x USB 3.0
1 x VGA
1 x Serial
3 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x VGA
1 x Serial
3 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane Board
8 x SAS/SATA ports
TPM
1 x TPM header
Power Supply
2 x 1600W redundant PSU
80 PLUS Platinum
AC input:
- 100-127V/ 12.9A, 47-63Hz
- 200-240V/9.5A, 47-63Hz
DC output:
- 1000W@100-127V
- 1600W@200-240V
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
8 x 80x80x38mm (15000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
31 kg (full packaging)
Packaging Content
1 x G250-G50
1 x Driver CD
2 x CPU heat sinks
1 x Rail Kit
1 x Driver CD
2 x CPU heat sinks
1 x Rail Kit
Part Numbers
Barebone with rail kit: 6NG250G50MR-00
Tool-less rail kit: 25HB2-A86100-K0R Power supply: 25EP0-216000-D0S Default PCIe 6-pin & PCIe 8-pin power cables ( Borebone included): 6 x 25CRI-250903-H3R + 2 x 25CRI-350902-H3R NVIDIA P100/K80/M60 CPU 8-pin power cables: 2 x 25CRI-250322-B0R + 4 x 25CRI-200301-Y4R + 2 x 25CRI-300307-B0R (in option)
Tool-less rail kit: 25HB2-A86100-K0R Power supply: 25EP0-216000-D0S Default PCIe 6-pin & PCIe 8-pin power cables ( Borebone included): 6 x 25CRI-250903-H3R + 2 x 25CRI-350902-H3R NVIDIA P100/K80/M60 CPU 8-pin power cables: 2 x 25CRI-250322-B0R + 4 x 25CRI-200301-Y4R + 2 x 25CRI-300307-B0R (in option)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 22.1
322.42 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
SAS
SAS
Version
Size
Date
LSI SAS3008/SAS2308/SAS2208 Utility
Version : 13.04.03.01
73.01 MB
Dec 03, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
GIGABYTE GC-MSLZ1 optional Card
LSI® SAS2208 Hardware RAID SAS Card
LSI® SAS2208 Hardware RAID SAS Card
Version : 6.701.04.00
242.81 MB
Jul 02, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 24, 2017
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Dec 02, 2014
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
BIOS
Description
Version
Size
Date
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R13
13.26 MB
Dec 06, 2019
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R12
13.19 MB
Jun 17, 2019
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Aug 01, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Ubuntu,Windows Server 2016 64bit
Manual
Description
Version
Size
Date
User Manual
1. Add v4 CPU supported
2. Add PSU location
3. modify block diagram
1. Add v4 CPU supported
2. Add PSU location
3. modify block diagram
Version : 1.1
43.93 MB
Oct 03, 2016
English
Description
Version
Size
Date
RESOURCES
Success Case
Articles
Success Case | June 06, 2023
CSR and ESG in Action: GIGABYTE Helps NCKU Train Award-Winning Supercomputing Team
GIGABYTE Technology is not only a leading brand in high-performance server solutions—it is also an active force for good when it comes to CSR and ESG activities. Case in point: in 2020, GIGABYTE provided four G482-Z50 servers to Taiwan’s Cheng Kung University. The servers were used to train a team of talented students, who went on to take first place in that year’s APAC HPC-AI Competition in Singapore. The parallel computing performance of the servers’ processors, the seamless connectivity between the servers, and the servers’ unrivalled reliability are the reasons why GIGABYTE servers are ideal for educating the next generation of supercomputing experts. GIGABYTE is happy to give back to society and contribute to human advancement through high tech solutions.
Success Case | June 02, 2023
NCHC and Xanthus Elevate Taiwanese Animation on the World Stage with GIGABYTE Servers
Created by Greener Grass Production, the Taiwanese sci-fi mini-series “2049” made its debut on Netflix and various local TV channels. The animated spin-off “2049+ Voice of Rebirth”, crafted by Xanthus Animation Studio, premiered on the streaming service myVideo. The CGI show was created with the NCHC Render Farm’s GIGABYTE servers, which employ top-of-the-line NVIDIA® graphics cards to empower artists with industry-leading rendering capabilities. The servers can take on multiple workloads simultaneously through parallel computing, and they boast a wide range of patented smart features that ensure stability and availability. With all it has going for it, “2049+ Voice of Rebirth” may garner enough attention to become the breakout hit that will introduce Taiwanese animation to international audiences.
Success Case | May 30, 2023
Spain’s IFISC Tackles COVID-19, Climate Change with GIGABYTE Servers
By using GIGABYTE, Spain’s Institute for Cross-Disciplinary Physics and Complex Systems is pitting the world’s foremost server solutions against some of the world’s most pressing issues, including the effects of climate change, pollution, and COVID-19. GIGABYTE servers are up to the diverse and daunting tasks, because they are designed for high performance computing, intensive numerical simulations, AI development, and big data management.
Success Case | May 25, 2023
GIGABYTE’s ARM Server Boosts Development of Smart Traffic Solution by 200%
A team of scientists at NTU has adopted GIGABYTE’s G242-P32 server and the Arm HPC Developer Kit to incubate a “high-precision traffic flow model”—a smart traffic solution that can be used to test autonomous vehicles and identify accident-prone road sections for immediate redress. The ARM-based solution gives the project a 200% boost in efficiency, thanks to the cloud-native processor architecture that “speaks” the same coding language as the roadside sensors, the high number of CPU cores that excel at parallel computing, the synergy with GPUs that enable heterogeneous computing, and the ISO certifications which make the resulting model easily deployable for automakers and government regulators alike.
Success Case | May 04, 2023
Lowell Observatory Looks for Habitable Exoplanets with GIGABYTE Servers
Arizona’s Lowell Observatory is studying the Sun with GIGABYTE’s G482-Z50 GPU Server in an effort to filter out “stellar noise” when looking for habitable planets outside of our Solar System. The server’s AMD EPYC™ processors, parallel computing capabilities, excellent scalability, and industry-leading stability are all features that qualify it for this astronomical task, making the discovery of a true “Twin Earth” achievable within our lifetime.
Success Case | April 04, 2023
Decoding the Storm with GIGABYTE’s Computing Cluster
Waseda University, the “Center for Disaster Prevention around the World”, has built a computing cluster with GIGABYTE’s GPU server and tower servers. They use it to study and prepare for natural disasters, such as tsunamis and storm surges. Efforts go into understanding tropical cyclones and other phenomena, which are becoming more dangerous due to climate change.
Tech Guide | July 18, 2023
How to Pick a Cooling Solution for Your Servers? A Tech Guide by GIGABYTE
As CPUs and GPUs continue to advance, they consume more power and generate more heat. It is vital to keep temperature control in mind when purchasing servers. A good cooling solution keeps things running smoothly without hiking up the energy bill or requiring persistent maintenance. GIGABYTE Technology, an industry leader in high-performance servers, presents this Tech Guide to help you choose a suitable cooling solution. We analyze three popular options—air, liquid, immersion—and demonstrate what GIGABYTE can do for you.
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video
Video | July 28, 2021
Heroes Ascension
Over the past year or so, due to global warming and climate changes, all parts of the world have witnessed extreme weather events that are more severe than ...
Video | March 25, 2021
What is it? Data Center in 60 Seconds
What is a data center? A data center is a facility that an organization uses for housing their IT equipment, including servers, storage, ...
News
News | September 21, 2022
GIGABYTE Shares Sessions at GTC and Shows Support for Arm CPU and NVIDIA GPU Validation
News | March 23, 2022
GIGABYTE Hosts Sessions at NVIDIA GTC and Expands Support to Include the NVIDIA H100 Tensor Core GPU
Security & Technical Advisory
Others

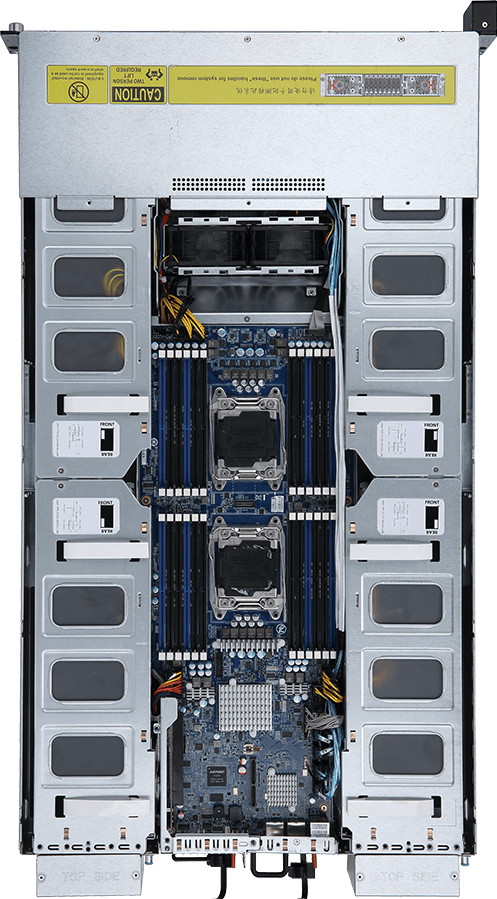

Back to G250-G50
