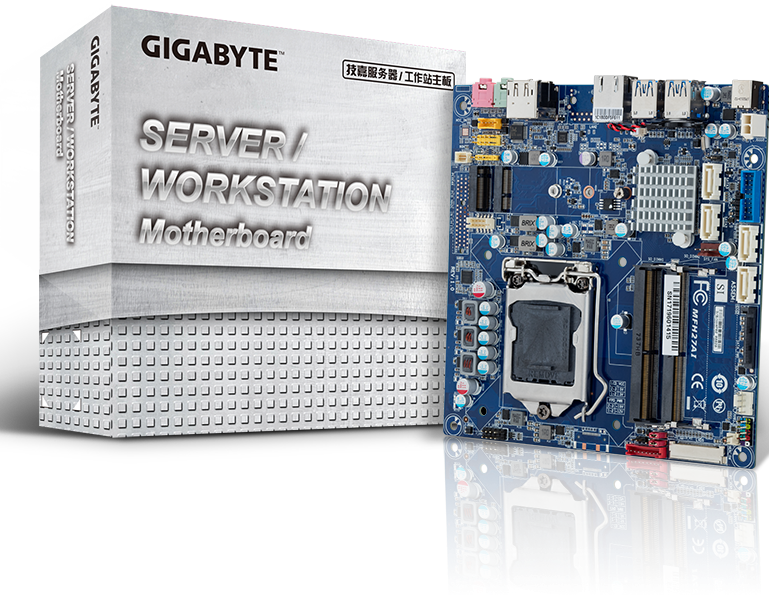

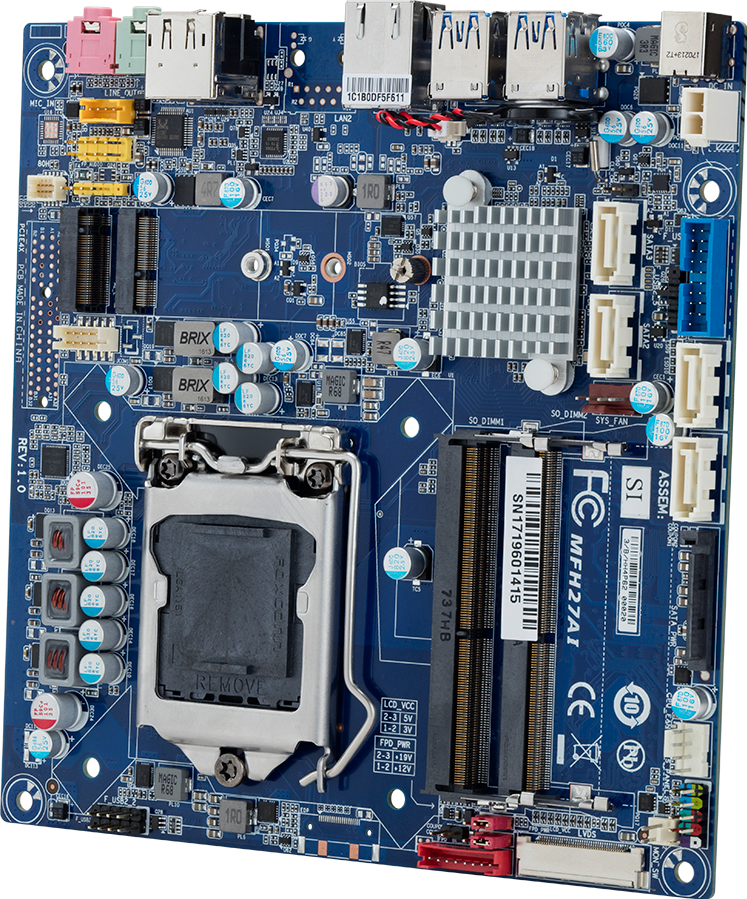

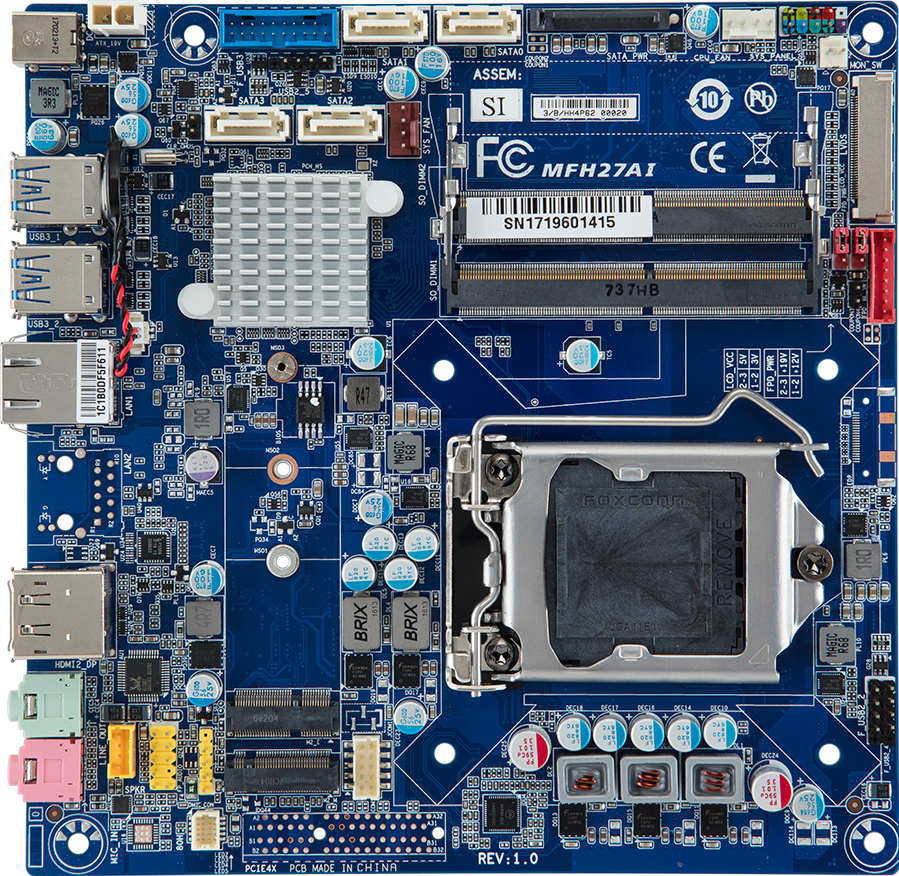

MFH27AI
Discontinued
Intel® H270 Chipset
- Thin Mini-ITX form factor
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Intel® H270 Express Chipset
- 2 x DDR4 SO-DIMM slots, up to 32GB 2400/2133MHz
- Intel® Optane™ Memory Ready
- 4 x SATA III 6Gb/s ports
- 1 x GbE LAN port (Realtek RTL8111HS-CG)
- Triple display ports: HDMI, DisplayPort, LVDS
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
-
Intel® Optane™ Technology
![]()
Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. Intel® Optane™ memory is a smart, adaptable system accelerator for PCs with a 7th Gen Intel® Core™ processor. It provides uncompromising system responsiveness for large capacity storage drives, making everything you do fast, smooth and easy. -
GIGABYTE Thin Mini-ITX Standards
![]()
GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. -
M.2 Onboard Connector
![]()
Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices. -
SuperSpeed USB 3.0
![]()
With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. -
DisplayPort Support
![]()
Featuring DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths. -
High-Definition Everywhere
![]()
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Thin Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H270 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32GB of system memory
Dual channel memory architecture
Support for DDR4 2400*/2133 MHz memory modules
* 2400MHz is for 7th Gen processors only
Dual channel memory architecture
Support for DDR4 2400*/2133 MHz memory modules
* 2400MHz is for 7th Gen processors only
LAN
1 x GbE LAN port (Realtek RTL8111HS-CG)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
- Support for up to 3 displays at the same time
- DisplayPort version 1.2
- HDMI version 1.4b
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
- Support for up to 3 displays at the same time
- DisplayPort version 1.2
- HDMI version 1.4b
Audio
Realtek ALC887 codec
High Definition Audio
High Definition Audio
SATA
4 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe Gne3 x4 signal
- Supports NGFF-2260/2280 cards
1 x M.2 slot:
- E-key
- PCIe Gen2 x1 signal
- Supports NGFF-2230 cards
- M-key
- SATA 6Gb/s or PCIe Gne3 x4 signal
- Supports NGFF-2260/2280 cards
1 x M.2 slot:
- E-key
- PCIe Gen2 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 2-pin 12V power connector
4 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 3 x USB 2.0 ports)
1 x USB 3.0 headers (up to 2 x USB 3.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x COM (RS-232)
4 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 3 x USB 2.0 ports)
1 x USB 3.0 headers (up to 2 x USB 3.0 ports)
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x COM (RS-232)

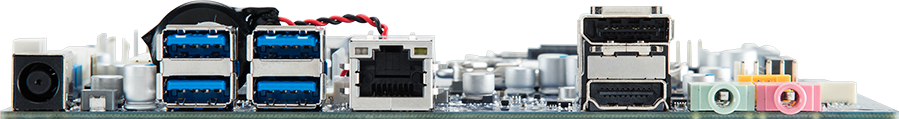

Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort
1 x HDMI
1 x Line-out
1 x MIC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort
1 x HDMI
1 x Line-out
1 x MIC-in
TPM
-
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 8.1 (x64)
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Content
1 x SATA power cable (710mm) (P/N: 25CRI-710300-K1R)
1 x 25.54mm I/O shield (P/N: 12AIO-MFH270-00R)
1 x 44.45mm I/O shield (P/N: 12AIO-MFH271-00R)
1 x 25.54mm I/O shield (P/N: 12AIO-MFH270-00R)
1 x 44.45mm I/O shield (P/N: 12AIO-MFH271-00R)
Ordering Information
9MFH27AINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
QVL
- All
- All
- Windows 8.1 64bit
- Windows 10 64bit
Audio
Audio
Version
Size
Date
Realtek Audio Driver
Version : R455
252.83 MB
Jun 07, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
Chipset
LAN
LAN
Version
Size
Date
Realtek LAN Driver
Version : 1.1
30.41 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Microsoft .NET Framework 4.5
Version : 4.5
47.93 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
Intel® Rapid Storage Technology
Note: Please install Microsoft .Net Framework 4.5 first
Note: Please install Microsoft .Net Framework 4.5 first
Version : 15.5.0.1051
39.48 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
TPM
TPM
Version
Size
Date
TPM 2.0 Driver
(Optional Kit)
SLB9665TT2.0 Infineon
(Optional Kit)
SLB9665TT2.0 Infineon
Version : KB2920188
2.87 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 5.0.0.32
5.28 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
Utility
Utility
Version
Size
Date
Intel® Ready Mode Technology
Version : 1.1.70.528
19.36 MB
Jun 08, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
VGA
VGA
Version
Size
Date
Intel® Graphic Driver
Version : 21.20.16.4599
242.17 MB
Jun 07, 2017
OS: Windows 8.1 64bit,Windows 10 64bit
