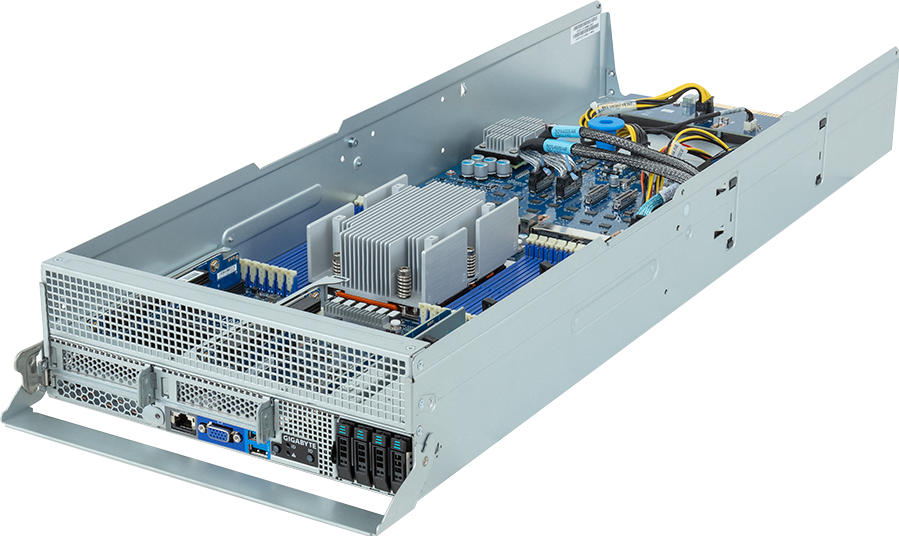

ORv3 Compute Node - AMD EPYC™ 9004 - 2OU 2-Node UP 4-Bay E1.S Gen4 NVMe
- Single AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 4 x E1.S Gen4 NVMe hot-swap bays
- 1 x M.2 slot with PCIe Gen4 x4 interface (optional)
- 2 x LP PCIe Gen5 x16 slots
- 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
- 48V DC Bus Bar power solution
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2OU 2-Node
262.7 x 90 x 740
262.7 x 90 x 740
Open Rack Version
ORv3
Motherboard
MZ13-HD0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Front:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
4 x 9.5mm E1.S Gen4 NVMe
Optional internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4
4 x 9.5mm E1.S Gen4 NVMe
Optional internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4
SAS
N/A
RAID
N/A
PCIe Expansion Slots
Riser Card CRSH01Q:
- 1 x LP x16 (Gen5 x16)
Riser Card CRSH01R:
- 1 x LP x16 (Gen5 x16)
1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function
- 1 x LP x16 (Gen5 x16)
Riser Card CRSH01R:
- 1 x LP x16 (Gen5 x16)
1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x ID LED
1 x VGA port
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x ID LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Supports up to 1600W
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
N/A
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
N/A
Packaging Content
1 x TO25-Z10-AA01
1 x CPU heatsink
1 x CPU heatsink
Part Numbers
- Barebone package (EPYC 9005/9004): 6NTO25Z10DR000AB01*
- Barebone package (EPYC 9004): 6NTO25Z10DR000AA01*
- Motherboard: 9MZ13HD0UR-000*
- CPU heatsink: 25ST1-143100-A0R
- Front panel board - COFP111: 9COFP111NR-00*
- Riser card - CRSH01Q: 9CRSH01QNR-00*
- Riser card - CRSH01R: 9CRSH01RNR-00*
- EDSFF base board - COBP740: 9COBP740NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
Optional parts:
- M.2 expansion card - CMTP192: 9CMTP192NR-00*
- Barebone package (EPYC 9004): 6NTO25Z10DR000AA01*
- Motherboard: 9MZ13HD0UR-000*
- CPU heatsink: 25ST1-143100-A0R
- Front panel board - COFP111: 9COFP111NR-00*
- Riser card - CRSH01Q: 9CRSH01QNR-00*
- Riser card - CRSH01R: 9CRSH01RNR-00*
- EDSFF base board - COBP740: 9COBP740NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
Optional parts:
- M.2 expansion card - CMTP192: 9CMTP192NR-00*
No. of Bus Bars
1 x 48V Bus Bar
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
Chipset driver for AMD EPYC 9004 series processors
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
OS: Windows Server 2019,Windows Server 2022
Chipset driver for AMD EPYC 9005/9004 series processors
Version : 6.10.07.747
2.82 MB
Oct 29, 2024
OS: Windows Server 2019,Windows Server 2022
AMD Chipset Windows Server PSHED Plug-in Device Driver
Version : 6.10.04.235
26.5 MB
Oct 29, 2024
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 29.3.1
818.63 MB
Oct 29, 2024
OS: Windows Server 2019,Windows Server 2022
BIOS
Description
Version
Size
Date
Updated support for AMD EPYC™ 9005 series processors.
Version : R01_F22
44.33 MB
Oct 17, 2024
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F20
21.33 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F19
21.32 MB
Jul 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Manual
(TO25-BT0 can be applied to models TO25-Z10, TO25-Z11 and TO25-Z12)
(TO25-BT0 can be applied to models TO25-Z10, TO25-Z11 and TO25-Z12)
Version : 1.0
34.18 MB
Nov 15, 2024
English
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
OS Support List
Version : R1
0.06 MB
Oct 15, 2024
AMD EPYC™ 9005/9004 Series Processors OS Support List
