    Model

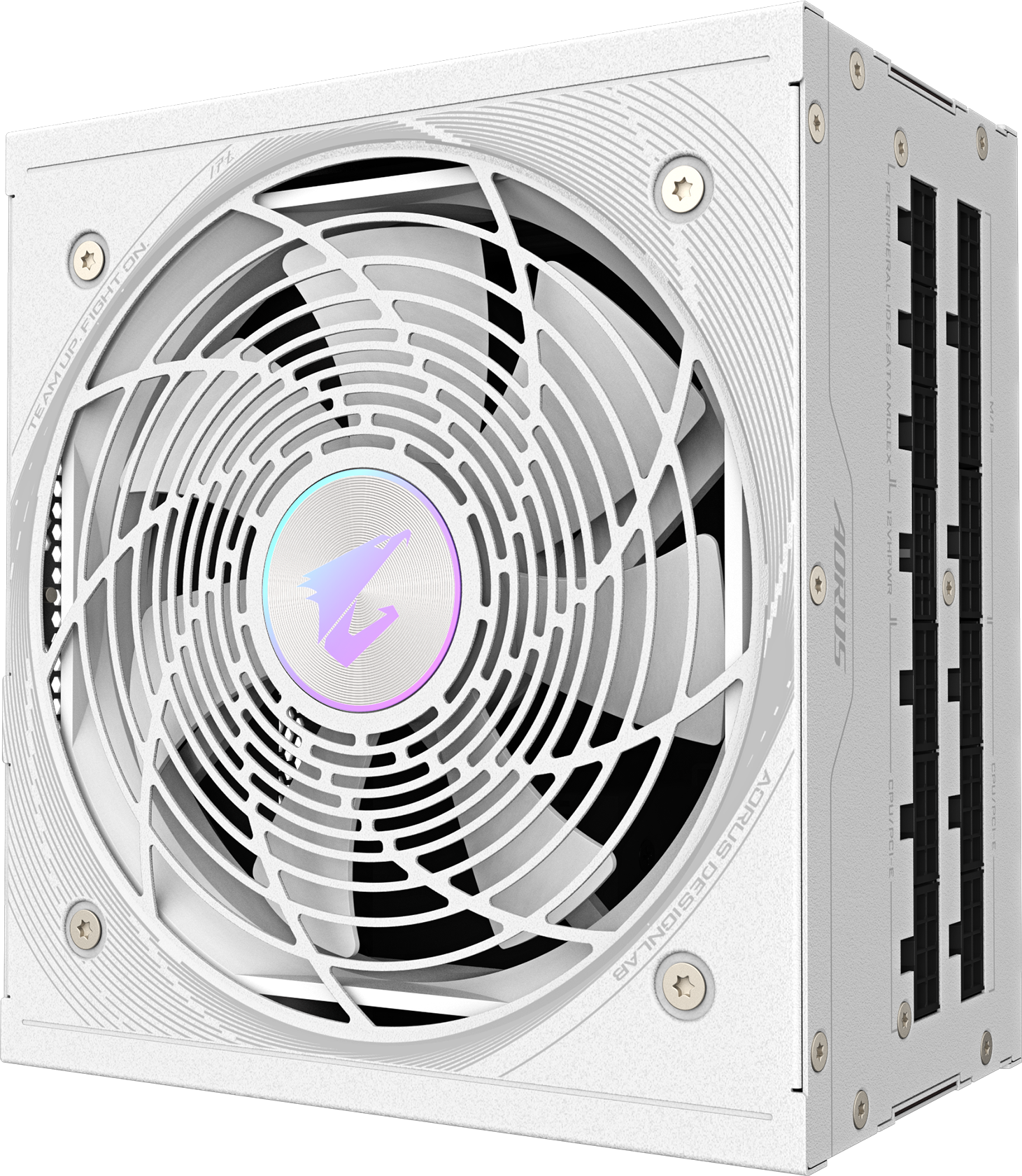

    GP-AE1000PM PG5 ICE

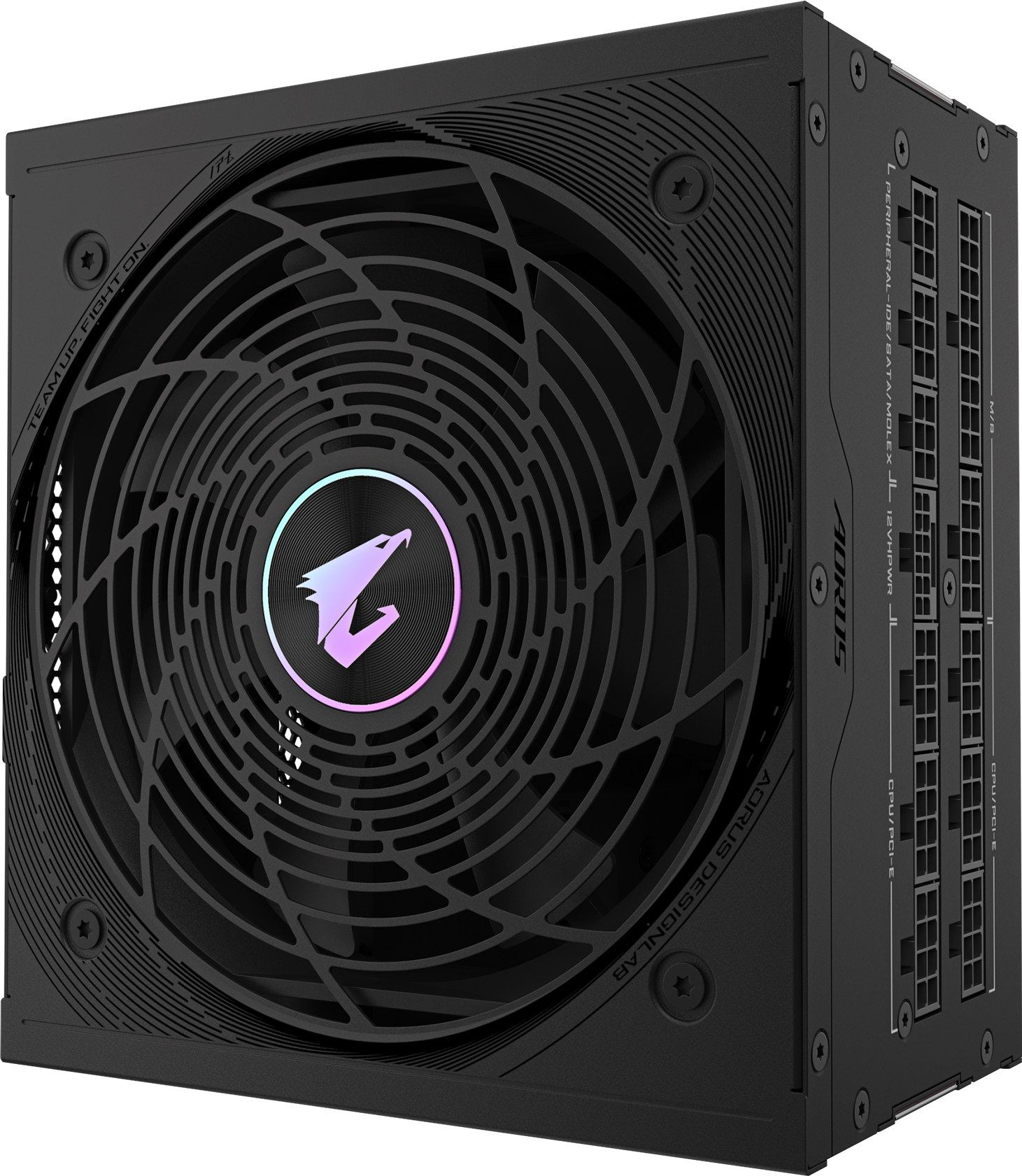

    GP-AE1000PM PG5
    GP-AE850PM PG5 ICE

    Type
    Intel Form Factor ATX 12V v3.0
    Intel Form Factor ATX 12V v3.0
    Intel Form Factor ATX 12V v3.0

    PFC
    Active PFC (>0.9 typical)
    Active PFC (>0.9 typical)
    Active PFC (>0.9 typical)

    Input Voltage
    100-240 Vac (full range)
    100-240 Vac (full range)
    100-240 Vac (full range)

    Input Current
    15-6.5A
    15-6.5A
    12-6A

    Input Frequency
    60-50 Hz
    60-50 Hz
    60-50 Hz

    Output Capacity
    1000W
    1000W
    850W

    Dimension
    150 x 140 x 86mm
    150 x 140 x 86mm
    150 x 140 x 86mm

    Fan Type
    120mm Fluid Dynamic Bearing (FDB) Fan
    120mm Fluid Dynamic Bearing (FDB) Fan
    120mm Fluid Dynamic Bearing (FDB) Fan

    80 PLUS
    Platinum
    Platinum
    Platinum

    Efficiency
    92% at typical load
    92% at typical load
    92% at typical load

    MTBF
    >100,000 hours
    >100,000 hours
    >100,000 hours

    Protection
    OVP/OPP/SCP/UVP/OCP/OTP
    OVP/OPP/SCP/UVP/OCP/OTP
    OVP/OPP/SCP/UVP/OCP/OTP

    Power Good Signal
    100-150ms
    100-150ms
    100-150ms

    Hold Up Time
    >16ms
    >16ms
    >16ms

    Cable Type
    Flat, All white
    Flat, All black
    Flat, All white

    Connectors
    ATX/MB 20+4 Pin x 1 : 650mm*1
    CPU/EPS 4+4 Pin x 2 : 700mm*2
    PCI-e 16 Pin x 1: 700mm*1
    PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
    SATA x 8 : 600mm+150mm+150mm+150mm*2
    4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
    ATX/MB 20+4 Pin x 1 : 650mm*1
    CPU/EPS 4+4 Pin x 2 : 700mm*2
    PCI-e 16 Pin x 1: 700mm*1
    PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
    SATA x 8 : 600mm+150mm+150mm+150mm*2
    4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
    ATX/MB 20+4 Pin x 1 : 650mm*1
    CPU/EPS 4+4 Pin x 2 : 700mm*2
    PCI-e 16 Pin x 1: 700mm*1
    PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
    SATA x 8 : 600mm+150mm+150mm+150mm*2
    4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
